250mm Z Axis Travel Slant Bed Lathe CNC Machine for High Precision Metal Production
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | CK-50/CK-63/CK-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 500 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 2520 Mm | Travel (Z Axis)(mm): | 250 Mm |
| Dimension(L*W*H): | 5600x1800x1800 | Voltage: | 220V/380V |
| CNC Control System: | Fanuc/Siemens/GSK | Tool Post Stations: | 4 |
| Weight (KG): | 6900 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max.swing Over Bed: | 570 | Max. Swing Over Cross Slide: | 320 |
| Standard Turning Diameter: | 250 | Max.turning Diameter: | 360 |
| Max. Turning Length: | 450/750/1350/2000/3000 | Max. Diameter Of Bar: | 74 |
| Soindle Speed: | 2000 | Spindle Nose: | A2-8 |
| Spindle Bore: | 86 | Chuck Size: | 250 |
| Condition: | New | Spindle Bore(mm): | 86 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Viet Nam, Russia |
| Marketing Type: | Other | Year: | Least Date |
| Max. Spindle Speed (r.p.m): | 2000 R.p.m | Max. Turned Length (mm): | 3000 |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us | Port: | China Port |
Product Description
Products Description

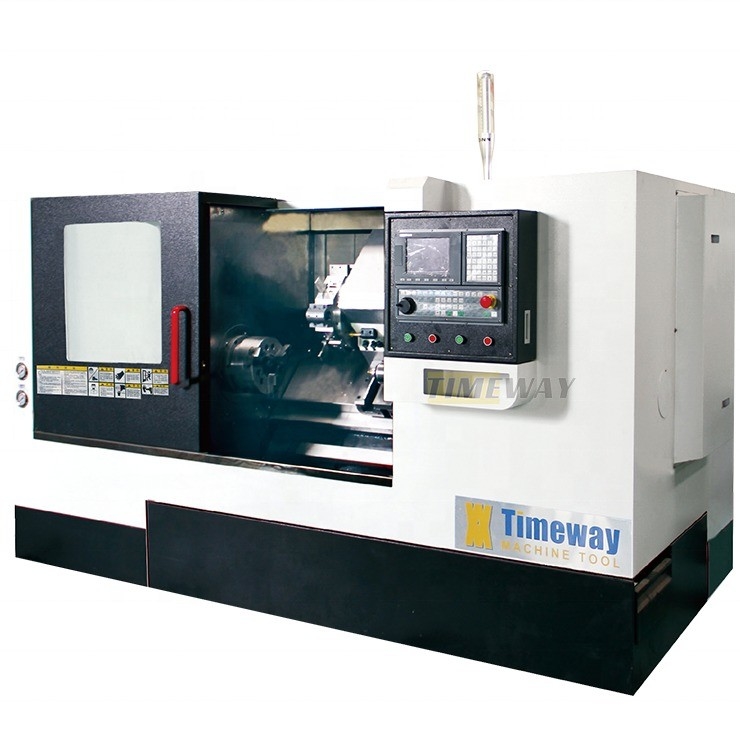

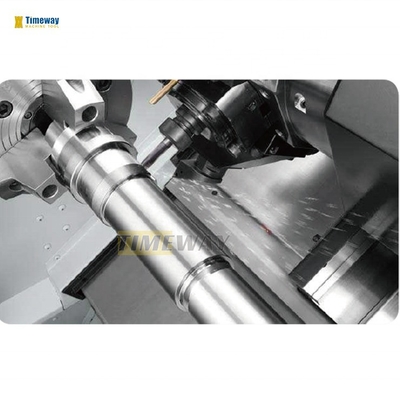

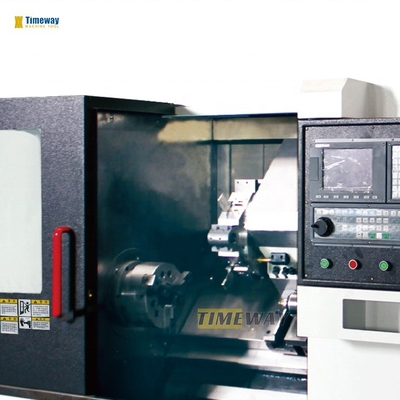

slant bed cnc lathe

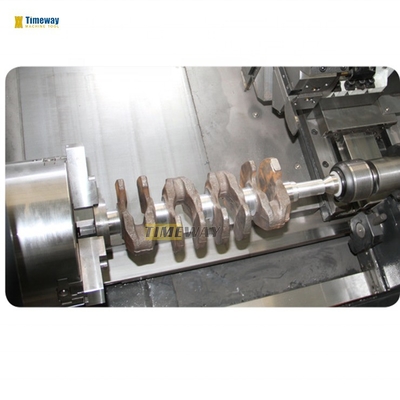

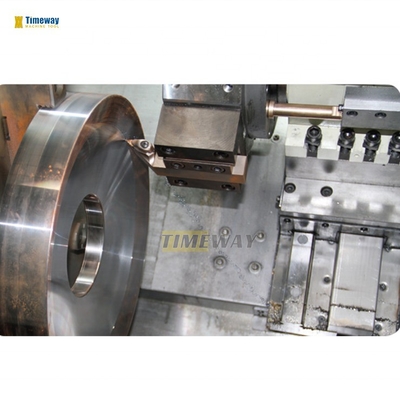

---This type slant bed CNC lathe is semi-closed loop CNC machine, which is suitable to turn various complicated shaft, sleeve and disk-like workpieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various metric, inch, modular and diametric pitch threads;
---They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
---The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
---It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches in the fields of automobile, motorcycle, engineer industry, aero-craft, home-appliance, bearing, hardware, etc.
---One-piece casting iron bed with 30° (CK-50 is 45°) slant bed. Spindle can realize stepless speed change by servo main motor drive belt transmitting torque to spindle. Spindle box without gears can reduce noise and vibration.
---Equipped standard with SIEMENS/FANUC CNC system, servo feed motors are installed on X/Z-axis for providing power.
---Precision linear guideways on X/Z-axis for high rapid feed speeds and high positioning accuracy.
---Direct drive and torsion-free, large pre-loaded ball screws with dual-preloaded spindle nuts ensure long-term accuracy.
---They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
---The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
---It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches in the fields of automobile, motorcycle, engineer industry, aero-craft, home-appliance, bearing, hardware, etc.
---One-piece casting iron bed with 30° (CK-50 is 45°) slant bed. Spindle can realize stepless speed change by servo main motor drive belt transmitting torque to spindle. Spindle box without gears can reduce noise and vibration.
---Equipped standard with SIEMENS/FANUC CNC system, servo feed motors are installed on X/Z-axis for providing power.
---Precision linear guideways on X/Z-axis for high rapid feed speeds and high positioning accuracy.
---Direct drive and torsion-free, large pre-loaded ball screws with dual-preloaded spindle nuts ensure long-term accuracy.
SPECIFICATION | UNIT | CK-50 | CK-63 | CK-80 | ||
Max.swing over bed | mm | 570 | 660 | 800 | ||
Max. swing over cross slide | mm | 320 | 500 | 640 | ||
Standard turning diameter | mm | 250 | 380 | 460 | ||
Max.turning diameter | mm | 360 | 550 | 660 | ||
Max. turning length | mm | 450/750/1350/2000/3000 | 750/1500/3000 | 750/1500/3000 | ||
Max. diameter of bar | mm | 74 | 90 | 90 | ||
Soindle speed | rpm | 2000 | 1500 | 1500 | ||
Spindle nose | A2-8 | A2-11 | A2-11 | |||
Spindle bore | mm | 86 | 112 | 112 | ||
Chuck size | mm | 250 | 380 | 380 | ||
Cross travel (X) | mm | 250 | 400 | 400 | ||
Longitudinal travel (Z) | mm | 600/1000/1500/2150/3150 | 860/1640/3200 | 860/1640/3200 | ||
X/Z-axis rapid feed speed | m/min | 20/16 | 16/16(sliding:12/12) | 12/16（sliding:12/12) | ||
Hydraulic tool post type | 100-8T | 125-12T | 125-12T | |||
Tool section size | mm | 25x25/40 | 25x25/40 | 25x25/40 | ||
Tailstock quill diameter | mm | 75/110 | 150 | 150 | ||
Tailstock quill travel | mm | 100 | 150 | 150 | ||
Tailstock guill taper | MT4/MT5 | MT5,rotary | MT5,rotary | |||
Bed structure | 45° Intearal bed | 30° Intearal bed | 30° Integral bed | |||
Guideway type | Linear/Sliding | Linear/Sliding | Linear/Sliding | |||
Working accuracy | mm | IT6 | IT6 | IT6 | ||
X-axis repositioning accuracy | mm | 0.006 | 0.008 | 0.008 | ||
Z-axis repositioning accuracy | mm | 0.008/0.01/0.013/0.017/0.021 | 0.01/0.013 | 0.01/0.013 | ||
Roughness | um | Ra1.6 | Ra1.6 | Ra1.6 | ||
Main motor power | kw | 11/15 | 22 | 22 | ||
Power supply | kva | 35 | 50 | 50 | ||
Machine dimensions (LxWxH) | mm | 2900/3100/4300/4950/5600x1800x1800 | 3700/4400/5900x2200x2200 | 3800/4400/5900x2200x2200 | ||
Machine weight | kg | 3100/3600/4600/5300/6900 | 5500/6000/7300 | 5800/6500/7800 | ||
FANUC CNC system, Electronic handwheel, Lubrication system, Cooling system, Work lamp, Pilot lamp, Protection guard, Heat exchanger, Leveling blocks & bolts, Tools & tool-box, Operation manuals. Hydraulic chuck, 8/12-station tool turret, Hydraulic tool post, | GSK, SIEMENS CNC system, Air conditioner, Tool setter, Chain type chip conveyor. |
