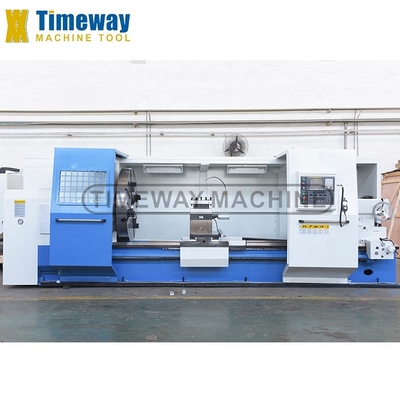

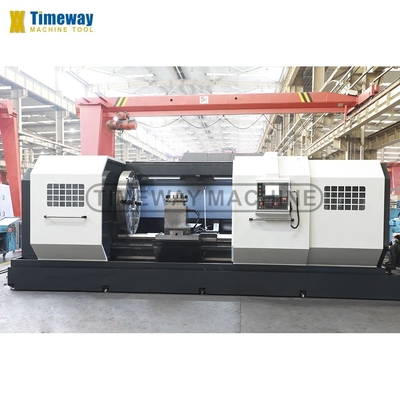

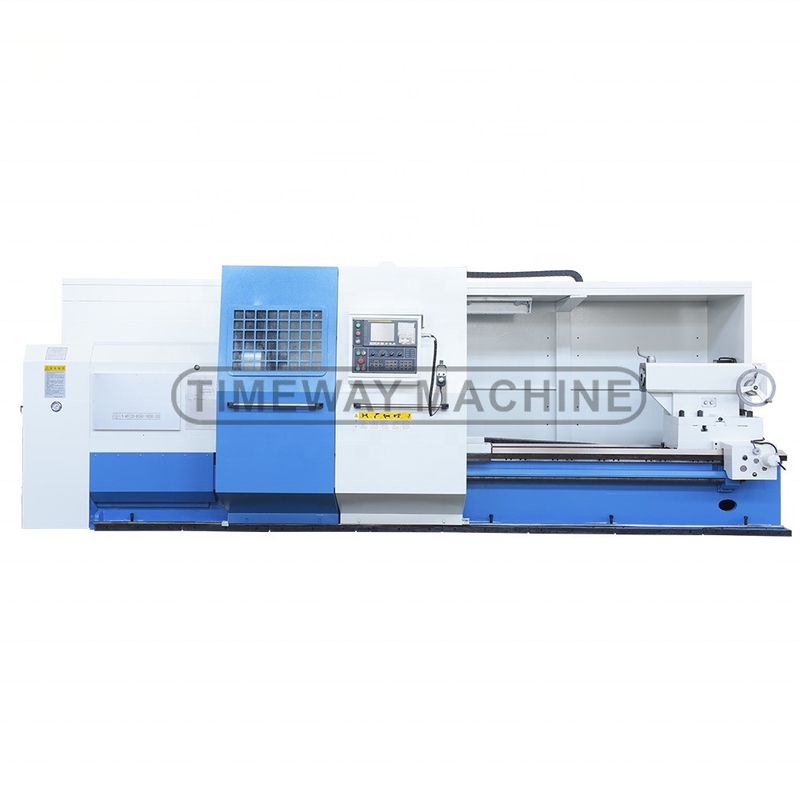

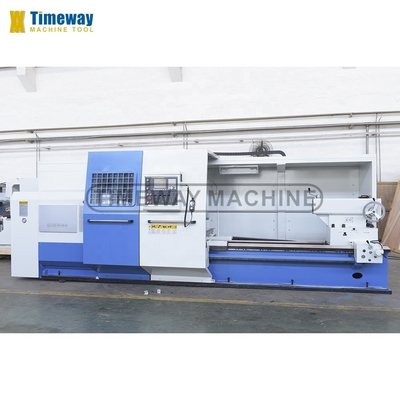

Metal CNC Turning Lathe With Big Swing Diameter Rapid Feed Speed mm/min 0 3000 mm/min
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC/Timeway |
| Model Number: | AK-1250B/3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 6000 | Width Of Bed (mm): | 755 Mm |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 570 Mm | Travel (Z Axis)(mm): | 1250 Mm |
| Positioning Accuracy (mm): | ±0.002 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 5300*2530*2150 | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 10600 |
| Warranty: | 1 Year | Key Selling Points: | Automatic, Competitive Price, Energy Saving, High Productivity, Long Service Life |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 5 - 320 R.p.m |
| Travel (Y Axis)(mm): | 3000 Mm | Spindle Taper: | ISO40 |
| Cutting Torque: | 12 N.m | Rapid Feed Speed(mm/min): | 0 - 3000 Mm/min |
| Feed Speed(mm/min): | 0 - 5000 Mm/min | Min. Time Of Tool Change(s): | 0.7 |
| Name: | CNC Heavy Duty Horizontal Lathe | Machine Type: | Flat Bed CNC Lathe |
| Color: | Customers' Requirement | After-sales Service Provided: | 1 Year |
| Max.swing Over Bed: | 1250mm | Max. Swing Over Cross Slide: | 880mm |
| Distance Between Centers: | 3000mm | Max.turning Length: | 2800mm |
| Bed Width: | 755mm | CNC Or Not: | CNC Lathe Machine |
Product Description
Product Description
CNC Heavy Duty Horizontal Lathe
Specification
Specification | Unit | AK-1250B |
Max. swing over bed | mm | 1250 |
Max.. swing over cross slide | mm | 880 |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 755 |
Loading capacity | kg | 6000 (opt: 8000) |
Spindle nose | mm | A2-15 |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 |
Center height | mm | 625 |
Chuck size (4-jaw) | mm | 1000 |
X/Z-axis min. feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/5000 |
Cross travel (X) | mm | 570 |
Tool post type | - | V4/V6/V8 |
Tool change time | s | 2.6 |
Turret repeat positioning accuracy | mm | 0.01 |
Tool section size | mm | 40x40 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
CNC system | - | FANUC/GSK/SIEMENS |
Working accuracy | - | IT6-IT7 |
Surface roughness | µm | Ra1.6 |
Main motor power | kw | 30 |
Machine weight | kg | 9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/- |
Machine length | mm | 4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/- |
Machine width | mm | 2530 |
Machine height | mm | 2150 |
Detailed Images
Chuck：
- Standard 4-jaw independent chuck to clamping special-shape parts.
4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy.

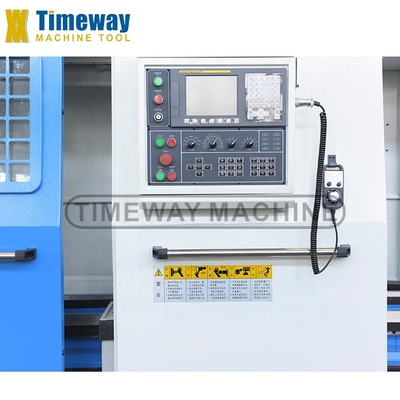

CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.

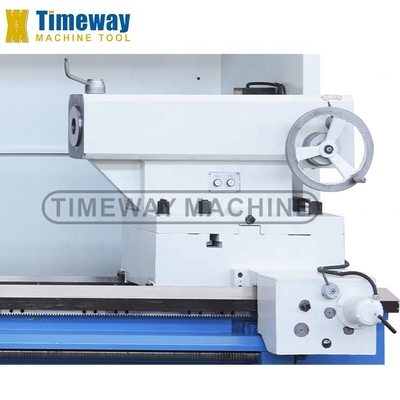

Tailstock:
Manual moving tailstock comes standard, the electric moving taisltock comes optional.
Accessories
Standard accessories:
√ FANUC/GSK/SIEMENS CNC system
√ 4-jaw chuck
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Oil gun
√ Pilot lamp
√ Automatic lubrication pump
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional accessories：
_ Electric moving tailstock
_ Steady rest
_ Follow rest
_ 6-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Full guard
_ Follow rest
_ 6-station tool-post
_ Live centers
_ Air conditioner
_ Chip conveyor
_ Full guard
