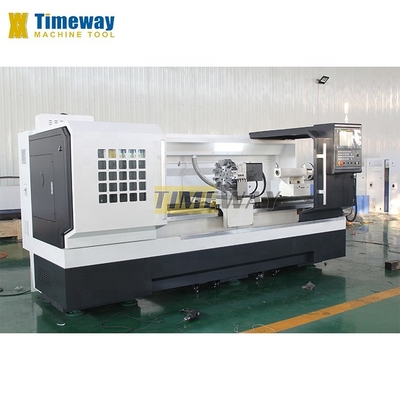

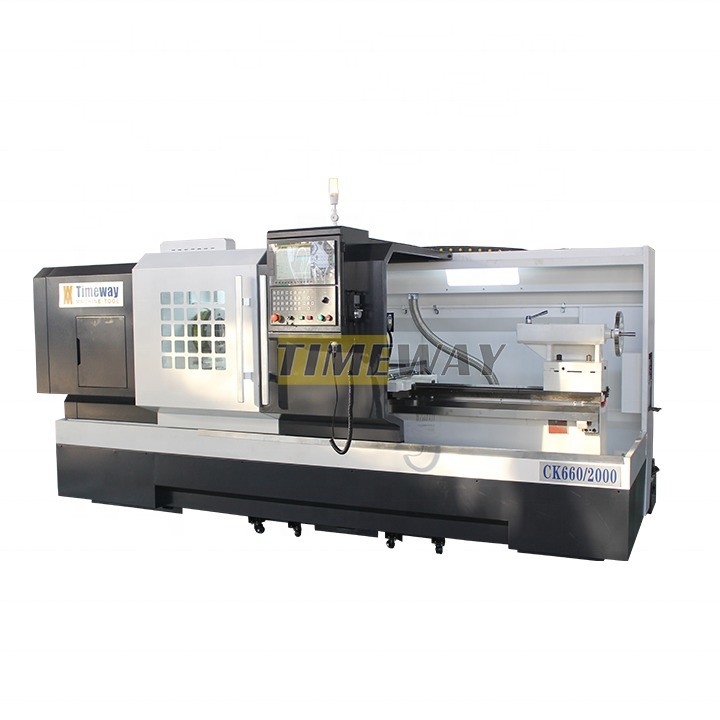

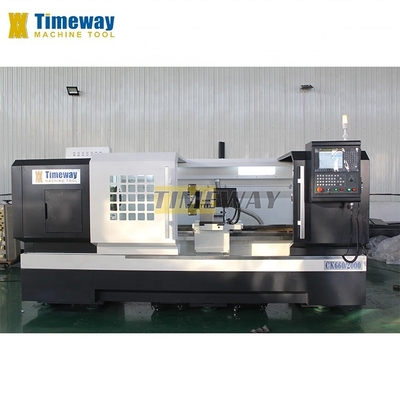

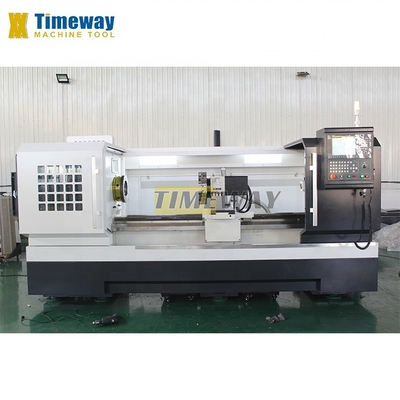

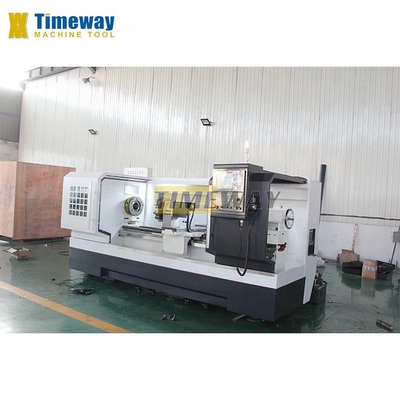

Full Function CNC Lathe for Turning Diameter up to 300mm and Max. Length of 2890mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | CK-500/CK-560/CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Light Duty |
| Width Of Bed (mm): | 110 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 305 Mm | Travel (Z Axis)(mm): | 2965 Mm |
| Voltage: | As Customer's Request | Tool Post Stations: | 12 |
| Weight (KG): | 8000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| Cnc Lathe: | Full Function CNC Lathe | Power(W): | 22kw |
| Max. Swing Diameter: | 660mm | X-travel: | 305mm |
| Y-travel: | 2065mm | Workpiece Length: | 1000mm |
| Turning Length: | 1500mm | Turning Diameter: | 300mm |
| Condition: | New | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | France, Peru, Mexico | Marketing Type: | Hot Product 2019 |
| Core Components: | Bearing, PLC | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 2500 R.p.m | Spindle Bore(mm): | 92 |
| Max. Turned Length (mm): | 2890 | Port: | China Port |
Product Description
Product Paramenters
Specifications | Units | CK-500 | CK-560 | CK-660 | ||
Max.swing over bed | mm | Φ530 | Φ560 | Φ660 | ||
Max.swing over carriage | mm | Φ310 | Φ330 | Φ430 | ||
Width of bed | mm | 405 | 405 | 405 | ||
Max.length of workpiece | mm | 750/1000/1500/2000/3000 | ||||
Max.turning length | mm | 650/900/1300/1900/2900 | ||||
Max.weight between center | - | A2-8 | A2-8 | D8 | ||
Spindle nose | mm | Φ80 | Φ80 | Φ105 | ||
Spindle bore | mm | MT7 | MT7 | Metric113 | ||
Steps of spindle speed (Manual) | - | 4 steps (variable) | 4 steps (variable) | 4 steps (variable) | ||
Range of spindle speed | rpm | 27-1630 | 27-1630 | 27-1630 | ||
Rapid feed for Z-axis | m/min | 10 | 10 | 10 | ||
Rapid feed for X-axis | m/min | 8 | 8 | 8 | ||
Max.travel of Z-axis | mm | 720/970/1470/1970/2970 | ||||
Max.travel of X-axis | mm | 300 | 320 | 365 | ||
Min.input | mm | 0.001 | 0.001 | 0.001 | ||
Tool post stations | - | V4/V6 | V4/V6 | V4/V6 | ||
Tool cross section | mm | 32x32 | 32x32 | 32x32 | ||
External diameter of tailstock sleeve | mm | Φ75 | Φ75 | Φ75 | ||
Taper of bore of tailstock sleeve | - | MT5 | MT5 | MT5 | ||
Max.traverse of tailstock sleeve | mm | 150 | 150 | 150 | ||
Power of main motor | kw | 7.5 | 7.5 | 11 | ||
Power of cooling pump | kw | 0.09 | 0.09 | 0.09 | ||
Overall dimensions(L x W x H) | mm | 2250/2500/3000/3500/4500x1250x1580 | ||||
Machine weight | kg | 2700/3000/3600/4100/4700 | 2800/3100/3700/4300/5300 | |||
Working accuracy | mm | IT6 | IT6 | IT6 | ||
Roughness | µm | Ra0.8 | Ra0.8 | Ra0.8 | ||
Bed structure | - | 45° | 45° | 45° | ||
CNC system | - | FANUC or SIEMENS | FANUC or SIEMENS | FANUC or SIEMENS | ||
Machine length | mm | 2875/3415/3440 | 2270 | 3000/3380/4550/4960/6160 | ||
Machine width & height | mm | 1500x1500 | 1470x1470 | 1545x1950 | ||
Machine weight | tons | 3.5/4/4.5 | 4.5 | 5/5.5/6.5/7.5/8.5 | ||
Company Introduction
Package & Transportation
Customers Visited
Exhibition & Training
Export Cases
Our Team
FAQ
Q: Why choose TIMEWAY MACHINE? A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; 2) Irrevocable LC at sight; 3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
