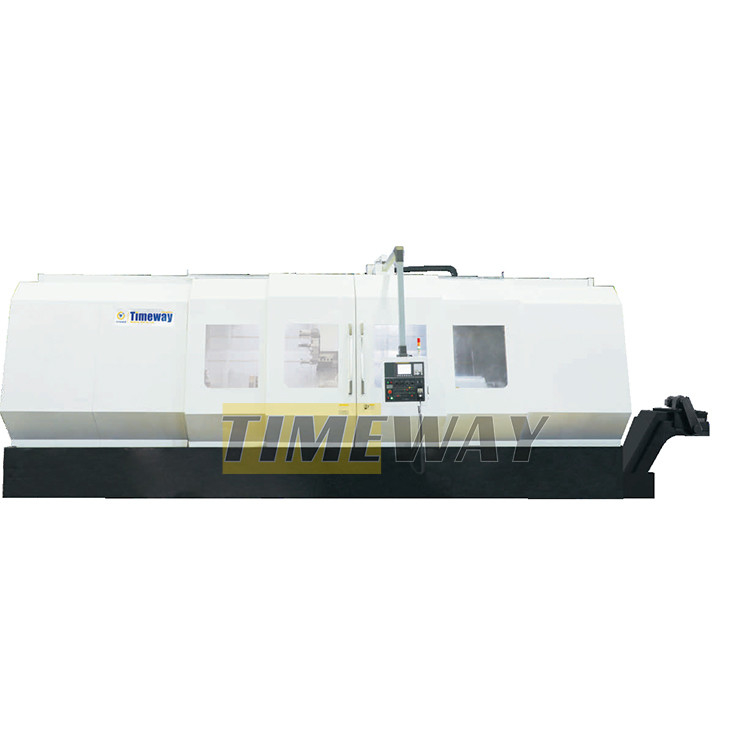

Automatic High Precision Metal Slant Bed CNC Lathe Machine with 2 Axes and 2 Spindles
Product Details:
| Place of Origin: | China |
| Brand Name: | timeway |
| Model Number: | AK-35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 200 Mm | Spindle Motor Power(kW): | 22/30 |
| No. Of Spindles: | 2 | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 530 Mm |
| Dimension(L*W*H): | 2875xx1500x1500 | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 6 |
| Weight (KG): | 3500 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max.swing Over Bed: | 660mm | Max. Turning Diameter: | 550mm |
| Max. Length Of Workpiece: | 3000mm | Cross Travel (X): | 305mm |
| Longitudinal Travel (Z): | 855mm | X/Z-axis Feed Speed: | 1260mm/min |
| Main Motor Power: | 30kw | Condition: | New |
| Showroom Location: | Italy, France, Peru, Thailand | Year: | New |
| Max. Spindle Speed (r.p.m): | 660 R.p.m | Spindle Bore(mm): | 92 |
| Max. Turned Length (mm): | 2920 | Applicable Industries: | Manufacturing Plant, Other |
| Marketing Type: | New Product 2023 | Core Components: | Motor, Other |
| Port: | China Port | ||
Product Description
Products Description
Slant bed CNC lathe
Technical Parameter
Parameter | Unit | A-25 | AK-35 |
Max.swing over bed | mm | 520 | 660 |
Max. turning diameter | mm | 420 | 550 |
Max. length of workpiece | mm | 625/1000/1500/2000/3000 | 890/1640/2000/3000 |
Max. turning length | mm | 530/905/1405/1905/2905 | 780/1530/1890/2890 |
Cross travel (X) | mm | 230 | 305 |
Longitudinal travel (Z) | mm | 590/965/1465/1965/2965 | 855/1605/1965/2965 |
X-axis rapid feed speed | m/min | 12 | 12 |
Z-axis rapid feed speed | m/min | 15 | 15 |
X/Z-axis feed speed | mm/min | 1260 | 1260 |
Spindle speed range | rpm | 35-3500 | 25-2500 |
Spindle nose | - | A2-8 | A2-8 |
Spindle bore | mm | 87 | 92 |
Hydraulic chuck size | inch | 10" | 12" |
Front bearing inner diameter | mm | 130 | 160 |
Tool post type | - | H12 | H12 |
Tool section size (turning) | mm | 25x25 | 25x25 |
Tool section size (boring) | mm | 40 | 50 |
Tool change time | sec | 0.3 | 1 |
Tailstock travel | mm | 490/865/1365/1865/2865 | 706/1456/1816/2816 |
Tailstock quill diameter | mm | 85 | 110 |
Tailstock quill taper | - | MT5 | MT5 |
Tailstock quill travel | mm | 80 | 100 |
Main motor power | kw | 15/18.5 | 22/30 |
Total power | kw | 30 | 46 |
Working accuracy | mm | IT6 | IT6 |
Roughness | µm | Ra0.8 | Ra0.8 |
Bed structure | - | 45° | 45° |
Machine length | mm | 3000/3380/4550/4960/6160 | 3620/4725/5825/7000 |
Machine width & height | mm | 1545x1950 | 1820x2130 |
Machine weight | tons | 5/5.5/6.5/7.5/8.5 | 8/10/11.5/15.5 |
Standard accessories: Optional accessories:
FANUC Hydraulic chuck Hydraulic turret Hydraulic tailstock Electronic handwheel Lubrication system Cooling system Work lamp Pilot lamp Full protection guard Heat exchanger Chip conveyor Leveling blocks & bolts Tools & tool-box Operation manuals | SIEMENS CNC system Hydraulic hollow chuck Air conditioner Tool setter Chip conveyor |

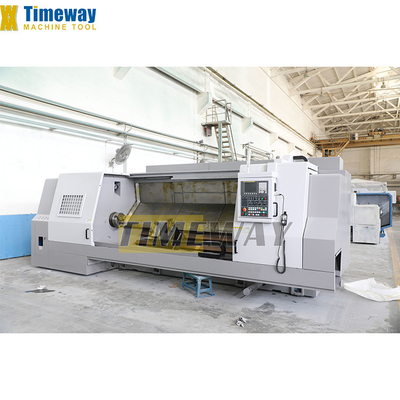

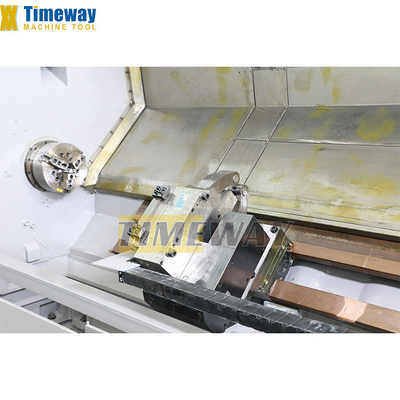

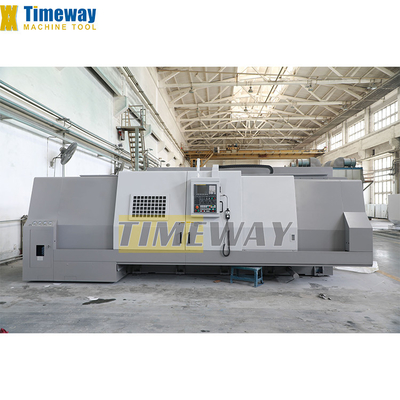

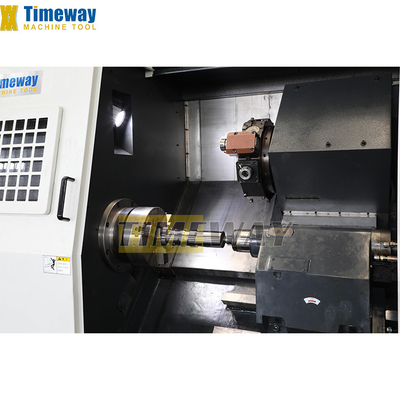

Detail Images
