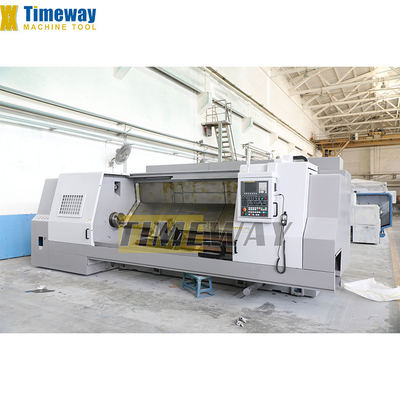

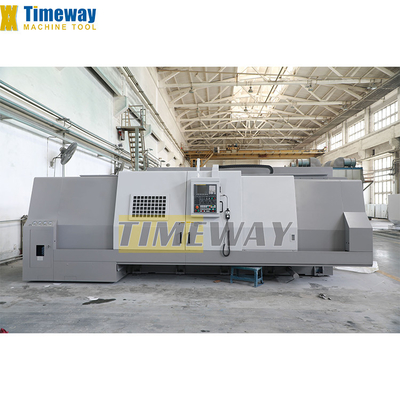

4500 r.p.m CNC Lathe Machine for Inner Hole Outer Circle and Arc Surface Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | timeway |
| Model Number: | AK-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | TURNING CENTER | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 1000 |
| Width Of Bed (mm): | 200 Mm | Spindle Motor Power(kW): | 17 |
| No. Of Spindles: | 2 | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 530 Mm |
| Positioning Accuracy (mm): | IT6 | Dimension(L*W*H): | 2875xx1500x1500 |
| Voltage: | 220V/380V | CNC Control System: | FANUC |
| Tool Post Stations: | 6 | Weight (KG): | 3500 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max.swing Over Bed: | 400mm |
| Max. Turning Diameter: | 300mm | Max. Length Of Workpiece: | 600mm |
| Cross Travel (X): | 210mm | Longitudinal Travel (Z): | 530mm |
| X/Z-axis Feed Speed: | 1260mm/min | Main Motor Power: | 7.5kw |
| Total Power: | 17kw | Working Accuracy: | IT6 |
| Condition: | New | Showroom Location: | Italy, France, Peru, Thailand |
| Year: | New | Max. Spindle Speed (r.p.m): | 4500 R.p.m |
| Spindle Bore(mm): | 50 | Max. Turned Length (mm): | 950 |
| Applicable Industries: | Manufacturing Plant, Other | Marketing Type: | New Product 2023 |
| Core Components: | Motor, Other | Port: | China Port |
Product Description
Products Description

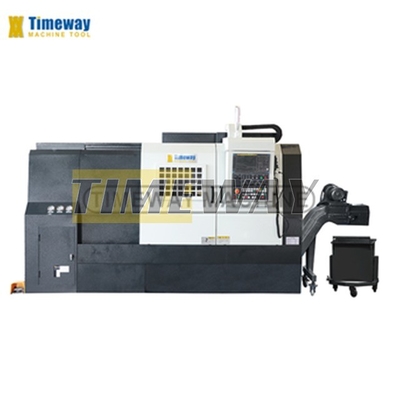

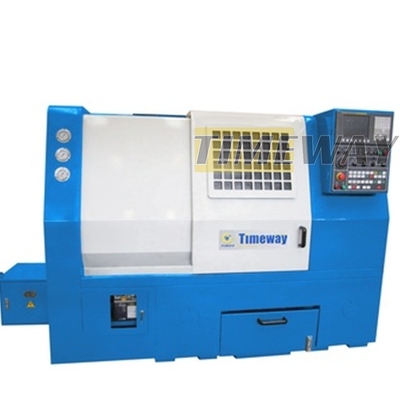

Slant bed CNC lathe
Technical Parameter
Specifications | Unit | AK-15 | AK-25 |
Swing over bed | mm | 440 | 520 |
Max. dia. cutting | mm | 300 | 420 |
Max. length of workpiece | mm | 600 | 625/1000/1500 /2000/3000 |
Max. turning length | mm | 450 | 530/905/1405 /1905/2905 |
X-axis travel | mm | 180 | 230 |
Z-axis travel | mm | 480 | 590/965/1465/1965/2965 |
Rapid travel of X | m/min | 20 | 12 |
Rapid travel of Z | m/min | 24 | 15 |
X/Z feed speed | mm/min | 1260 | 1260 |
Spindle speed | rpm | 50-4500 | 35-3500 |
Spindle power | kw | 11/9 | 18.5/15 |
Spindle nose | - | A2-6 | A2-8 |
Spindle bore (Dia.) | mm | 62 | 87 |
Size of chuck | inch | 8 | 10 |
Front bearing dia. | mm | 100 | 130 |
No. of stations | - | 8 | 12 |
Indexing time | s | 0.72 | 0.3 |
Size of turret | mm | 25x25 | 25x25 |
Dia. of bar shank | mm | 40 | 40 |
Max. travel | mm | 460 | 490/865/1365/1865/2865 |
Quill Dia. | mm | 80 | 85 |
Quill taper hole | - | MT4 | MT5 |
Quill travel | mm | 130 | 80 |
CNC System | - | FANUC | FANUC |
Main power | kw | 25 | 30 |
Weight | t | 4.5 | 5/5.5/6.5/7.5/8.5 |
Length | mm | 2270 | 3000/3380/4550/4960/6160 |
Width | mm | 1470 | 1545 |
Height | mm | 1650 | 1950 |
Accuracy/roughness | µm | IT6/Ra0.8 | IT6/Ra0.8 |
Standard accessories: Optional accessories:
FANUC Hydraulic chuck Hydraulic turret Hydraulic tailstock Electronic handwheel Lubrication system Cooling system Work lamp Pilot lamp Full protection guard Heat exchanger Chip conveyor Leveling blocks & bolts Tools & tool-box Operation manuals | SIEMENS CNC system Hydraulic hollow chuck Air conditioner Tool setter Chip conveyor |

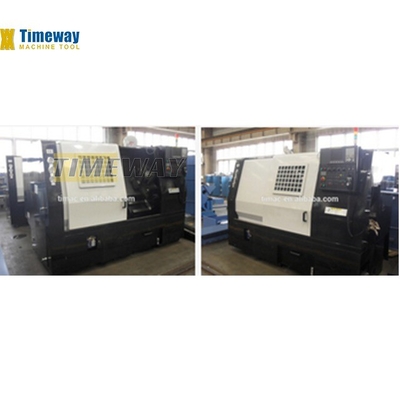

Detail Images
