***This type slant bed CNC lathe is semi-closed loop CNC machine, which is suitable to turn various complicated shaft, sleeve and disk-like work pieces, such as turning of internal and external cylindrical, conical and other circumgyration surface as well as various metric, inch, modular and diametric pitch threads;
***They can also be used for oil grooves and keyways broaching, end-facing, grooving and chamfering, etc;
***The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions;
***It is especially suitable for the machining of high precision work-pieces, and also widely used to machining parts in batches in the fields of automobile, motorcycle, engineer industry, aero-craft, home-appliance, bearing, hardware, etc
 |
SIEMENS Control System CNC Lathe Machine CK-50 for Superior Precision and Durability
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | CK-50 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $55,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 570 Mm | Spindle Motor Power(kW): | 11/15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 250 Mm | Travel (Z Axis)(mm): | 3150 Mm |
| Dimension(L*W*H): | 5600*1800*1800mm | CNC Control System: | FANUC |
| Tool Post Stations: | 8 | Weight (KG): | 6900 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | Slant Bed CNC Lathe |
| Machine Type: | Slant Lathe Machine | CNC Or Not: | CNC Lathe Machine |
| Control System: | SIEMENS GSK FANUC (optional) | Model: | CK-50 |
| Color: | Customers' Requirement | Spindle Speed: | 2000RPM |
| Spindle Bore: | 86mm | Max. Swing Over Bed: | 570mm |
| Max. Processing Length: | 3000mm | Condition: | New |
| Spindle Bore(mm): | 86 | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Core Components: | Bearing, Motor, Pump, Gear, Engine |
| Max. Spindle Speed (r.p.m): | 2000 R.p.m | Marketing Type: | Hot Product 2022 |
| Port: | China Port | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Products Description

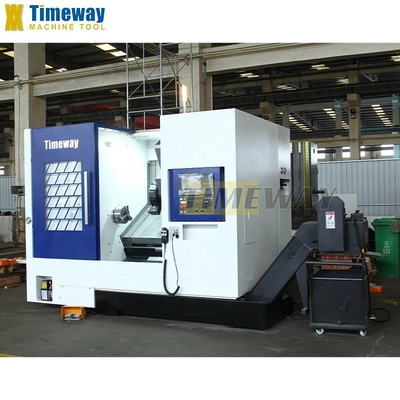

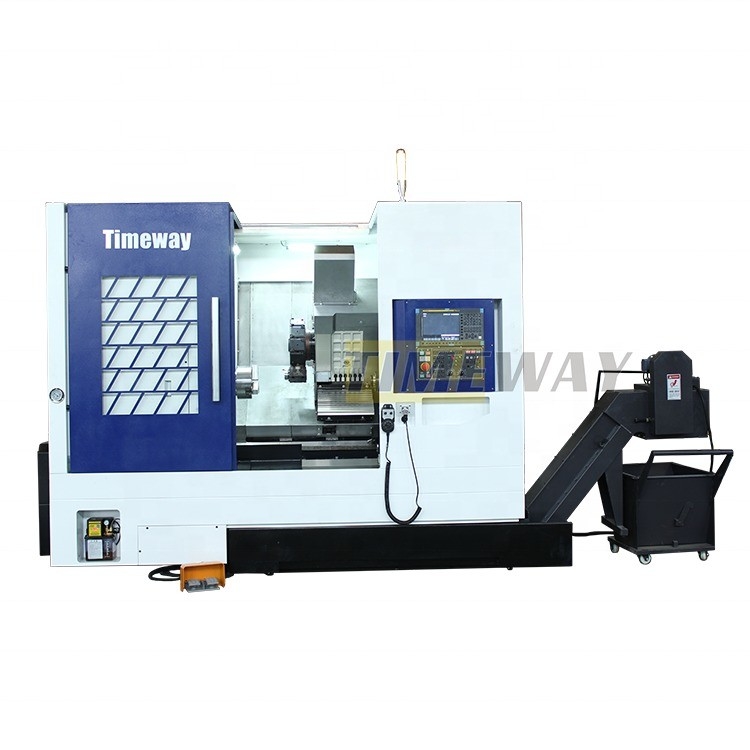

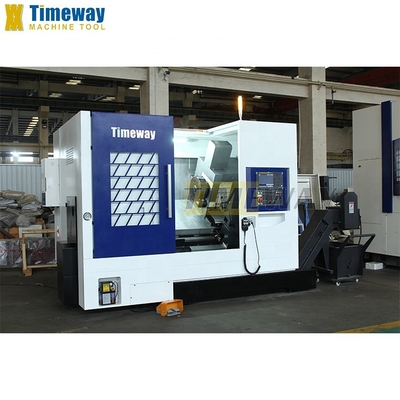

Slant bed CNC lathe
Features:
Technical Parameter
Specification | Unit | CK-50 |
Max. Swing over bed | mm | 570 |
Max. Swing over cross slide | mm | 320 |
Standard turning diameter | mm | 250 |
Max. Turning diameter | mm | 360 |
Max. Turning length | mm | 450/750/1350/2000/3000 |
Spindle speed | rpm | 2000 |
Spindle nose | - | A2-8 |
Spindle bore | mm | 86 |
Chuck size | mm | 250 |
Cross travel (X) | mm | 250 |
Longitudinal travel (Z) | mm | 600/1000/1500/2150/3150 |
X/Z-axis rapid feed speed | m/min | 20/16 |
Hydraulic tool post type | - | 100-8T |
Tool section size | mm | 25x25/Φ40 |
Tailstock quill diameter | mm | 75/110 |
Tailstock quill travel | mm | 100 |
Tailstock quill taper | - | MT4/MT5 |
Bed structure | - | 45° integral bed |
X-axis repositioning accuracy | mm | 0.006 |
Z-axis repositioning accuracy | mm | 0.008/0.01/0.013/0.017/0.021 |
Roughness | - | Ra1.6μm |
Main motor power | kw | 11/15 |
Power supply | kva | 35 |
Machine dimensions (LxWxH) | mm | 2900/3100/4300/4950/5600x1800x1800 |
Machine weight | kg | 3100/3600/4600/5300/6900 |
Accessories
Standard accessories:

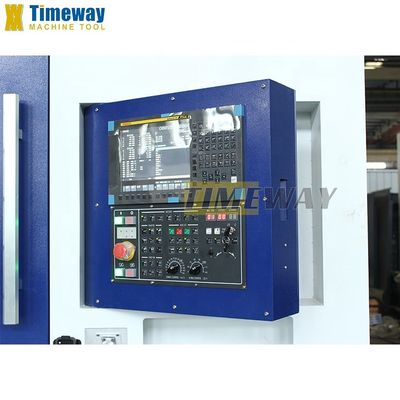

* FANUC CNC system

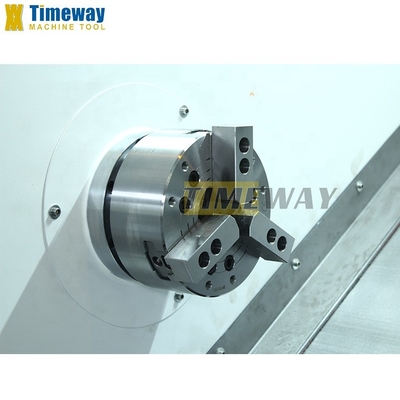

* Hydraulic chuck
* 8/12-station tool turret
* Hydraulic tool post
* Electronic handwheel
* Lubrication system
* Cooling system
* Work lamp
* Pilot lamp
* Protection guard
* Heat exchanger
* Leveling blocks & bolts
* Tool & tool-box
* Operation manuals
* 8/12-station tool turret
* Hydraulic tool post
* Electronic handwheel
* Lubrication system
* Cooling system
* Work lamp
* Pilot lamp
* Protection guard
* Heat exchanger
* Leveling blocks & bolts
* Tool & tool-box
* Operation manuals
Optional accessories:
* GSK,SIEMENS CNC system
* Air conditioner
* Tool setter
* Chain type chip conveyor
* Tool setter
* Chain type chip conveyor
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
