-VTC series CNC vertical lathe is an automatic CNC machining machine for machining the inner and outer cylindrical surface, cone surface, end surface, groove and chamfer of the parts. The machine is especially suitable for processing of plate type workpiece like the vehicle brake hub, wheel drums, clutch platens, flywheel casings, etc.
-Single-column vertical guide rail structure, vertical column, base and sliding seat are all made of high-grade gray cast iron.
-Column and slide rail are both high-frequency quenching, and the moving surface of the guide rail is plasticized to ensure long-term use,stability and accuracy retention.
-The machine spindle adopts a large torque spindle servo motor, which is suitable for strong cutting; it is also suitable for semi-finishing and finishing of parts. The spindle adopt imported NSK bearings with high rotation precision, low heat generation and low noise.
- The X/Z axis feed is automatically fed by the servo motor. The Z-axis is nitrogen balanced, and the structure is simple and reliable, and the failure rate is low.
-The X/Z axis adopts precision ball screw and imported screw special bearings to meet the requirements of high precision and high rigidity cutting.
-The spindle bearing of the machine is lubricated by thin oil, and the guide rail is lubricated by electric lubricating oil pump.

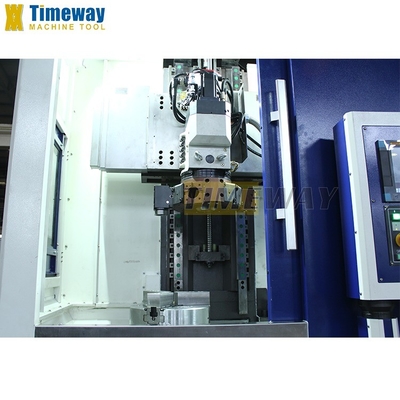

-The machine tool post adopts the electric tool post or gang type tool plate, with high accuracy and efficiency.
- Special tooling, hydraulic chuck, cooling pump, chip conveyor and chip flushing device can be configured according to user requirements.
 |

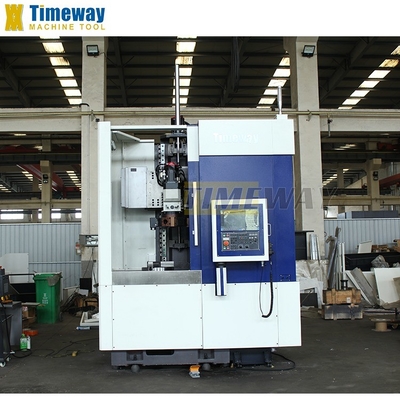

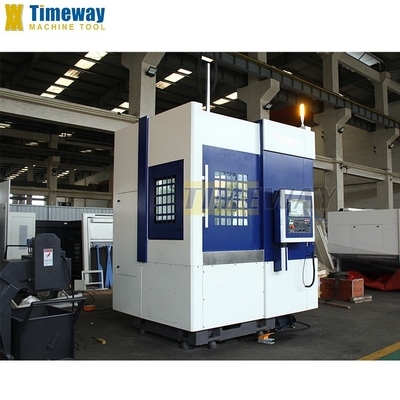

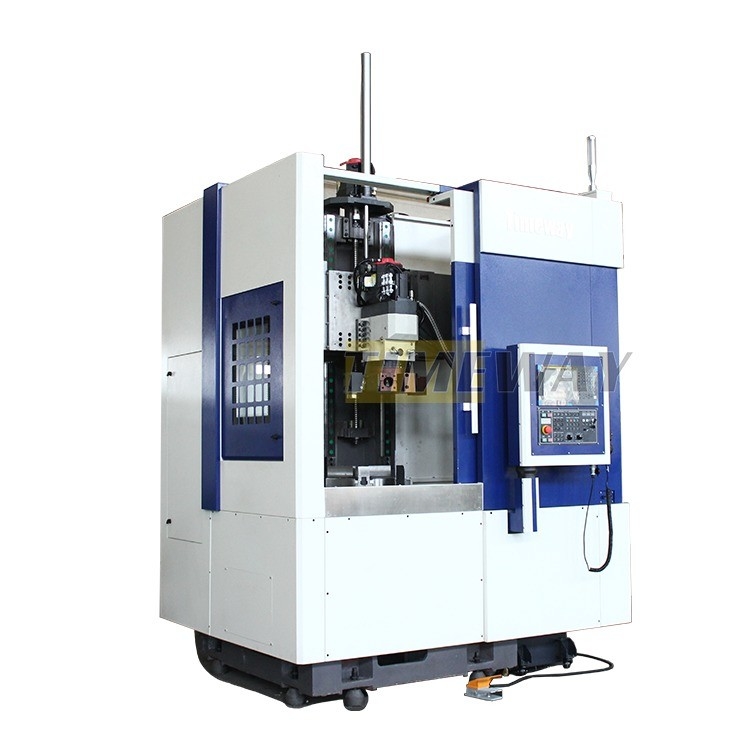

Get VTC630 CNC Vertical Lathe with Chuck Size 12'' / 15'' and Voltage 220v/380v
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | VTC630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 630 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 600 Mm |
| Spindle Motor Power(kW): | 2.3 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 630 Mm |
| Travel (Z Axis)(mm): | 600 Mm | Voltage: | 220v/380v |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 5500 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Turning Lathe | Machine Type: | Vertical Lathe |
| CNC Or Not: | CNC Lathe Machine | Model: | VTC630 |
| Chuck Size: | 12'' / 15'' | Color: | Customers' Requirement |
| X/Z Axis Travel: | 630/600mm | Max Turning Diameter: | 630mm |
| Max.swing Over Bed: | 700mm | Main Motor Power: | 15/18.5kw |
| Condition: | New | Spindle Bore(mm): | Other |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R |
| Core Components: | Bearing, Motor, PLC, Engine | Max. Spindle Speed (r.p.m): | 1000 R.p.m |
| Max. Turned Length (mm): | 630 | Marketing Type: | Hot Product |
| Port: | China Port | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Overview
Vertical CNC Lathe
Features:
Specification
Specifications | Unit | VTC630 |
Worktable diameter | mm | 630 |
Max. turning diameter | mm | 700 |
Worktable speed range | rpm | 10-1000 |
Tool-post corss travel | mm | 630 |
Tool-post vertical travel | mm | 600 |
Tool-post rapid feed speed | m/min | 10/15 |
Tool-post feed speed | mm/min | 0.1-1000 |
Tool post type | - | Gang-type/V4 |
Tool section size | mm | 32x32 |
X/Z-axis positioning accuracy | mm | 0.01 |
X/Z-axis repositioning accuracy | mm | 0.008 |
Main motor power | kw | 15/18.5 |
X-axis feed motor power | kw | 2.3 |
Z-axis feed motor power | kw | 2.3 (brake) |
X/Z-axis feed motor torque | NM | 15 |
Machine weight | kg | 5500 |
Accessories
STANDARD ACCESSORIES:

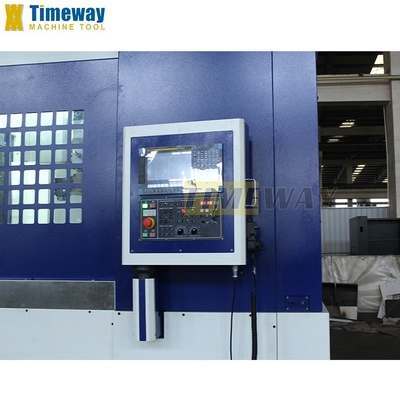

FANUC CNC system
Electric tools turret
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Work lamp
Pilot lamp
Protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals
OPTIONAL ACCESSORIES:
SIEMENS CNC system
Air conditioner
Chain type chip conveyor
CNC system Hydraulic chuck
CNC system Hydraulic chuck
Nitrogen balancer
