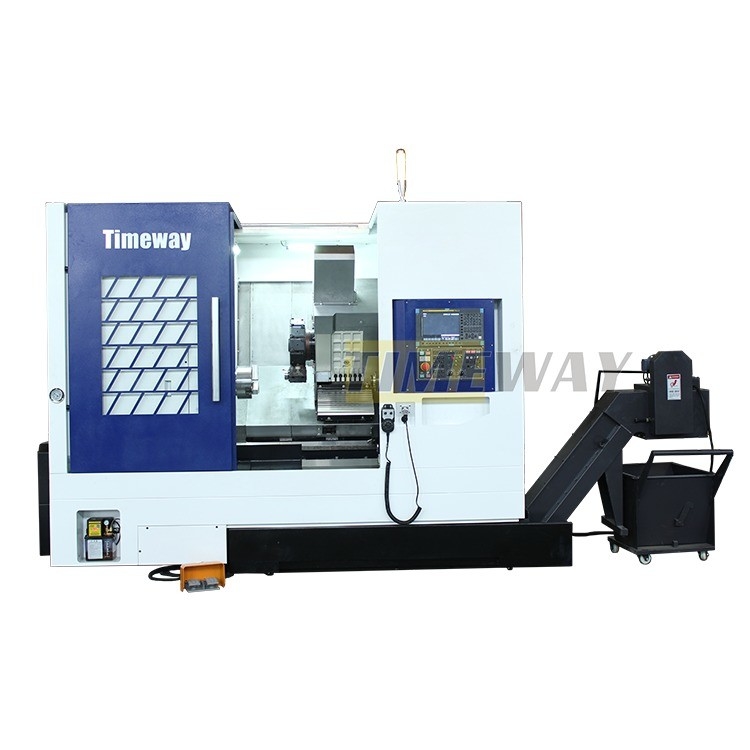

2023 Year Timeway CNC Lathe Machine with 860 mm Z Axis Travel and Slant Bed Type
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-63 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $48,800.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 750 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 4000 | Width Of Bed (mm): | 200 Mm |
| Spindle Motor Power(kW): | 22 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 400 Mm |
| Travel (Z Axis)(mm): | 860 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.001 | Dimension(L*W*H): | 3700*2200*2200 |
| Voltage: | 220V/380V,50HZ | CNC Control System: | FANUC |
| Tool Post Stations: | 12, 8 | Weight (KG): | 5500 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Slant Bed CNC Lathe | Product Name: | CNC Lathe Mechine |
| Keyword: | Cnc Metal Lathe Machine | Function: | Metal Turning |
| Precision: | High Precision Machine | Max. Swing Diameter: | 660mm |
| Max. Turning Length: | 750 | Color: | Customer Optional |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail |
| Showroom Location: | Egypt, Brazil, Russia | Marketing Type: | Hot Product 2019 |
| Core Components: | Bearing, Motor | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 1500 R.p.m | Spindle Bore(mm): | 112 |
| Max. Turned Length (mm): | 750 | Port: | China Port |
Product Description
Product Description
Slant Bed CNC Lathe
Features:
- The machine adopts a 45° inclined layout, and the bed is a tubular hollow structure, which greatly improves the bending and torsional rigidity of the machine tool during operation. The advanced bed provides a strong guarantee for the high precision of the whole machine.
- It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
- The machine adopts a 45° inclined layout, and the bed is a tubular hollow structure, which greatly improves the bending and torsional rigidity of the machine tool during operation. The advanced bed provides a strong guarantee for the high precision of the whole machine.
- It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
Specification
Specification | Unit | CK-50 | CK-63 |
Max. swing over bed | mm | 570 | 570 |
Max. swing over cross slide | mm | 320 | 320 |
Standard turning diameter | mm | 250 | 250 |
Max. turning diameter | mm | 360 | 360 |
Max. turning length | mm | 450/750/1350/2000/3000 | 450/750/1350/2000/3000 |
Max. diameter of bar | mm | 74 | 74 |
Spindle speed | rpm | 2000 | 2000 |
Spindle nose | - | A2-8 | A2-8 |
Spindle bore | mm | 86 | 86 |
Chuck size | mm | 250 | 250 |
Cross travel (X) | mm | 250 | 250 |
Longitudinal travel (Z) | mm | 600/1000/1500/2150/3150 | 600/1000/1500/2150/3150 |
X/Z-axis rapid feed speed | m/min | 20/16 | 20/16 |
Hydraulic tool post type | - | 100-8T | 100-8T |
Tool section size | mm | 25x25/Φ40 | 25x25/Φ40 |
Tailstock quill diameter | mm | 75/110 | 75/110 |
Tailstock quill travel | mm | 100 | 100 |
Tailstock quill taper | - | MT4/MT5 | MT4/MT5 |
Bed structure | - | 45° Integral bed | 45° Integral bed |
Guideway type | - | Linear/Sliding | Linear/Sliding |
Working accuracy | mm | IT6 | IT6 |
X-axis repositioning accuracy | mm | 0.006 | 0.006 |
Z-axis repositioning accuracy | mm | 0.008/0.01/0.013/0.017/0.021 | 0.008/0.01/0.013/0.017/0.021 |
Roughness | um | Ra1.6 | Ra1.6 |
Main motor power | kw | 11/15 | 11/15 |
Power supply | kva | 35 | 35 |
Machine dimensions (LxWxH) | mm | 2900/3100/4300/4950/5600x1800x1800 | 3700/4400/5900x2200x2200 |
Machine weight | kg | 3100/3600/4600/5300/6900 | 5500/6000/7300 |

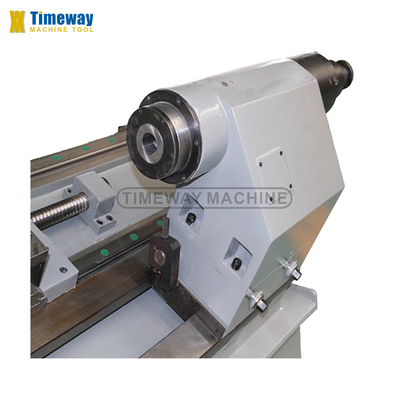

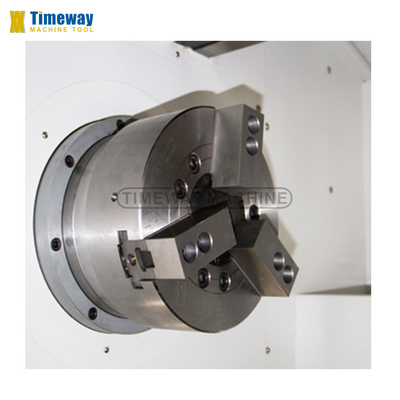

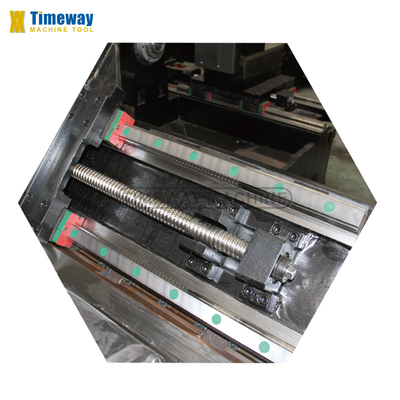

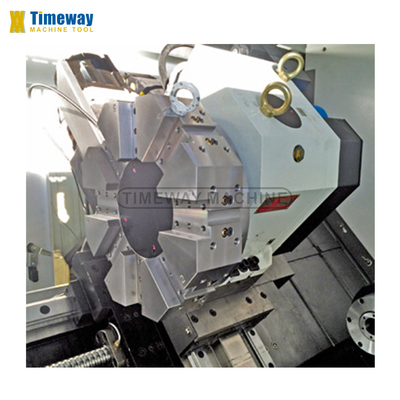

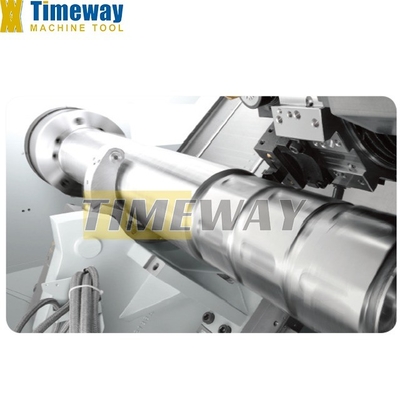

Detailed Images
