Timway FANUC CNC Lathe Machine Z-axis Rapid Feed Speed 15m/min 3000mm Workpiece Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-35 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 0 | Width Of Bed (mm): | 0 Mm |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 530 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 2875*1500*1500mm | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 6 |
| Weight (KG): | 3500 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 25 - 2500 R.p.m | Travel (Y Axis)(mm): | 0 Mm |
| Spindle Taper: | BT40 | Cutting Torque: | 0 N.m |
| Rapid Feed Speed(mm/min): | 12000 - 15000 Mm/min | Feed Speed(mm/min): | 0 - 1260 Mm/min |
| Min. Time Of Tool Change(s): | 0.7 | Max.swing Over Bed: | 660mm |
| Max. Turning Diameter: | 550mm | Max. Length Of Workpiece: | 890/1640/2000/3000mm |
| Max. Turning Length: | 780/1530/1890/2890mm | Cross Travel (X): | 305mm |
| Longitudinal Travel (Z): | 855/1605/1965/2965mm | X-axis Rapid Feed Speed: | 12m/min |
| Z-axis Rapid Feed Speed: | 15m/min | X/Z-axis Feed Speed: | 1260mm/min |
| Spindle Speed Range: | 25-2500rpm | ||
Product Description
Product Description

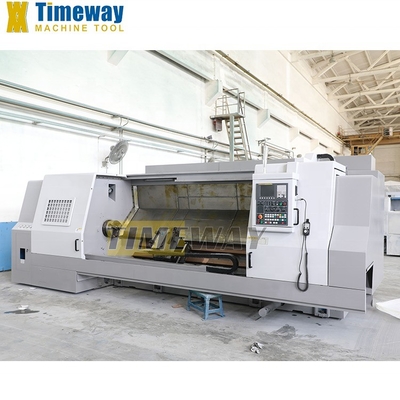

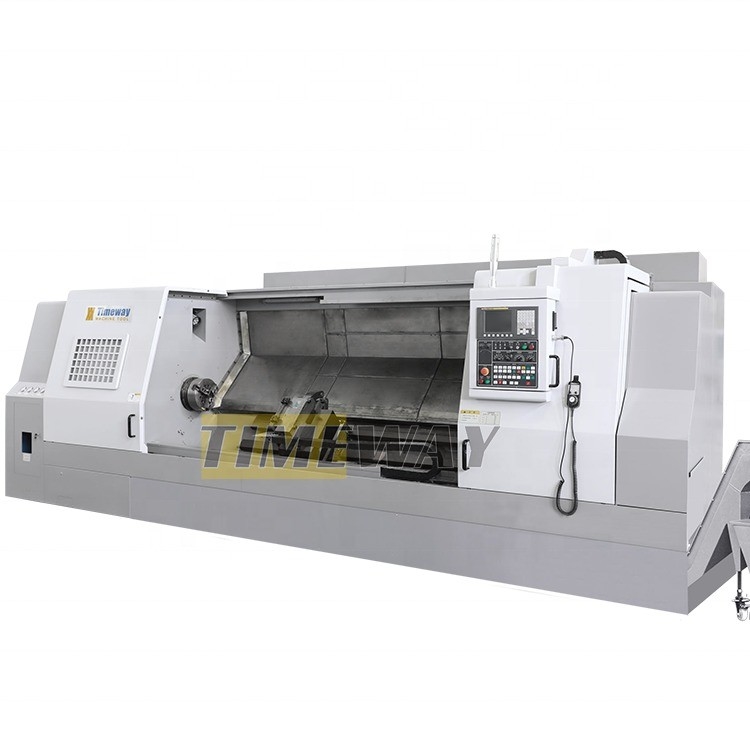

Slant Bed CNC Lathe
Features:
1.The bed adopts the box-shaped structure, one-piece moulding casting technology, and 45-degree slant.
2.The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions.
3.Main motor uses FANUC wide-area high-performance AC servo motor, stepless speed, spindle box without gear structure, high speed and low noise.
4.High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch, it is easier to quickly clamping the workpieces.
5.X/Z-axis transmission system uses high-precision ball screw driven by FANUC AC motor directly, there are no belt and gear drive,avoided the backlash and vibration generated.
2.The unique construction developed using FEA techniques to provide maximum stiffness under the heaviest cutting conditions.
3.Main motor uses FANUC wide-area high-performance AC servo motor, stepless speed, spindle box without gear structure, high speed and low noise.
4.High quality hydraulic solid chuck and high-speed fuel cylinder, and equipped with foot switch, it is easier to quickly clamping the workpieces.
5.X/Z-axis transmission system uses high-precision ball screw driven by FANUC AC motor directly, there are no belt and gear drive,avoided the backlash and vibration generated.
Specification
Specifications | Unit | AK-35 |
Max.swing over bed | mm | 660 |
Max. turning diameter | mm | 550 |
Max. length of workpiece | mm | 890/1640/2000/3000 |
Max. turning length | mm | 780/1530/1890/2890 |
Cross travel (X) | mm | 305 |
Longitudinal travel (Z) | mm | 855/1605/1965/2965 |
X-axis rapid feed speed | m/min | 12 |
Z-axis rapid feed speed | m/min | 15 |
X/Z-axis feed speed | mm/min | 1260 |
Spindle speed range | rpm | 25-2500 |
Spindle nose | - | A2-8 |
Spindle bore | mm | 92 |
Hydraulic chuck size | inch | 12" |
Front bearing inner diameter | mm | 160 |
Tool post type | - | H12 |
Tool section size (turning) | mm | 25x25 |
Tool section size (boring) | mm | 50 |
Tool change time | sec | 17 |
Tailstock travel | mm | 06/1456/1816/2816 |
Tailstock quill diameter | mm | 110 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 100 |
Main motor power | kw | 22/30 |
Total power | kw | 46 |
Working accuracy | mm | IT6 |
Roughness | µm | Ra0.8 |
Bed structure | - | 45° |

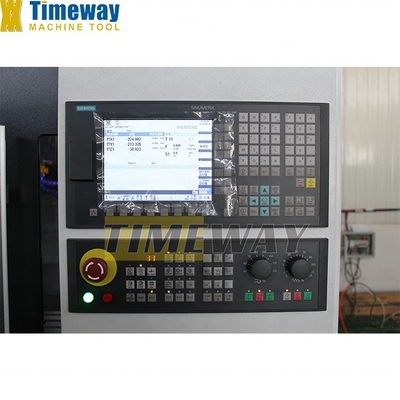

CNC system | - | FANUC or SIEMENS |
Machine length | mm | 3620/4725/5825/7000 |
Machine width & height | mm | 1820x2130 |
Machine weight | tons | 8/10/11.5/15.5 |
Accessories
Standard accessories:
FANUC CNC system
Hydraulic chuck
Hydraulic turret
Hydraulic tailstock
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Chip conveyor
Leveling blocks & bolts
Tools & tool-box
Operation manuals
Hydraulic chuck
Hydraulic turret
Hydraulic tailstock
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Chip conveyor
Leveling blocks & bolts
Tools & tool-box
Operation manuals
Optional accessories:
SIEMENS CNC system
Hydraulic hollow chuck
Air conditioner
Tool setter
Chip conveyor
Hydraulic hollow chuck
Air conditioner
Tool setter
Chip conveyor
Our Team

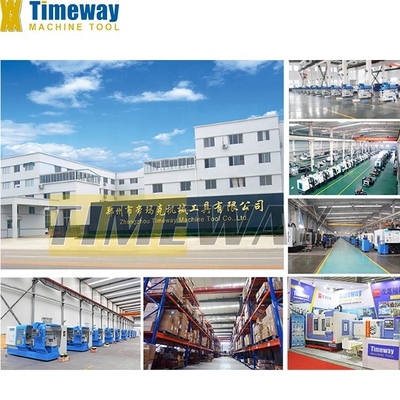

Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Why Choose Us
This is a picture of clients visiting our company when we hold exhibitions around the world.
This is the picture of the packaging in our factory! You can see our package is standardized and centralized , then they will be shipped to your designated place.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
