Mini CNC Lathe with Flat Bed Advanced Technology in Egypt 7.5/10 kW Spindle Motor Power
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $16,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2000 Mm |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 390 Mm | Spindle Motor Power(kW): | 7.5/10 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 320 Mm | Travel (Z Axis)(mm): | 365 Mm |
| Positioning Accuracy (mm): | 0.001 Mm | Repeatability (X/Y/Z) (mm): | 0.005 |
| Voltage: | 220/380V | CNC Control System: | FANUC |
| Tool Post Stations: | 8, 6 | Weight (KG): | 2100 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Not Available |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Automatic Grade: | Automatic | After-sales Service Provided: | Online Support |
| CNC Lathe: | Economical Flat Bed CNC Lathe | Max. Swing Diameter (mm): | 660 |
| Steps Of Spindle Speed: | Variable | Rapid Feed For Axis Z: | 10 M/min |
| Main Motor Power: | 11/15 K W | Machine Weight: | 2100kg |
| Condition: | New | Spindle Bore(mm): | 105 |
| Showroom Location: | Italy, France, Germany, Viet Nam, Philippines, Brazil | Core Components: | Bearing, Motor, Pump, Engine |
| Year: | New | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Max. Turned Length (mm): | 430 | Applicable Industries: | Manufacturing Plant, Other |
| Marketing Type: | New Product | Port: | China Port |
Product Description
Products Description

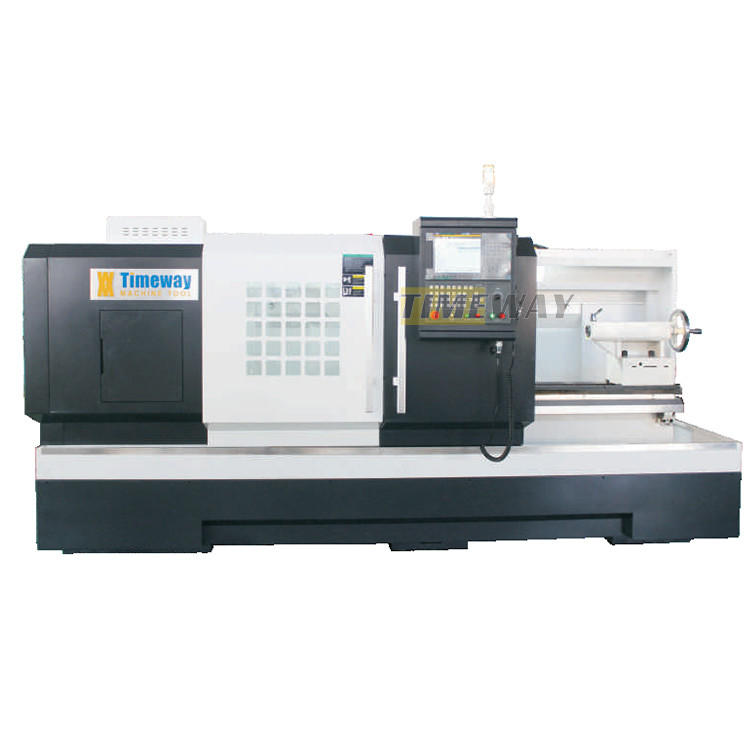

Flat bed CNC lathe
Technical Parameter
Specifications | Units | CK-500 | CK-660 | |
Max.swing over bed | mm | Φ530 | Φ660 | |
Max.swing over carriage | mm | Φ310 | Φ430 | |
Width of bed | mm | 405 | 405 | |
Max.length of workpiece | mm | 750/1000/1500/2000/3000 | ||
Max.turning length | mm | 650/900/1300/1900/2900 | ||
Max.weight between center | - | A2-8 | D8 | |
Spindle nose | mm | Φ80 | Φ105 | |
Spindle bore | mm | MT7 | Metric113 | |
Steps of spindle speed (Manual) | - | 4 steps (variable) | 4 steps (variable) | |
Range of spindle speed | rpm | 27-1630 | 27-1630 | |
Rapid feed for Z-axis | m/min | 10 | 10 | |
Rapid feed for X-axis | m/min | 8 | 8 | |
Max.travel of Z-axis | mm | 720/970/1470/1970/2970 | ||
Max.travel of X-axis | mm | 300 | 365 | |
Min.input | mm | 0.001 | 0.001 | |
Tool post stations | - | V4/V6 | V4/V6 | |
Tool cross section | mm | 32x32 | 32x32 | |
External diameter of tailstock sleeve | mm | Φ75 | Φ75 | |
Taper of bore of tailstock sleeve | - | MT5 | MT5 | |
Max.traverse of tailstock sleeve | mm | 150 | 150 | |
Power of main motor | kw | 7.5 | 11 | |
Power of cooling pump | kw | 0.09 | 0.09 | |
Overall dimensions(L x W x H) | mm | 2250/2500/3000/3500/4500x1250x1580 | ||
Machine weight | kg | 2700/3000/3600/4100/4700 | 2800/3100/3700/4300/5300 | |
Standard accessories: Optional accessories:
FANUC Manual 3-jaw chuck 4-tation electric tool post Electronic handwheel Lubrication system Cooling system Work lamp Pilot lamp Full protection guard Heat exchanger Chip conveyor Leveling blocks & bolts Tools & tool-box Operation manuals | SIEMENS CNC system Hydraulic hollow chuck Air conditioner Tool setter Chip conveyor |

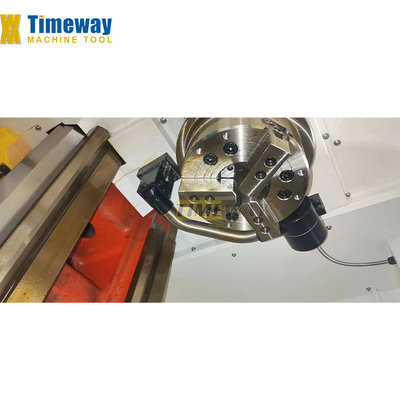

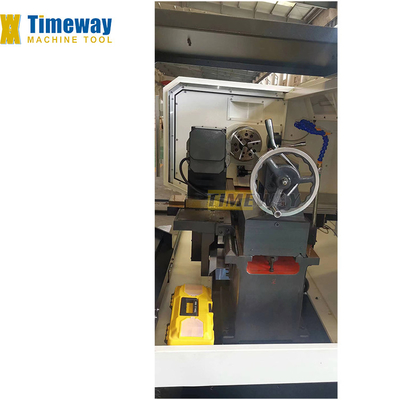

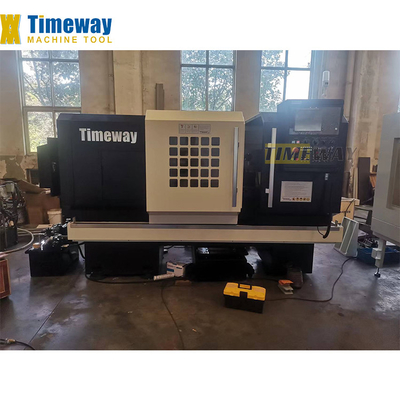

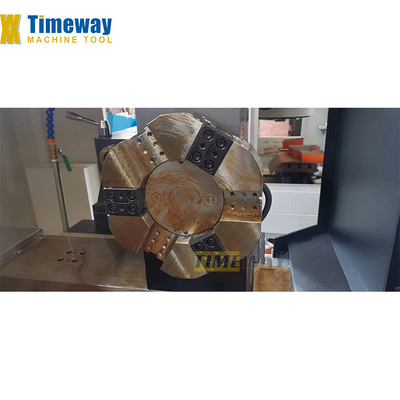

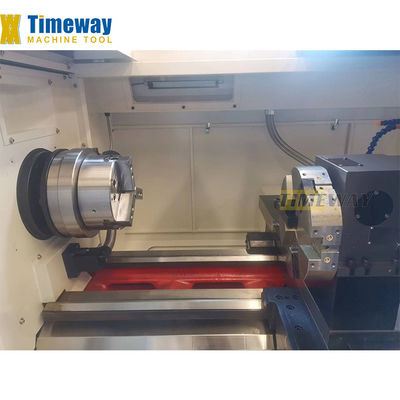

Detail Images
