-VTC series CNC vertical lathe is an automatic CNC machining machine for machining the inner and outer cylindrical surface, cone surface, end surface, groove and chamfer of the parts. The machine is especially suitable for processing of plate type workpiece like the vehicle brake hub, wheel drums, clutch platens, flywheel casings, etc.
-Single-column vertical guide rail structure, vertical column, base and sliding seat are all made of high-grade gray cast iron.
-Column and slide rail are both high-frequency quenching, and the moving surface of the guide rail is plasticized to ensure long-term use,stability and accuracy retention.
-The machine spindle adopts a large torque spindle servo motor, which is suitable for strong cutting; it is also suitable for semi-finishing and finishing of parts. The spindle adopt imported NSK bearings with high rotation precision, low heat generation and low noise.
- The X/Z axis feed is automatically fed by the servo motor. The Z-axis is nitrogen balanced, and the structure is simple and reliable, and the failure rate is low.
-The X/Z axis adopts precision ball screw and imported screw special bearings to meet the requirements of high precision and high rigidity cutting.
-The spindle bearing of the machine is lubricated by thin oil, and the guide rail is lubricated by electric lubricating oil pump.
-The machine tool post adopts the electric tool post or gang type tool plate, with high accuracy and efficiency.
- Special tooling, hydraulic chuck, cooling pump, chip conveyor and chip flushing device can be configured according to user requirements.
 |

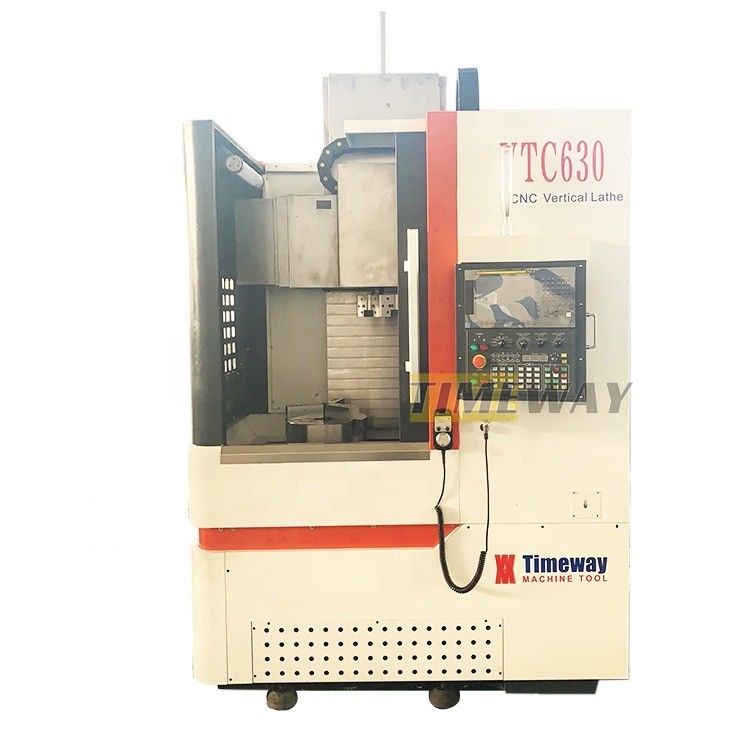

600mm Travel Z Axis VTC630 Vertical CNC Lathe Machine for User-Friendly Operation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | VTC630 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $45,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 630 |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 600 Mm |
| Spindle Motor Power(kW): | 2.3 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 630 Mm |
| Travel (Z Axis)(mm): | 600 Mm | Voltage: | 220v/380v |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 5500 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Product Name: | CNC Vertical Turning Lathe | Machine Type: | Vertical Lathe |
| CNC Or Not: | CNC Lathe Machine | Model: | VTC630 |
| Chuck Size: | 12'' / 15'' | Color: | Customers' Requirement |
| X/Z Axis Travel: | 630/600mm | Max Turning Diameter: | 630mm |
| Max.swing Over Bed: | 700mm | Main Motor Power: | 15/18.5kw |
| Condition: | New | Spindle Bore(mm): | Other |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R |
| Core Components: | Bearing, Motor, PLC, Engine | Max. Spindle Speed (r.p.m): | 1000 R.p.m |
| Max. Turned Length (mm): | 630 | Marketing Type: | Hot Product |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Overview
Vertical CNC Lathe
Features:
Specification
Specifications | Unit | VTC630 |
Worktable diameter | mm | 630 |
Max. turning diameter | mm | 700 |
Worktable speed range | rpm | 10-1000 |
Tool-post corss travel | mm | 630 |
Tool-post vertical travel | mm | 600 |
Tool-post rapid feed speed | m/min | 10/15 |
Tool-post feed speed | mm/min | 0.1-1000 |
Tool post type | - | Gang-type/V4 |
Tool section size | mm | 32x32 |
X/Z-axis positioning accuracy | mm | 0.01 |
X/Z-axis repositioning accuracy | mm | 0.008 |
Main motor power | kw | 15/18.5 |
X-axis feed motor power | kw | 2.3 |
Z-axis feed motor power | kw | 2.3 (brake) |
X/Z-axis feed motor torque | NM | 15 |
Machine weight | kg | 5500 |
Accessories
STANDARD ACCESSORIES:
FANUC CNC system
Electric tools turret
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Work lamp
Pilot lamp
Protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals
OPTIONAL ACCESSORIES:
SIEMENS CNC system
Air conditioner
Chain type chip conveyor

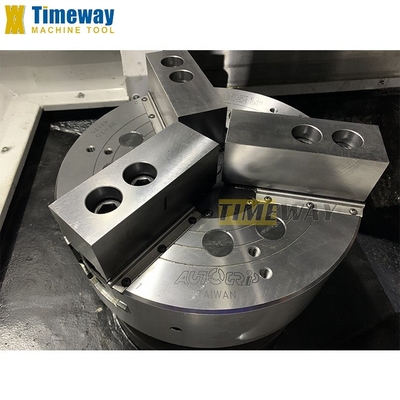

CNC system Hydraulic chuck
CNC system Hydraulic chuck
Nitrogen balancer

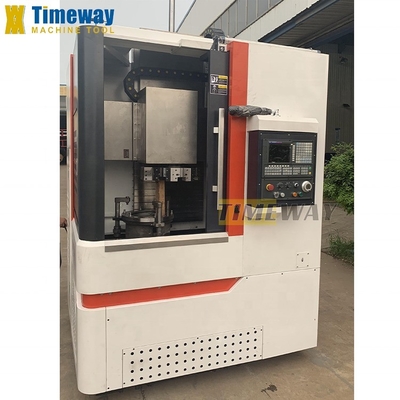

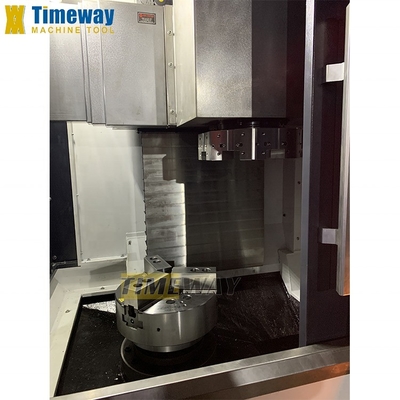

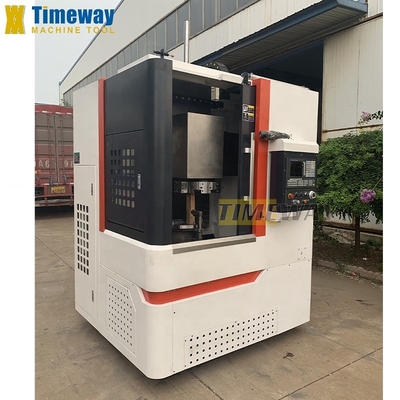

Detail Images
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
