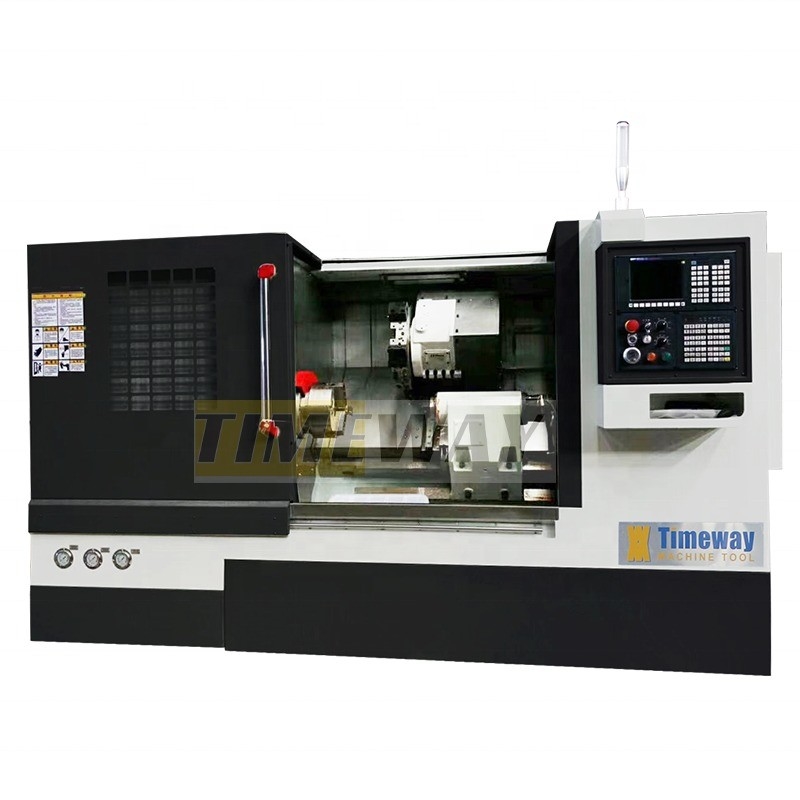

Professional Hongda Presents CK-500 Flat Bed CNC Lathe for High Precision Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | CK-500 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal, Axis Mobile | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 390 Mm | Spindle Motor Power(kW): | 55 |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 295 Mm | Travel (Z Axis)(mm): | 2000 Mm |
| Positioning Accuracy (mm): | ±0.002 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 2100/2300/2600 | Voltage: | 220/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 12, 8, 10, 6, 4 |
| Weight (KG): | 2600 | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Flat Bed CNC Lathe |
| Product Name: | CNC Lathe Mechine | Name: | Metal Cnc Lathe |
| Keyword: | Automatic CNC Lathe Machine | Function: | Machining Metal |
| After-sales Service Provided: | Online Support | Product Type: | Economical CNC Lathe |
| Precision: | High Precision Machine | Condition: | New |
| Spindle Bore(mm): | 82 | Toolpost Brand: | Hongda |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Russia |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Max. Turned Length (mm): | 2000 | Marketing Type: | Hot Product |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us | ||
Product Description
Products Description
CK - 500
Flant Bed CNC Lathe:
Specification | Unit | CK-500 |
Max. swing over bed | mm | 500 |
Max.. swing over cross slide | mm | 290 |
Distance between centers | mm | 1000/1500/2000 |
Max. turning length | mm | 1000/1500/2000 |
Bed width | mm | 390 |
Spindle nose | mm | A2-8 |
Spindle bore | mm | 82 |
Spindle taper | - | Metric 90 |
Spindle speed (Manual steps) | rpm | 45-180, 180-750, 600-1600 |
Center height | mm | 250 |

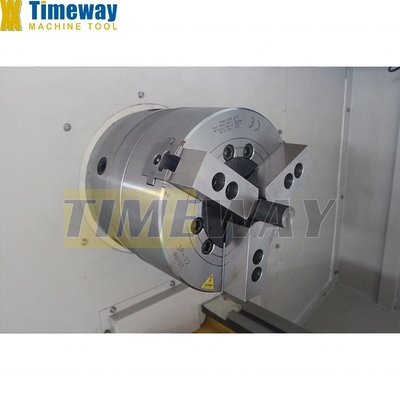

Chuck size | mm | 250 |
Cross travel (X) | mm | 295 |
Longitudinal travel (Z) | mm | 1000/1500/2000 |
X/Z-axis rapid feed speed | mm/min | 8/12 |
X/Z-axis min. feed unit | mm | 0.001 |
X/Z-axis feed motor torque | NM | 5/7 |

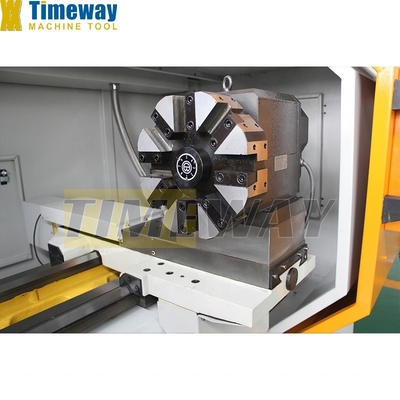

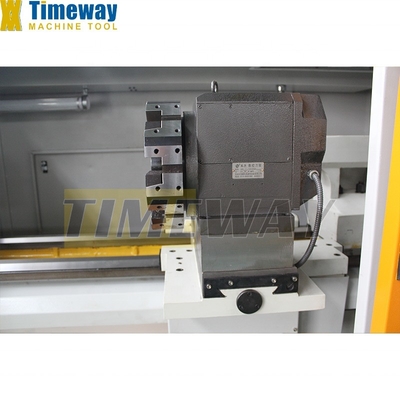

Tool post type | - | V4 |
Tool section size | mm | 25x25 |

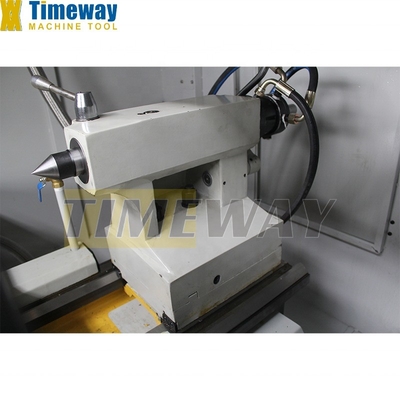

Tailstock quill diameter | mm | 75 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | M5 |
Main motor power | kw | 7.5 |
Coolant pump power | kw | 0.12 |
Machine weight | kg | 2100/2300/2600 |
Shipping
Exhibitions
TIMEWAY at EMO Hannover
TIMEWAY machine participates in the EMO Hannover exhibition every time, which is Europe's leading machine tool and metal processing technology exhibition. At the exhibition, TIMEWAY machine demonstrated its advanced machine tools and processing technology, as well as comprehensive solutions for different industries and application fields. These solutions include precision machining and production of high-quality metal parts for the automotive, aerospace, energy, and other sectors.
TIMEWAY at CIMT
CIMT is held in China, the hometown of TIMEWAY machine, so TIMEWAY machine will participate in the CIMT exhibition every time. This is the China International Machine Tool Exhibition and one of the largest machine tool exhibitions in Asia. At the exhibition, TIMEWAY displayed its diversified machine tool products, including CNC machine tools, machining centers, gear processing machine tools, precision measuring equipment, etc.
TIMEWAY at Metalloobrabotka
TIMEWAY participated in the Metalloobrabotka exhibition held in Moscow, which is a professional exhibition for the metal processing and machine tool industry in Russia and surrounding areas. At the exhibition, TIMEWAY's booth attracted the attention of many exhibitors and industry experts. The company's professional team had in-depth exchanges with exhibitors and visitors from Russia and other countries and regions, sharing valuable experience and the latest industry trends. In addition, TIMEWAY machine has also participated in exhibitions in many countries and regions.
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
