Max. Turned Length mm 12000 Spindle Bore mm 130 CNC Lathe AK-1000B Complex Processing
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | AK-1000B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 8000 | Width Of Bed (mm): | 755 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 570 Mm |
| Travel (Z Axis)(mm): | 630 Mm | Positioning Accuracy (mm): | ±0.002 |
| Repeatability (X/Y/Z) (mm): | ±0.001 | Dimension(L*W*H): | 15300x2530x2150 |
| Voltage: | 220/380V | CNC Control System: | FANUC |
| Tool Post Stations: | 12, 8, 10, 6, 4 | Weight (KG): | 9800 |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Flat Bed CNC Lathe | Product Name: | CNC Lathe Mechine |
| Name: | Metal Cnc Lathe | Keyword: | Automatic CNC Lathe Machine |
| Function: | Machining Metal | After-sales Service Provided: | Online Support |
| Product Type: | Economical CNC Lathe | Precision: | High Precision Machine |
| Automatic Grade: | Automatic CNC Turning Machine | Condition: | New |
| Spindle Bore(mm): | 130 | Toolpost Brand: | Hongda |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Viet Nam, Russia |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 320 R.p.m |
| Max. Turned Length (mm): | 12000 | Marketing Type: | Hot Product |
| Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us | ||
Product Description
Products Description

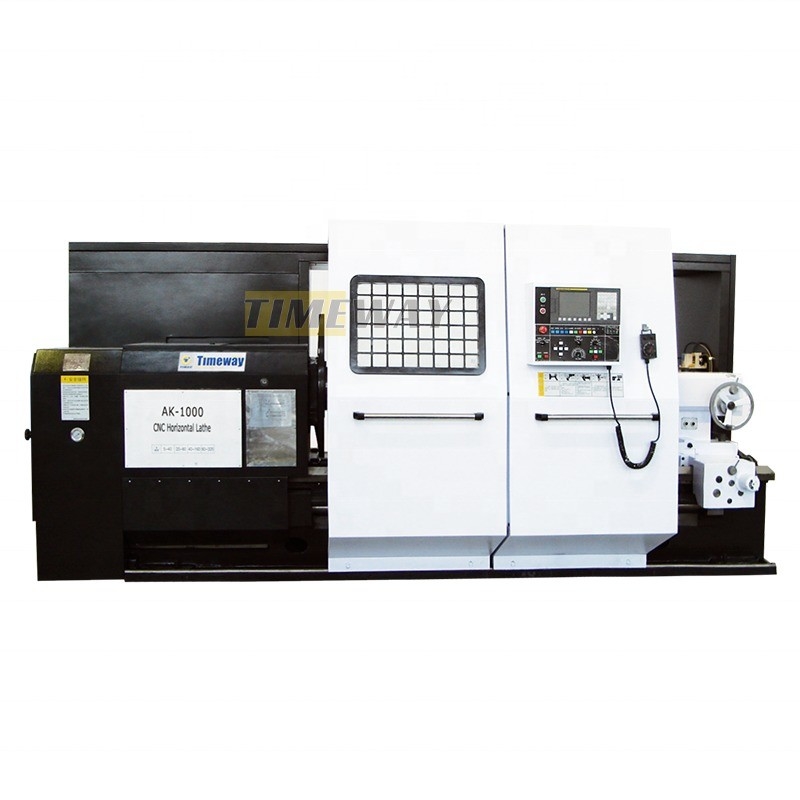

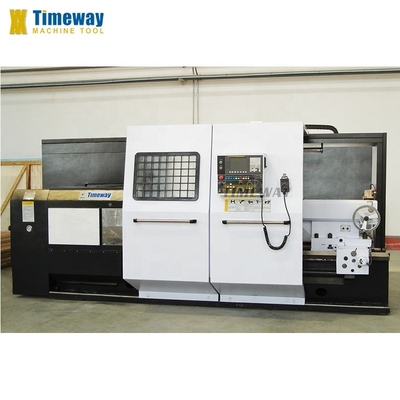

AK - 1000B
CNC Heavy Duty Horizontal Lathe:
Specification | Unit | AK-1000B |
Max. swing over bed | mm | 1000 |
Max.. swing over cross slide | mm | 630 |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000 |
Max. turning length | mm | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800 |
Bed width | mm | 755 |
Loading capacity | kg | 6000 (8000) |
Spindle nose | mm | A2-15 |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 |
Center height | mm | 500 |
Chuck size (4-jaw) | mm | 1000 |
X/Z-axis min. feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/5000 |
Cross travel (X) | mm | 570 |
Tool post type | - | V4/V6/V8 |
Tool change time | s | 2.6 |
Turret repeat positioning accuracy | mm | 0.01 |
Tool section size | mm | 40x40 |
Tailstock quill diameter | mm | 160 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
CNC system | - | FANUC/GSK/SIEMENS |
Working accuracy | - | IT6-IT7 |
Surface roughness | µm | Ra1.6 |
Main motor power | kw | 30 |
Machine weight | kg | 9800/10200/10600/11800/13000/14800 (above 6M, actual measurement) |
Machine length | mm | 4300/4800/5300/6300/7300/8300 (above 6M, actual measurement) |
Machine width | mm | 2530 |
Machine height | mm | 2150 |
Machine height | mm | 1880 |
CNC system | - | FANUC/GSK/SIEMENS |
Company Introduction
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
