Max. 1250mm Sawing Single Spindle Multifunctional CNC Lathe with 730mm Turned Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ISO9001 |
| Model Number: | AK-1250B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,560.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 6000 | Width Of Bed (mm): | 400 Mm |
| Spindle Motor Power(kW): | 11/15 | No. Of Spindles: | Single |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 570 Mm |
| Travel (Z Axis)(mm): | 400 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 2700*1730*1900mm |

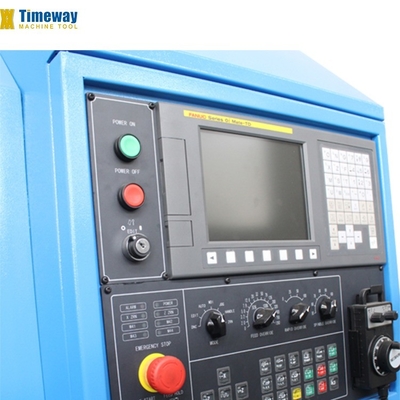

| Voltage: | Customer's Requirement | CNC Control System: | FANUC |
| Tool Post Stations: | 8, 4 | Weight (KG): | 3600 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC Lathe Machine |
| Machine Type: | Flat Bed CNC Lathe | Product Name: | CNC Lathe Mechine |
| Keyword: | Cnc Metal Lathe Machine | Precision: | High Precision Machine |
| Application: | Multi Purpose Metal Working | Machine Name: | Horizontal Cnc Metal Turning Lathe |
| Processing Type: | Turning CNC Lathe Mahcine | Function: | Machining Metal Lathe |
| Condition: | New | Spindle Bore(mm): | 130 |
| Toolpost Brand: | Hongda | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops |
| Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina | Marketing Type: | Hot Product 2019 |
| Core Components: | Bearing, PLC | Year: | 2023 |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | Max. Turned Length (mm): | 730 |
| Port: | China Port | ||
Product Description
Product Description

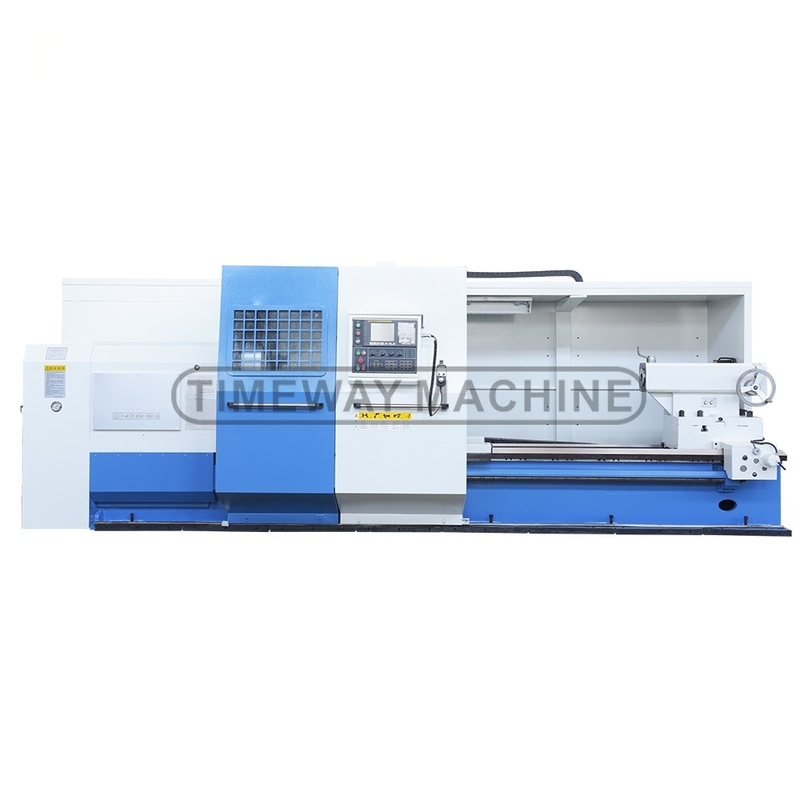

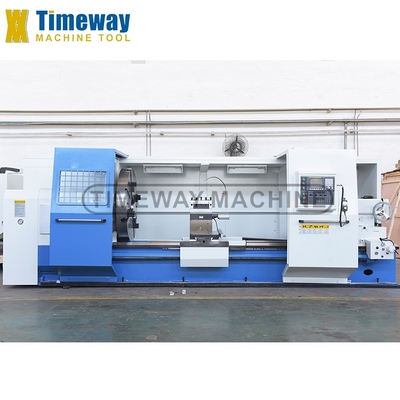

Flat Bed CNC Lathe
Standard Accessories:
√ FANUC/GSK/SIEMENS CNC system √ 4-jaw chuck √ 4-station electric tool-post
√ Work lamp
√ Cooling system
√ Semi-closed guard

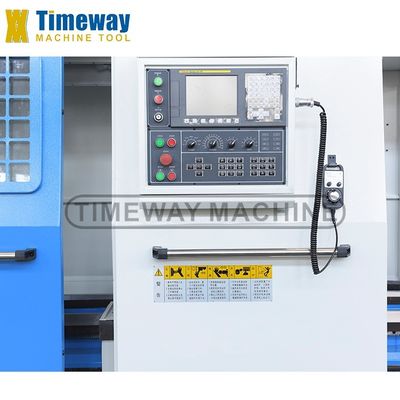

√ Manual pulse generator (MPG)
√ Pilot lamp
√ Automatic lubrication pump
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
Optional Accessories:
_ Steady rest _ Follow rest
_ Roller support
_ 6/8-station tool-post
_ Air conditioner
_ Chip conveyor
_ Full guard
Specification
Specification | Unit | AK-1000B | AK-1250B | AK-1400B | AK-1600B | |||
Max. swing over bed | mm | 1000 | 1250 | 1400 | 1640 | |||
Max.. swing over cross slide | mm | 630 | 880 | 1030 | 1250 | |||
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/- | ||||||
Max. turning length | mm | 730/1300/1800/2800/3800/4800/5800/7800/9800/11800/- | ||||||
Bed width | mm | 755 | 755 | 755 | 755 | |||
Loading capacity | kg | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | 6000 (opt: 8000) | |||
Spindle nose | mm | A2-15 | A2-15 | A2-15 | A2-15 | |||
Spindle bore | mm | 130 | 130 | 130 | 130 | |||
Spindle taper | - | Metric 140 | Metric 140 | Metric 140 | Metric 140 | |||
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 | 5-320 | 5-320 | 5-320 | |||
Center height | mm | 500 | 625 | 700 | 820 | |||
Chuck size (4-jaw) | mm | 1000 | 1000 | 1000 | 1000 | |||
X/Z-axis min. feed unit | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | |||
X/Z-axis rapid feed speed | mm/min | 3000/5000 | 3000/5000 | 3000/5000 | 3000/5000 | |||
Cross travel (X) | mm | 570 | 570 | 690 | 630 | |||
Tool post type | - | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | V4/V6/V8 | |||
Tool change time | s | 2.6 | 2.6 | 2.6 | 2.6 | |||
Turret repeat positioning accuracy | mm | 0.01 | 0.01 | 0.01 | 0.01 | |||
Tool section size | mm | 40x40 | 40x40 | 40x40 | 40x40 | |||

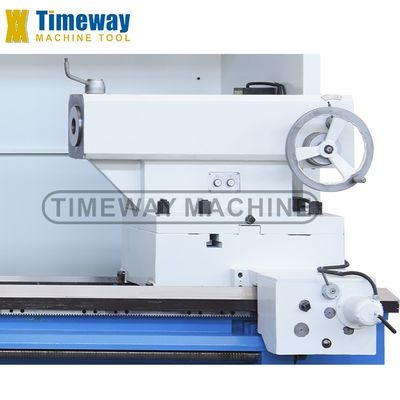

Tailstock quill diameter | mm | 160 | 160 | 160 | 160 | |||
Tailstock quill travel | mm | 300 | 300 | 300 | 300 | |||
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 | |||
CNC system | - | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | FANUC/GSK/SIEMENS | |||
Working accuracy | - | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 | |||
Surface roughness | µm | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 | |||
Main motor power | kw | 30 | 30 | 30 | 30 | |||
Machine weight | kg | 9800/10200/10600/11800/13000/14800/16600/20600/24600/28600/- | ||||||
Machine length | mm | 4300/4800/5300/6300/7300/8300/9300/11300/13300/15300/- | ||||||
Machine width | mm | 2530 | 2530 | 2780 | 2780 | |||
Machine height | mm | 2150 | 2150 | 2600 | 2600 | |||
