Medium Duty Machining Capacity CNC Lathe Machine with Single Spindle
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | CK-36 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $44,500.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 500 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 3500 | Width Of Bed (mm): | 300 Mm |
| Spindle Motor Power(kW): | 11 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 230 Mm |
| Travel (Z Axis)(mm): | 600 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 2900*1800*1750 |
| Voltage: | Customer's Requirement | CNC Control System: | FANUC |
| Tool Post Stations: | 8 | Weight (KG): | 3200 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Slant Bed CNC Lathe | Keyword: | Cnc Lateh Machine |
| Product Type: | Horizontal CNC | Precision: | High Precision Machine |
| Max. Turning Diameter: | 360 | Control System: | SIEMENS GSK FANUC (optional) |
| Color: | Customer Optional | Max.swing Over Bed: | 550 |
| Model: | CK-36 | Condition: | New |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops | Showroom Location: | Egypt, Turkey, Italy, Brazil, Peru, Indonesia, Mexico, Russia, Argentina |
| Marketing Type: | Hot Product 2019 | Core Components: | Bearing, PLC |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 3000 R.p.m |
| Spindle Bore(mm): | 62 | Max. Turned Length (mm): | 500 |
| Port: | China Port | ||
Product Description
Product Description

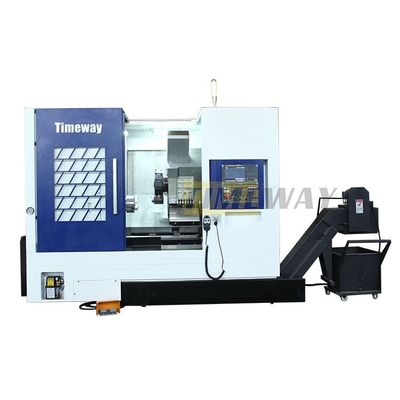

Slant Bed CNC Lathe
The machine adopts a 45° inclined layout, and the bed is a tubular hollow structure, which greatly improves the bending and torsional rigidity of the machine tool during operation. The advanced bed provides a strong guarantee for the high precision of the whole machine.
It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.
It is more suitable for the processing of various shaft and disc parts with high precision requirements, difficult processing, many processes, and mass production.

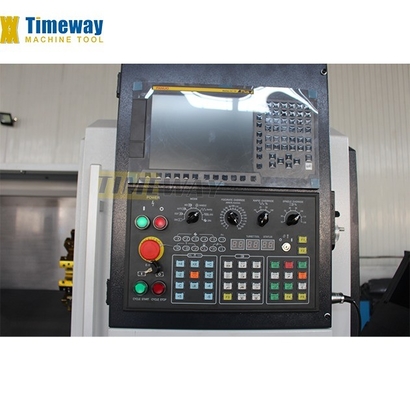

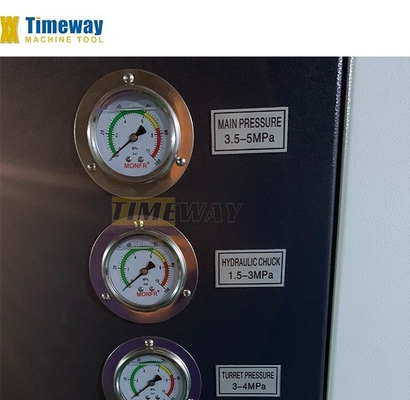

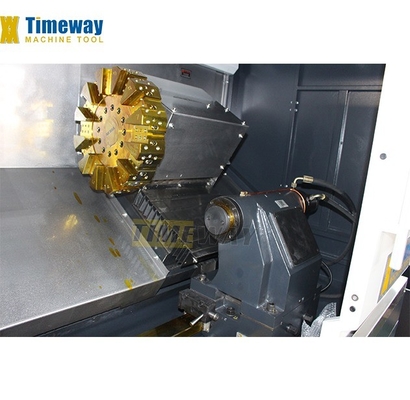

Detailed Images
Specification
Specification | Unit | CK-32 | CK-36 | CK-45 |
Max. swing over bed | mm | 420 | 550 | 500 |
Max. swing over cross slide | mm | 220 | 220 | 220 |
Standard turning diameter | mm | 210 | 210 | 210 |
Max. turning diameter | mm | 320 | 360 | 360 |
Max. turning length | mm | 350 | 500 | 750 |
Spindle speed | rpm | 3500 | 3000 | 2500 |
Spindle nose | - | A2-5 | A2-6 | A2-6 |
Spindle bore | mm | 56 | 62 | 66 |
Hydraulic chuck size | mm | 160 | 200 | 200 |
Cross travel (X) | mm | 210 | 230 | 220 |
Longitudinal travel (Z) | mm | 450 | 600 | 850 |
X/Z-axis rapid feed speed | m/min | 12/20 | 24/24 | 20/20 |
Hydraulic cool post type | - | 80-8T | 80-8T | 80-8T |
Tool section size | mm | 25x25/Φ32 | 25x25/Φ32 | 25x25/Φ32 |
Tailstock quill diameter | mm | 52 | 110 | 110 |
Tailstock quill travel | mm | 60 | 100 | 100 |
Tailstock quill taper | - | MT4 | MT5 | MT4 |
Bed structure | - | 45° Integral bed | 45° Integral bed | 45° Integral bed |
Guideway type | - | Linear/Sliding | Linear/Sliding | Linear/Sliding |
Main motor power | kw | 7.5 | 11 | 7.5 |
Power supply | kva | 30 | 25 | 30 |
Machine dimensions (LxWxH) | mm | 2600x1800x1600 | 2900x1800x1750 | 2900x1800x1600 |
Machine weight | kg | 2700 | 3200 | 3200 |
