210 mm Travel X Axis CK-32 CNC Lathe Machine For Metal Slant Bed Lathe 2700 KG Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | CK-32 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $39,985.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 320 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 52 Mm | Spindle Motor Power(kW): | 7.5 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 210 Mm | Travel (Z Axis)(mm): | 450 Mm |
| Dimension(L*W*H): | 2600x1800x1600mm | Tool Post Stations: | 8 |
| Weight (KG): | 2700 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Slant Lathe Machine |
| Control System: | FANUC CNC System | Precision: | High Precision Machine |
| Spindle Speed: | 3500rpm | Max. Turning Diamater: | 210mm |
| Max.swing Over Bed: | 420mm | Max. Turning Length: | 350mm |
| Main Motor Power: | 7.5kw | Machine Weight: | 2700kg |
| Condition: | New | Spindle Bore(mm): | 56 |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, Turkey, United States, Italy, France, Germany, Indonesia, India, Mexico, Russia, Thailand, Argentina, South Korea, Chile, Japan, Malaysia, Australia |
| Core Components: | Bearing, Motor, Gear, Engine | Year: | 2024 |
| Max. Spindle Speed (r.p.m): | 3500 R.p.m | Marketing Type: | Hot Product 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
FANUC CNC system
8-station hydraulic tool post
Hydraulic chuck
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals
OPTIONAL ACCESSORIES:
GSK
SIEMENS CNC system
Air conditioner
Hydraulic hollow chuck
Tool setter
Bar feeder
Hydraulic tailstock
Chain type chip conveyor
Specification
SPECIFICATION | UNIT | CK-32 |
Max. swing over bed | mm | 420 |
Max. swing over cross slide | mm | 220 |
Standard turning diameter | mm | 210 |
Max. turning diameter | mm | 320 |
Max. turning length | mm | 350 |
Spindle speed | rpm | 3500 |
Spindle nose | - | A2-5 |
Spindle bore | mm | 56 |
Hydraulic chuck size | mm | 160 |
Cross travel (X) | mm | 210 |
Longitudinal travel (Z) | mm | 450 |
X/Z-axis rapid feed speed | m/min | 20/12 |
Hydraulic cool post type | - | 80-8T |
Tool section size | mm | 25x25/Φ32 |
Tailstock quill diameter | mm | 52 |
Tailstock quill travel | mm | 60 |
Tailstock quill taper | - | MT4 |

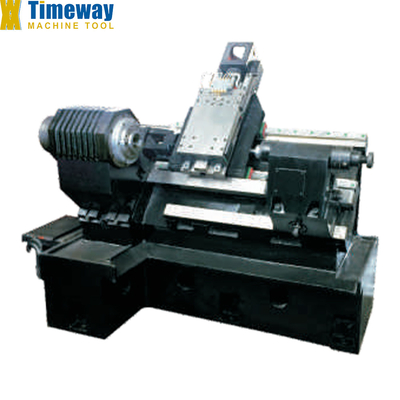

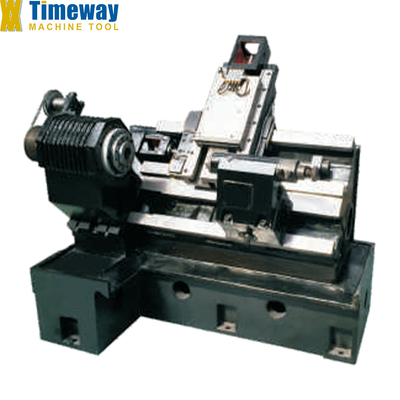

Bed structure | - | 45° Integral bed |
Guideway type | - | Linear/Sliding |
Main motor power | kw | 7.5 |
Power supply | kva | 30 |
Machine dimensions (LxWxH) | mm | 2600x1800x1600 |
Machine weight | kg | 2700 |
