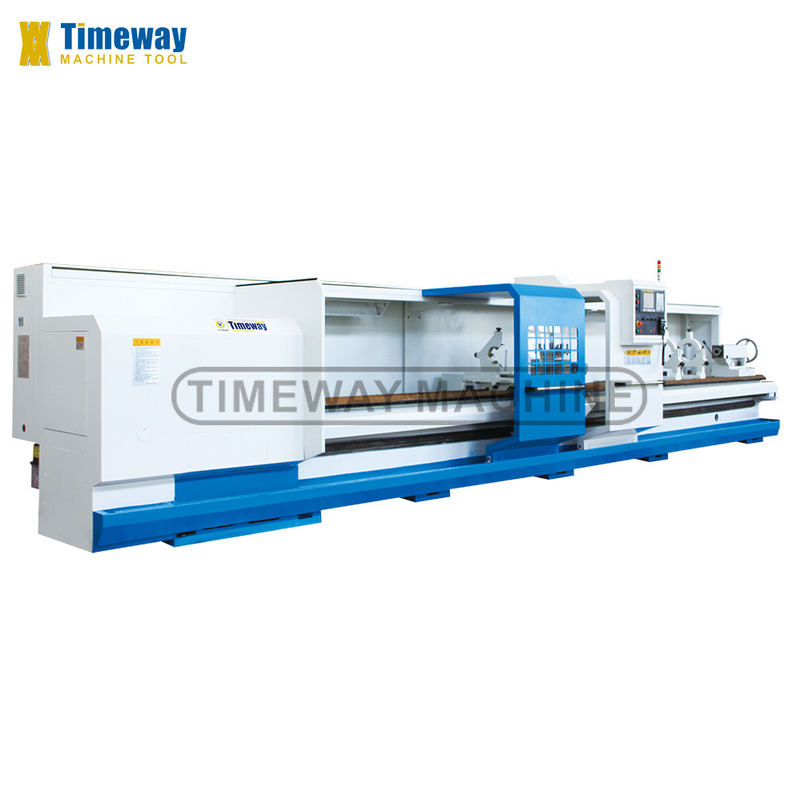

630mm Z Axis Travel CNC Heavy Duty Horizontal Lathe Machine AK-630B for Metal Turning
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK-630B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,850.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 7850 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 550 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 390 Mm | Travel (Z Axis)(mm): | 630 Mm |
| Positioning Accuracy (mm): | ±0.03 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 10200 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Lathe Machine CNC |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Spindle Nose: | C11 | Chuck Size: | 325mm |
| Max.swing Over Bed: | 630mm | Max. Swing Over Cross Slide: | 340mm |
| Bed Width: | 550mm | Loading Capacity: | 2000kg |
| Condition: | New | Spindle Bore(mm): | 100 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Egypt, Canada, Italy, France, Germany, India, Sri Lanka, Romania, Japan, Australia |
| Core Components: | Bearing, Motor, Pump, Gear, Engine | Year: | 2024 |
| Max. Spindle Speed (r.p.m): | 1000 R.p.m | Max. Turned Length (mm): | 7850 |
| Marketing Type: | New Product 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
FANUC/GSK/SIEMENS CNC system
3-jaw chuck,

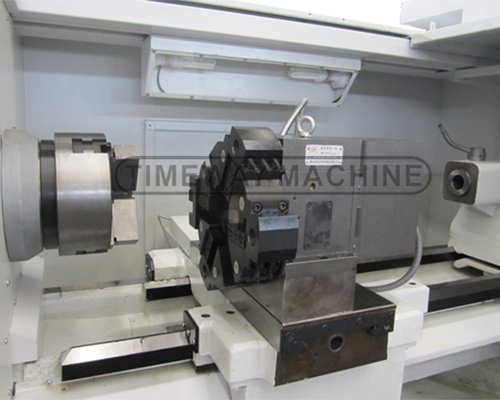

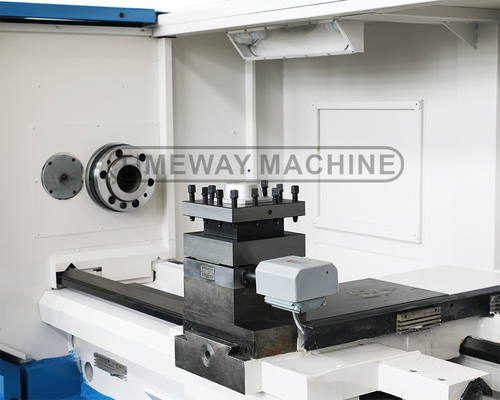

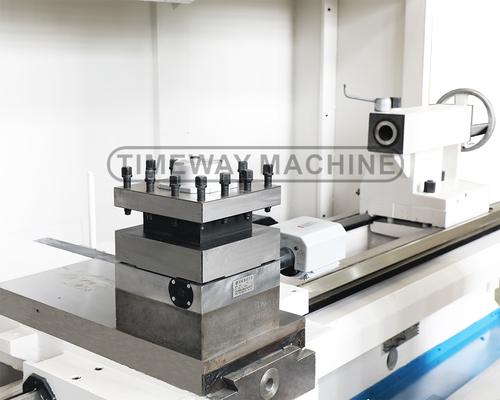

4-station electric tool-post,
Work lamp
Cooling system
Semi-closed guard

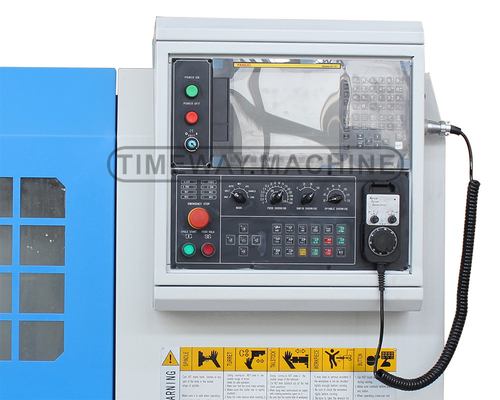

Manual pulse generator (MPG)
Dead centers
Oil gun
Pilot lamp
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
Operation manual (English)
OPTIONAL ACCESSORIES:
4-jaw chuck
Steady rest
Follow rest
Hydraulic chuck
Penumatic chuck
Hydraulic tailstock
6-station tool-post
Live centers
Air conditioner
Chip conveyor
Full guard
Specification
SPECIFICATION | UNIT | AK-630B |
Max. swing over bed | mm | 630 |
Max.. swing over cross slide | mm | 340 |
Distance between centers | mm | 750/1000/1500/2000/3000/4000/5000/6000/8000/- |
Max. turning length | mm | 600/850/1350/1850/2850/3850/4850/5850/7850/- |
Bed width | mm | 550 |
Loading capacity | kg | 2000 |
Spindle nose | - | C11 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 120 |
Spindle speed (Manual steps) | rpm | 7.5-1000 (18) |
Spindle speed (Manual 4steps stepless) | rpm | 7.5-1000 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 7.5-1000 |
Center height | mm | 315 |
Chuck size | mm | 325 |
X/Z-axis min. feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/6000 |
Cross travel (X) | mm | 390 |
Tool post type | - | V4 |
Tool change time | s | 2.4 |
Turret repeat positioning accuracy | mm | 0.008 |
Tool section size | mm | 32x32 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | - | MT6 |
Working accuracy | - | IT6-IT7 |
Surface roughness | um | Ra1.6 |
Main motor power | kw | 11 |
Machine weight | kg | 3500/3700/4000/4500/5000/6100/7100/8000/10200/- |
Machine length | mm | 3200/3445/3895/4390/5390/6580/7580/8580/10580/- |
Machine width | mm | 1800 |
Machine height | mm | 1880 |
CNC system | - | FANUC |
