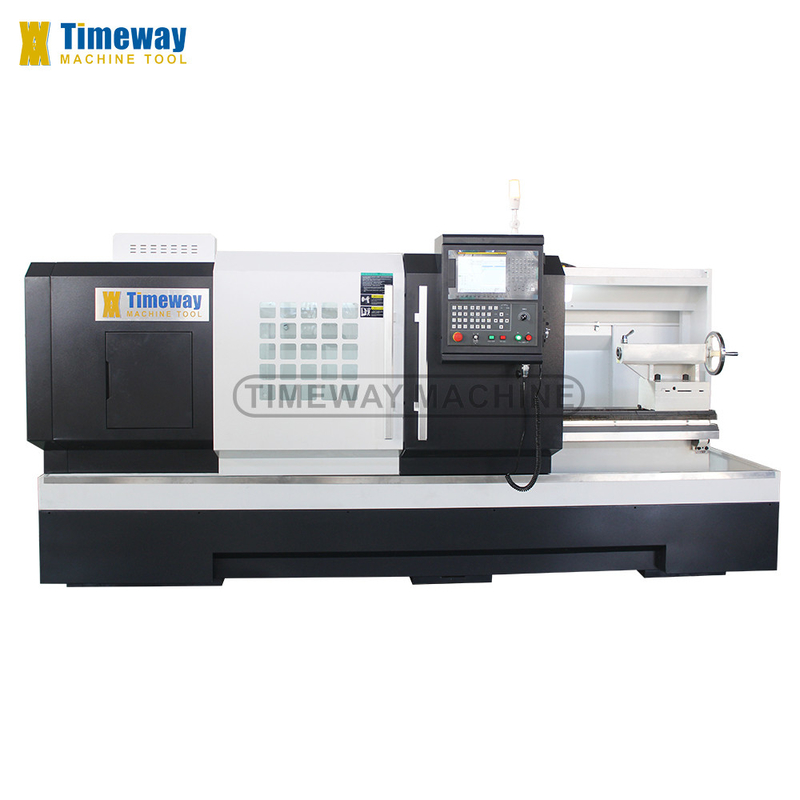

CNC Lathe Machine CK-660 with 2000 mm Travel Z Axis and Max. Spindle Speed of 1600 r.p.m
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | CK-660 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,650.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 430 Mm | Spindle Motor Power(kW): | 11/15 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 365 Mm | Travel (Z Axis)(mm): | 2000 Mm |
| Tool Post Stations: | 4 | Weight (KG): | 1800 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC Machine |
| Product Name: | Cnc Flat Lathe Machine | Precision: | High Precision Machine |
| Control System: | FANUC CNC System | Spindle Speed: | 45-1600 (3)rpm |
| Max.swing Over Bed: | 660mm | Spindle Nose: | D10 |
| Bed Width: | 390mm | Machine Weight: | 2100/2500/2800kg |
| Distance Between Centers: | 1000/1500/2000mm | Condition: | New |
| Spindle Bore(mm): | 105 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining, Food & Beverage Shops |
| Showroom Location: | Canada, United States, Italy, France, Viet Nam, India, Russia, Spain, Thailand, South Korea, Japan, Malaysia, Australia | Core Components: | Motor, Pump, Gear, Engine |
| Year: | 2024 | Max. Spindle Speed (r.p.m): | 1600 R.p.m |
| Max. Turned Length (mm): | 2000 | Marketing Type: | Hot Product 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

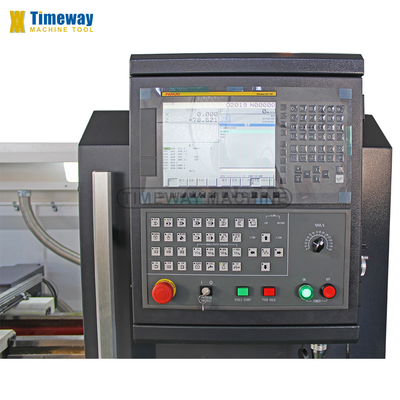

FANUC CNC system
Manual 3-jaw chuck

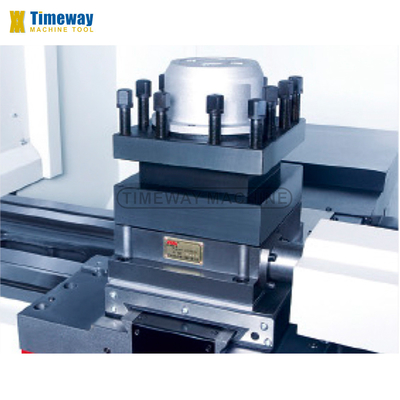

4-station electronic tool post
Electronic handwheel (MPG)
Electronic handwheel (MPG)
Lubrication system
Cooling system
Work lamp
Pilot lamp
Protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals
OPTIONAL ACCESSORIES:
GSK
SIEMENS CNC system
Hydraulic chuck
6-station tool post
Air conditioner
Tool setter
Chain type chip conveyor
Specification
SPECIFICATION | UNIT | CK-660 |
Max. swing over bed | mm | 660 |
Max. swing over cross slide | mm | 430 |
Distance between centers | mm | 1000/1500/2000 |
Max. turning length | mm | 1000/1500/2000 |

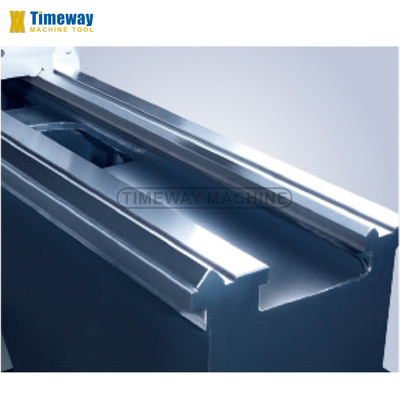

Bed width | mm | 390 |
Spindle nose | mm | D10 |
Spindle bore | mm | 105 |
Spindle taper | - | Metric 90 |
Spindle speed (Manual steps) | rpm | 45-1600 (3) |
Center height | mm | 330 |
Chuck size | mm | 320 |
Cross travel (X) | mm | 365 |
Longitudinal travel (Z) | mm | 1000/1500/2000 |
X/Z-axis rapid feed speed | m/min | 8/12 |
X/Z-axis min. feed unit | mm | 0.001 |
X/Z-axis feed motor torque | NM | 7.5/10 |
Tool post type | - | V4 |
Tool section size | mm | 25x25 |
Tailstock quill diameter | mm | 75 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5 |
Main motor power | kw | 11/15 |
Coolant pump power | kw | 0.12 |
Machine weight | kg | 2100/2500/2800 |
