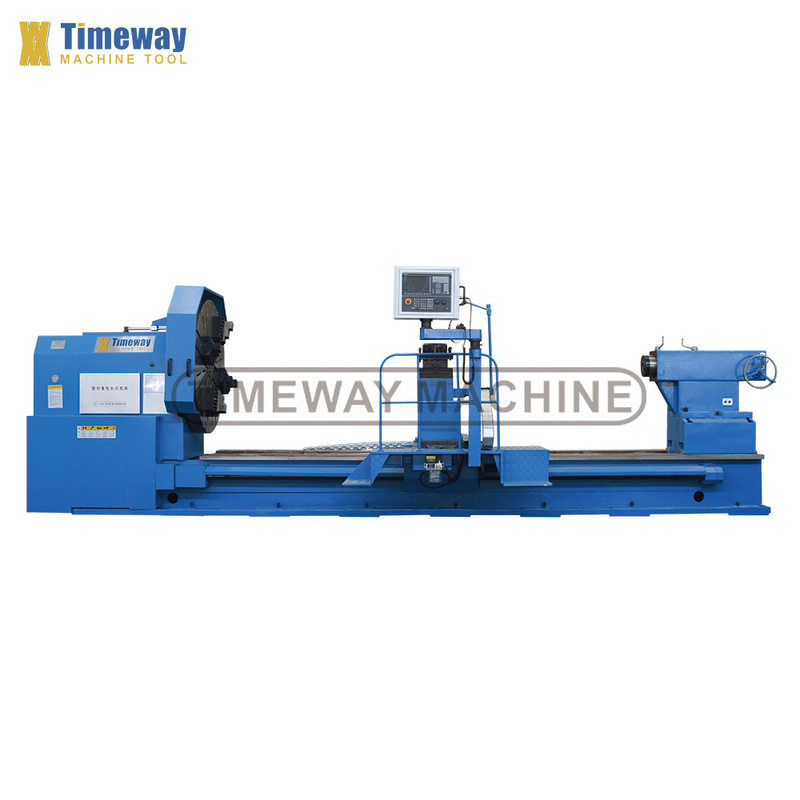

Precision CNC Heavy Duty Horizontal Lathe AK-1250 with Max. Turned Length 2800mm
Product Details:
| Place of Origin: | China |
| Model Number: | AK1250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2800 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 16000 | Width Of Bed (mm): | 1100 Mm |
| Spindle Motor Power(kW): | 30 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 850 Mm |
| Travel (Z Axis)(mm): | 900 Mm | Dimension(L*W*H): | 15000 6400 2220 |
| CNC Control System: | FANUC | Tool Post Stations: | 6, 4 |
| Weight (KG): | 15000 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Machine Type: | Lathe Machine CNC |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Application: | Metal Turning Milling Drilling | Max. Turning Length: | 2800mm |
| Spindle Bore: | 100mm | After Sale Service: | Yes |
| Spindle Speed: | Forward: 3.15-315(21); Reverse: 3.5-291(12 | Max.swing Over Bed: | 1270mm |
| Spindle Bore(mm): | 100 | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia |
| Max. Spindle Speed (r.p.m): | 315 R.p.m | Max. Turned Length (mm): | 2800 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Marketing Type: | Hot Product |
| Core Components: | Other | ||
Product Description
Product Description
Specification
SPECIFICATION | UNIT | AK-1250 |
Max. swing over bed | mm | 1250 |
Max.. swing over cross slide | mm | 900 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 1100 |

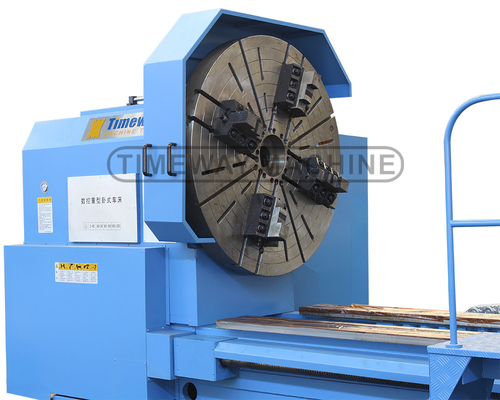

Chuck size (4-jaw) | mm | 1250 |
Loading capacity | tons | 16 (opt: 20) |
Spindle nose | mm | A2-15 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 140 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 3-320 |
Spindle speed (manual) | rpm | Forward: 3.15-315(21); Reverse: 3.5-291(12) |
Max. cutting force | N | 39200 |
X/Z-axis rapid feed speed | mm/min | 4000/6000 |
Cross travel (X) | mm | 850 |

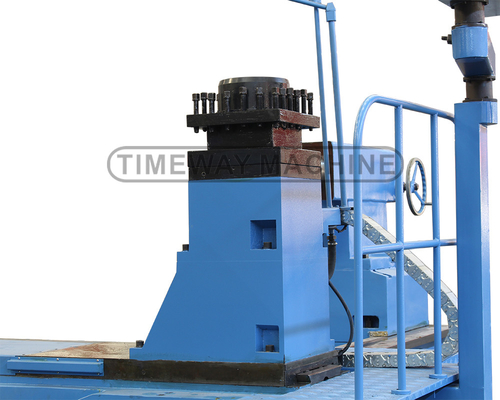

Tool post type | - | V4 |
Tool post size | mm | 380x380 |
Max. feed force (X) | N | 10875 |
Tool section size | mm | 50x50 |

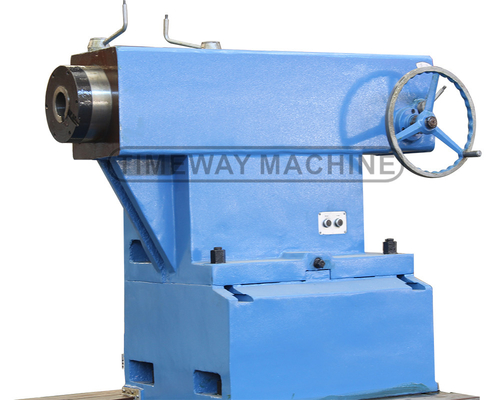

Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Working accuracy | - | IT7 |
Surface roughness | 碌m | Ra2.5-3.2 |
Main motor power | kw | 30 |
Machine weight | kg | 15000/17200/19400/21560/26000/30400/34800/- |
Machine length | mm | 6400/7400/8400/9400/11400/13400/15400/- |
Machine width | mm | 3200 |
Machine height | mm | 2220 |
STANDARD ACCESSORIES:
FANUC/GSK/SIEMENS CNC system, 4-jaw chuck, 4-station electric tool-post, etc.
OPTIONAL ACCESSORIES:
6/8-station tool-post, Steady rest, Roller support, Full guard, Live centers, Air conditioner, Chip conveyor.
