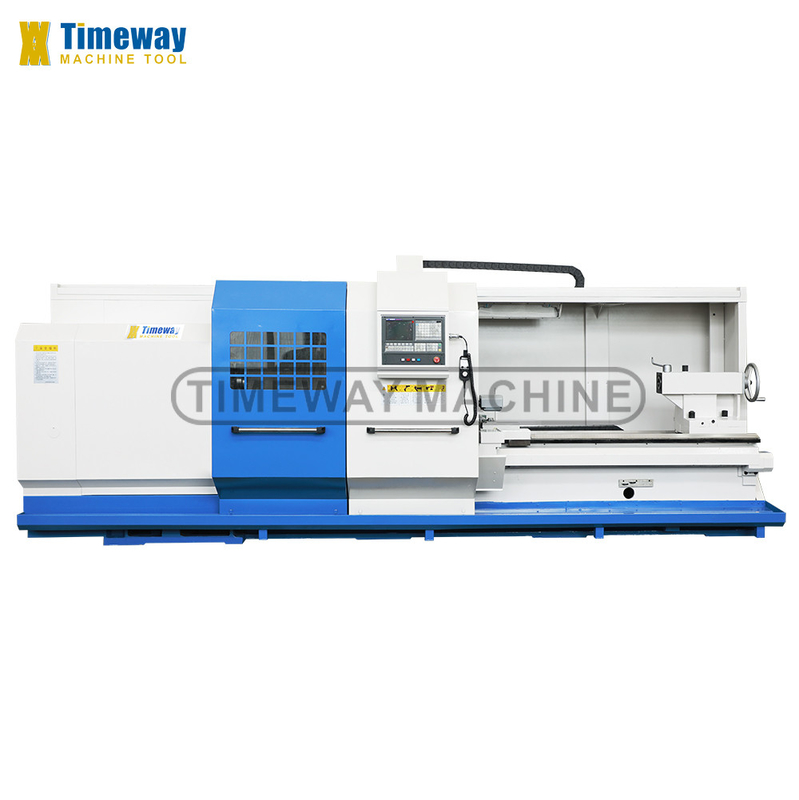

High Precision CNC Heavy Duty Horizontal Lathe Machine AK-800 Made in for Flat Bed Lathe
Product Details:
| Place of Origin: | China |
| Brand Name: | Timeway |
| Model Number: | AK-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 850 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 3000 | Width Of Bed (mm): | 266 Mm |
| Spindle Motor Power(kW): | 15 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 420 Mm |
| Travel (Z Axis)(mm): | 480 Mm | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Dimension(L*W*H): | 3605 2219 1830 | CNC Control System: | FANUC |
| Tool Post Stations: | 6, 4 | Weight (KG): | 4800 |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Lathe Machine CNC |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Processing Type: | Turning CNC Lathe Mahcine | After Warranty Service: | Online Technical Support |
| CNC System: | FANUC SIEMENS GSK | Loading Capacity: | 3000kg |
| Distance Between Centers: | 1000mm | Spindle Bore: | 100 (140 Optional)mm |
| Main Motor Power: | 15kw | Spindle Bore(mm): | 100 |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other | Showroom Location: | Canada, United Kingdom, Italy, France, Germany, Russia, Spain, South Africa, Australia |
| Core Components: | Other | Max. Spindle Speed (r.p.m): | 800 R.p.m |
| Max. Turned Length (mm): | 850 | Marketing Type: | Hot Product |
Product Description
Product Description
Specification
Specification | unit | AK-800 |
Max. swing over bed | mm | 800 |
Max.. swing over cross slide | mm | 480 |
Distance between centers | mm | 1000/1500/2000/3000/4000/5000/6000/8000/- |
Max. turning length | mm | 850/1350/1850/2850/3850/4850/5850/7850/- |
Bed width | mm | 600 |
Loading capacity | kg | 3000 |
Spindle nose | mm | C11 (C15 optional) |
Spindle bore | mm | 100 (140 optional) |
Spindle taper | - | Metric 120 (Metric 150 optional) |
Spindle speed (Manual steps) | rpm | 6-750 (18) |
Spindle speed (Manual 4steps stepless) | rpm | 8-800 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 8-800 |
Center height | mm | 400 |
Chuck size | mm | 400 |
X/Z-axis min. feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 4000/5000 |
Cross travel (X) | mm | 420 |

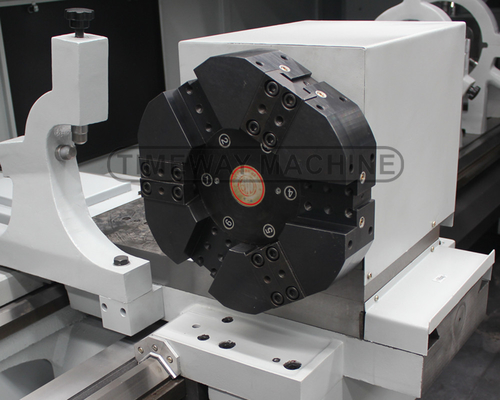

Tool post type | - | V4 (V6/H6/H8 optional) |
Tool change time | s | 2.4 |
Turret repeat positioning accuracy | mm | 0.008 |
Tool section size | mm | 40x40 |
Tailstock quill diameter | mm | 100 |
Tailstock quill travel | mm | 250 |
Tailstock quill taper | - | MT6 (MT5 optional) |
Working accuracy | - | IT6 |
Surface roughness | µm | Ra1.6 |
Main motor power | kw | 15 |
Machine weight | kg | 4800/5300/5600/6000/6800/7600/8250/9750/- |
Machine length | mm | 3605/4105/4645/5600/6430/7600/8485/10485/- |
Machine width | mm | 2219 |
Machine height | mm | 1830 |
CNC system | - | FANUC/GSK/SIEMENS |
STANDARD ACCESSORIES:

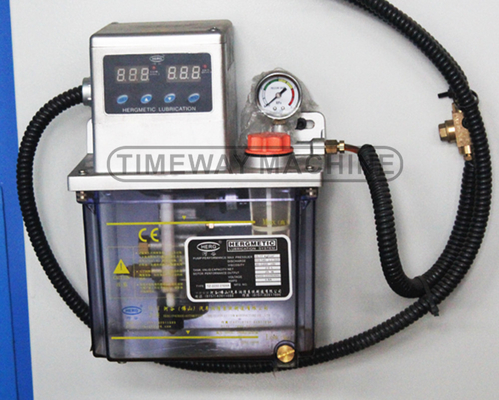

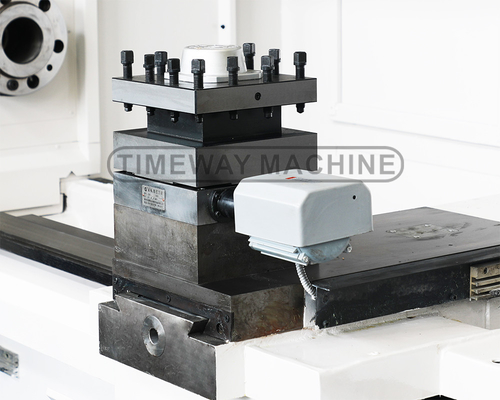

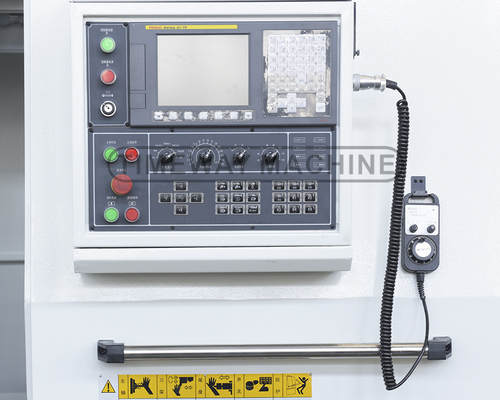

FANUC/GSK/SIEMENS CNC system, 3-jaw chuck, 4-station electric tool-post, Work lamp, Cooling system, Semi-closed guard, Manual pulse generator (MPG), Dead centers, Oil gun, Pilot lamp, Automatic lubrication pump, Manual moving tailstock, Tools & tool-box, Leveling wedge & bolts, Operation manual (English).
OPTIONAL ACCESSORIES:
4-jaw chuck, Steady rest, Follow rest, Hydraulic chuck, Penumatic chuck, Hydraulic tailstock, 6-station tool-post, Live centers, Air conditioner, Chip conveyor, Full guard.
