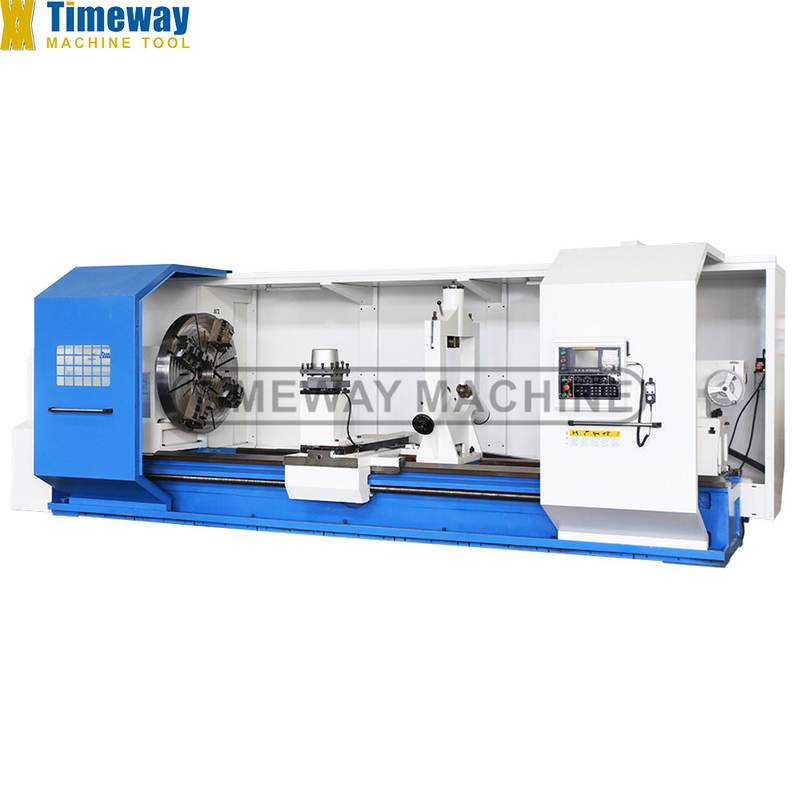

High Precision AK-1800C CNC Metal Lathe Machine with 1410mm Max. Swing over Cross Slide
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AK-1800C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $38,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 12000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 12000 | Width Of Bed (mm): | 1410 Mm |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 800 Mm | Travel (Z Axis)(mm): | 1410 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.003 |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 20000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 5 - 320 R.p.m | Travel (Y Axis)(mm): | 1410 Mm |
| Spindle Taper: | Metric 140 | Cutting Torque: | 58 N.m |
| Rapid Feed Speed(mm/min): | 0 - 3000 Mm/min | Feed Speed(mm/min): | 0 - 6000 Mm/min |
| Min. Time Of Tool Change(s): | 2 | CNC Or Not: | CNC |
| Machine Type: | Lathe Machine CNC | Function: | Machining Metal |
| Precision: | High Precision Machine | Color: | Customer Optional |
| Spindle Speed: | 5-320rpm | Max.swing Over Bed: | 1800mm |
| Keyword: | Cnc Metal Lathe Machine | Loading Capacity: | 10000 (opt: 12000)kg |
| Max. Swing Over Cross Slide: | 1410mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

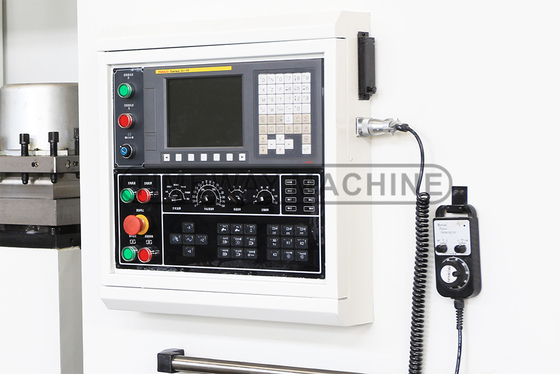

FANUC/GSK/SIEMENS CNC system

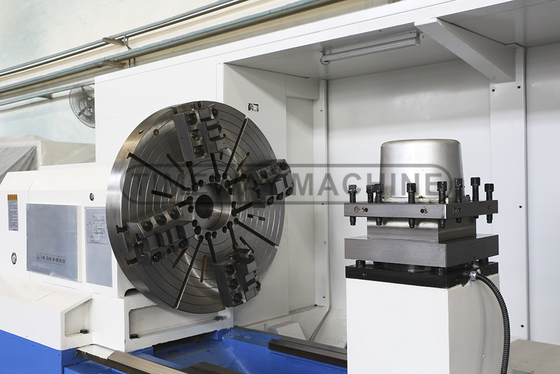

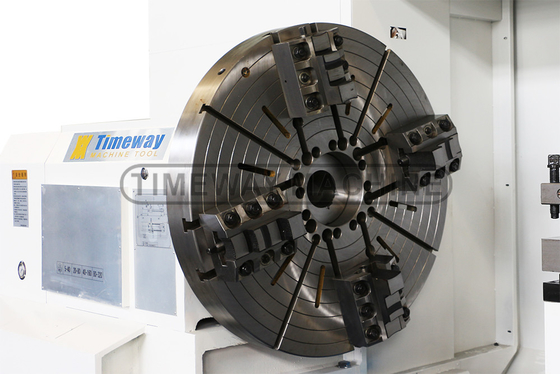

4-jaw chuck,

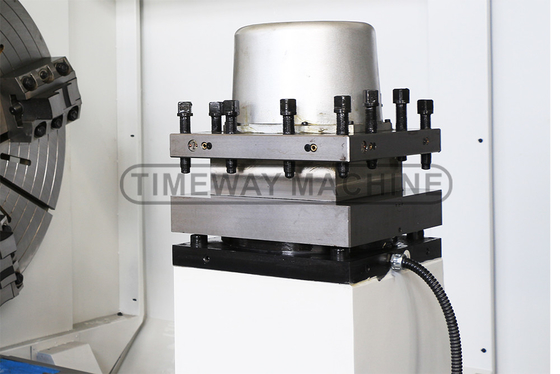

4-station electric tool-post,
Work lamp
Cooling system
Manual pulse generator (MPG)
Dead centers
Oil gun
Pilot lamp
Automatic lubrication pump

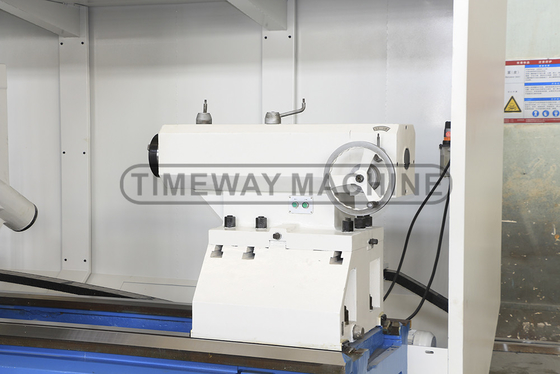

Electric moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
Operation manual (English)
OPTIONAL ACCESSORIES:
6/8-station tool-post
Steady rest
Follow rest
Semi-closed guard
Live centers
Air conditioner
Chip conveyor.
Specification
SPECIFICATION | UNIT | AK-1800C |
Max. swing over bed | mm | 1800 |
Max.. swing over cross slide | mm | 1410 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 970 |
Loading capacity | kg | 10000 (opt: 12000) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |
Chuck size (4-jaw) | - | 1250 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 |
Max. cutting force | N | 29400 |
X/Z-axis min. feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/6000 |
Cross travel (X) | mm | 800 |
Tool post type | - | V4 |
Tool post size | mm | 350x350 |
Tool section size | mm | 40x40 |
Tailstock quill diameter | mm | 220 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Working accuracy | - | IT6-IT7 |
Surface roughness | um | Ra1.6 |
Main motor power | kw | 30 |
Machine weight | kg | 13500/16500/18000/20000/22500/25000/28000/- |
Machine length | mm | 6520/7520/8520/9520/11520/13520/15520/- |
Machine width | mm | 2665 |
Machine height | mm | 2680 |
