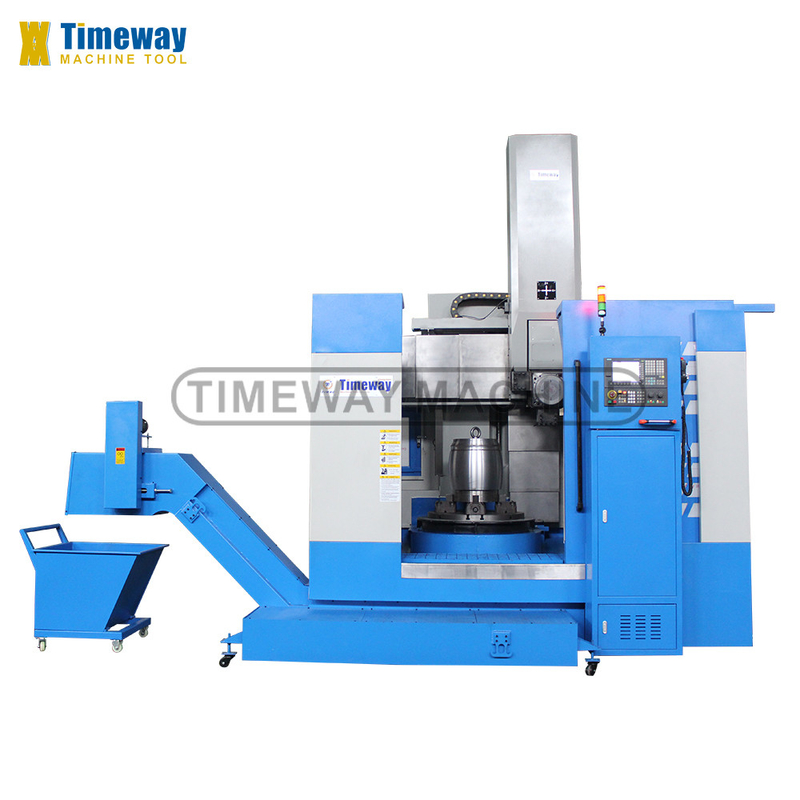

High Precision VLK800E Vertical CNC Lathe 800 mm Travel Positioning Accuracy ±0.01
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | VLK800E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 800 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 2000 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 800 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Positioning Accuracy (mm): | ±0.01 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| Dimension(L*W*H): | 4020x3150x3700 Mm | CNC Control System: | Siemens |
| Tool Post Stations: | Other | Weight (KG): | 10000 |
| Warranty: | 1 Year | Key Selling Points: | Long Service Life |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 1 - 315 R.p.m |
| Travel (Y Axis)(mm): | 0 Mm | Spindle Taper: | BT40 |
| Cutting Torque: | 6 N.m | Rapid Feed Speed(mm/min): | 1 - 2000 Mm/min |
| Feed Speed(mm/min): | 1 - 500 Mm/min | Min. Time Of Tool Change(s): | 6 |
| Worktable Diameter: | 800 Mm | Max. Swing Diameter: | 950 Mm |
| Max. Turning Diameter: | 800 Mm | Max. Height Of The Workpiece: | 800 Mm |
| Max. Weight Of The Workpiece: | 2 Tons | Ram Section: | 180x180 Mm |
| Max. Torque Of Worktable: | 6 KN.m | Worktable Speed Steps: | 2 Gears Stepless |
| Worktable Speed Range: | 1-315 Mm/min | Vertical Tool Post Feed Level: | Stepless |
Product Description
Product Description

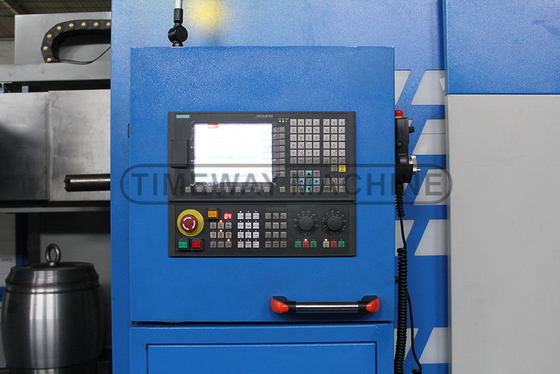

The machine is controlled by a Siemens CNC system.
The X-aixs and Z-aixs are both driven by AC servo motors.
The main transmission is driven by a set of horizontal spindle servo motors.
Specification
Specifications | VLK800E |
Worktable diameter | 800 mm |
Max. swing diameter | 950 mm |
Max. turning diameter | 800 mm |
Max. height of the workpiece | 800 mm |
Max. weight of the workpiece | 2 tons |
Max. cutting force of vertical tool holder | 20 kN |
Max. torque of worktable | 6 KN.m |
Worktable speed steps | 2 gears stepless |
Worktable speed range | 1-315 mm/min |
Vertical tool post feed level | stepless |
Vertical tool post feed range | 1-500 mm/min |
Tool holder rapid movement speed | 2000 mm/min |
Vertical tool post ram vertical travel (Z-axis) | 650 mm |
Ram section | 180x180 mm |
The ram can pass the smallest diameter | 260 mm |
Ram section | 330x210 mm |
The ram can pass the smallest diameter | 530 mm |
Tool size | 40 mm |
Feed motor torque ( X/Z ) | 11 N.m |
Feed motor power ( X/Z ) | 1.75 kw |
Max. travel of beam | 550 mm |
Main motor power ( AC servo ) | 22 kw |
Cross beam lifting motor power | 2.2 kw |
Total power capacity | 32 kVA |
Machine dimensions | 4020×3150×3700 mm |
Machine weight | 10 tons |
