Slant Bed CNC Lathe CK-36 Take Your Business to the Next Level with CNC Technology
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | CK-36 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 500 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 2000 | Width Of Bed (mm): | 52 Mm |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 230 Mm | Travel (Z Axis)(mm): | 600 Mm |
| Positioning Accuracy (mm): | ±0.002 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| Dimension(L*W*H): | 2900x1800x1750mm | Tool Post Stations: | 8 |
| Weight (KG): | 3200 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 0 - 3000 R.p.m | Travel (Y Axis)(mm): | 220 Mm |
| Spindle Taper: | Metric | Cutting Torque: | 120 N.m |
| Rapid Feed Speed(mm/min): | 0 - 2400 Mm/min | Feed Speed(mm/min): | 0 - 2400 Mm/min |
| Min. Time Of Tool Change(s): | 2 | CNC Or Not: | CNC |
| Machine Type: | Slant Lathe Machine | Control System: | FANUC CNC System |
| Precision: | High Precision Machine | Spindle Speed: | 3000rpm |
| Max. Turning Diamater: | 210mm | Max.swing Over Bed: | 550mm |
| Max. Turning Length: | 500mm | Main Motor Power: | 7.5kw |
| Color: | Customer Optional | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
FANUC CNC system
8-station hydraulic tool post
Hydraulic chuck
Electronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Full protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals
OPTIONAL ACCESSORIES:
GSK
SIEMENS CNC system
Air conditioner
Hydraulic hollow chuck
Tool setter
Bar feeder
Hydraulic tailstock
Chain type chip conveyor
Specification
SPECIFICATION | UNIT | CK-36 |
Max. swing over bed | mm | 550 |
Max. swing over cross slide | mm | 220 |
Standard turning diameter | mm | 210 |
Max. turning diameter | mm | 360 |
Max. turning length | mm | 500 |
Spindle speed | rpm | 3000 |
Spindle nose | - | A2-6 |
Spindle bore | mm | 62 |
Hydraulic chuck size | mm | 200 |
Cross travel (X) | mm | 230 |
Longitudinal travel (Z) | mm | 600 |
X/Z-axis rapid feed speed | m/min | 24/24 |
Hydraulic cool post type | - | 80-8T |
Tool section size | mm | 25x25/Φ32 |
Tailstock quill diameter | mm | 110 |
Tailstock quill travel | mm | 100 |
Tailstock quill taper | - | MT5 |

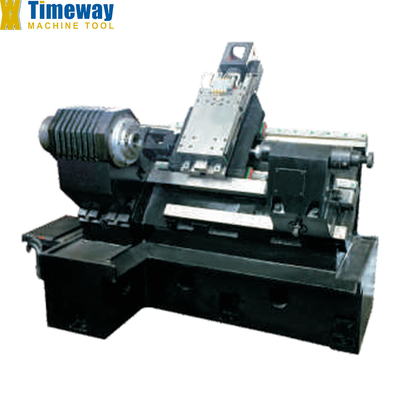

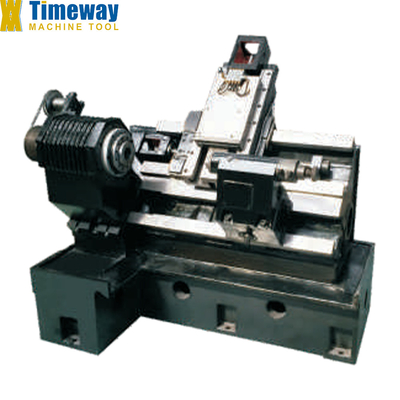

Bed structure | - | 45° Integral bed |
Guideway type | - | Linear/Sliding |
Main motor power | kw | 11 |
Power supply | kva | 25 |
Machine dimensions (LxWxH) | mm | 2900x1800x1750 |
Machine weight | kg | 3200 |
