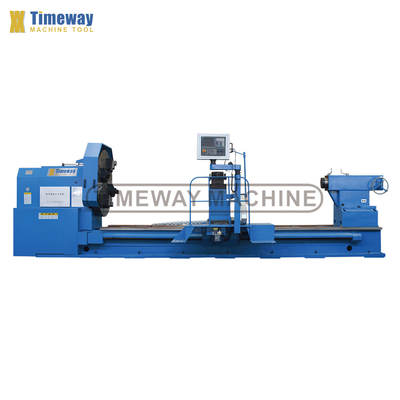

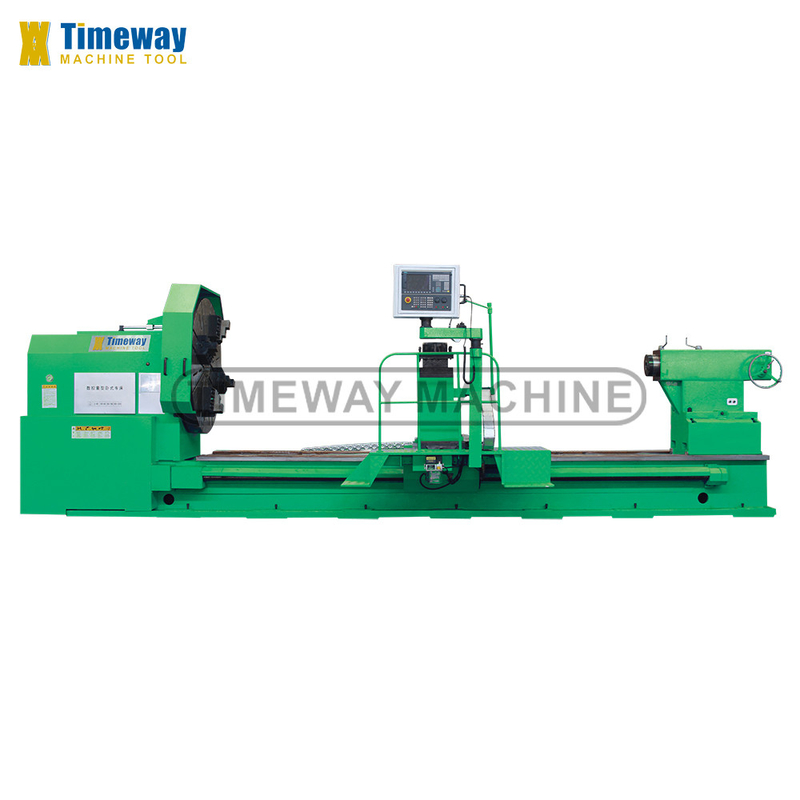

Feed Speed mm/min 0 4000 mm/min Timeway AK-1600 Heavy Duty Horizontal CNC Lathe Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AK-1600 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 12000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 16000 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 850 Mm |
| Travel (Z Axis)(mm): | 1250 Mm | Positioning Accuracy (mm): | ±0.03 |
| Repeatability (X/Y/Z) (mm): | ±0.012 | Tool Post Stations: | 4 |
| Weight (KG): | 15000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 3 - 320 R.p.m | Travel (Y Axis)(mm): | 900 Mm |
| Spindle Taper: | Metric 140 | Cutting Torque: | 125 N.m |
| Rapid Feed Speed(mm/min): | 0 - 6000 Mm/min | Feed Speed(mm/min): | 0 - 4000 Mm/min |
| Min. Time Of Tool Change(s): | 2 | CNC Or Not: | CNC |
| Machine Type: | Lathe Machine CNC | Function: | Machining Metal |
| Precision: | High Precision Machine | Processing Type: | Metal Processing Machine |
| Color: | Customer Optional | Max.swing Over Bed: | 1600mm |
| Max. Swing Over Cross Slide: | 1250mm | Bed Width: | 1100mm |
| Loading Capacity: | 16 (opt: 20)tons | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

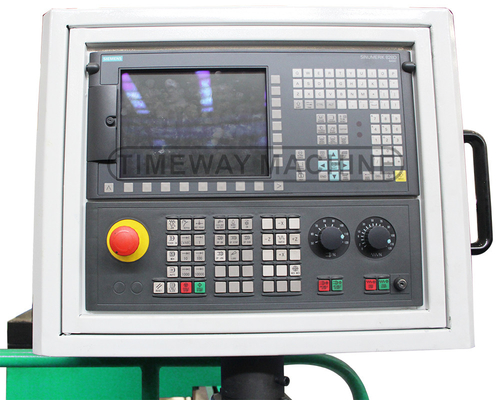

FANUC/GSK/SIEMENS CNC system,

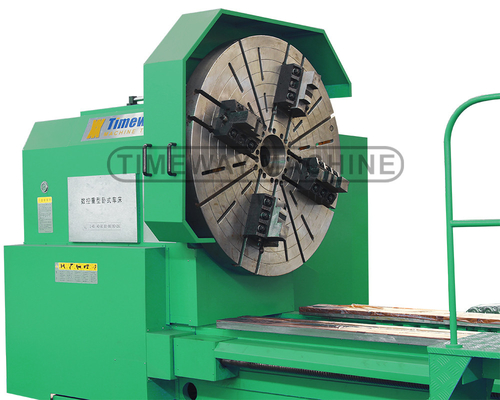

4-jaw chuck,
4-station electric tool-post,
Work lamp,
Cooling system,
Manual pulse (MPG),
Dead centers,
Oil gun,
Pilot lamp,
Automatic lubrication pump,
Electric moving tailstock,
Tools & tool-box,
Leveling wedge & bolts,
Operation manual (English).
Operation manual (English).
OPTIONAL ACCESSORIES:
6/8-station tool-post,
Steady rest,
Roller support,
Full guard,
Live centers,
Air conditioner,
Chip conveyor.
Specification
SPECIFICATION | UNIT | AK-1600 |
Max. swing over bed | mm | 1600 |
Max.. swing over cross slide | mm | 1250 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 1100 |
Chuck size (4-jaw) | mm | 1400 |
Loading capacity | tons | 16 (opt: 20) |
Spindle nose | mm | A2-15 |
Spindle bore | mm | 100 |
Spindle taper | - | Metric 140 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 3-320 |
Spindle speed (manual) | rpm | Forward: 3.15-315(21); Reverse: 3.5-291(12) |
Max. cutting force | N | 39200 |
X/Z-axis rapid feed speed | mm/min | 4000/6000 |
Cross travel (X) | mm | 850 |
Tool post type | - | V4 |
Tool post size | mm | 380x380 |
Max. feed force (X) | N | 10875 |
Tool section size | mm | 50x50 |

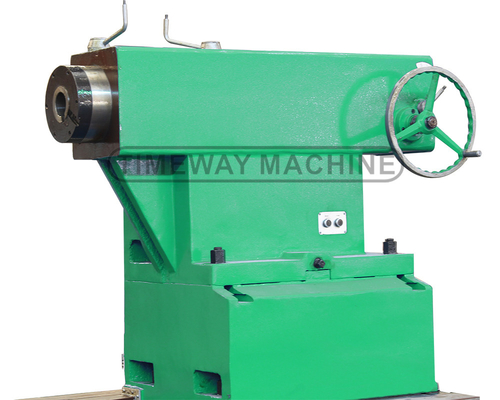

Tailstock quill diameter | mm | 260 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | Metric 80 |
Working accuracy | - | IT7 |
Surface roughness | um | Ra2.5-3.2 |
Main motor power | kw | 30 |
Machine weight | kg | 15000/17200/19400/21560/26000/30400/34800/- |
Machine length | mm | 6400/7400/8400/9400/11400/13400/15400/- |
Machine width | mm | 3200 |
Machine height | mm | 2750 |
