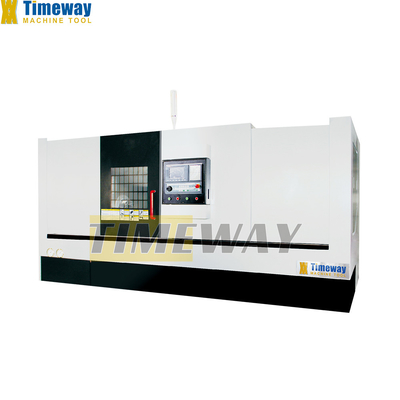

CK-80 CNC Slant Bed Lathe /Torno CNC with Single Spindle and 750mm Travel Z Axis
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | CK-80 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 800 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 2000 | Width Of Bed (mm): | 640mm |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 400 Mm | Travel (Z Axis)(mm): | 750 Mm |
| Positioning Accuracy (mm): | ±0.002 | Repeatability (X/Y/Z) (mm): | ±0.012 |
| Dimension(L*W*H): | 3800x2200x2200mm | Tool Post Stations: | 12, 8 |
| Weight (KG): | 5800 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 0 - 1500 R.p.m | Travel (Y Axis)(mm): | 640 Mm |
| Spindle Taper: | Other | Cutting Torque: | 120 N.m |
| Rapid Feed Speed(mm/min): | 0 - 1600 Mm/min | Feed Speed(mm/min): | 0 - 1200 Mm/min |
| Min. Time Of Tool Change(s): | 0.7 | CNC Or Not: | CNC |
| Machine Type: | Slant Lathe Machine | Control System: | FANUC CNC System |
| Precision: | High Precision Machine | Spindle Speed: | 1500rpm |
| Max. Turning Diamater: | 660mm | Max.swing Over Bed: | 800mm |
| Max. Swing Over Cross Slide: | 640mm | Main Motor Power: | 7.5kw |
| Color: | Customer Optional | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
FANUC CNC system

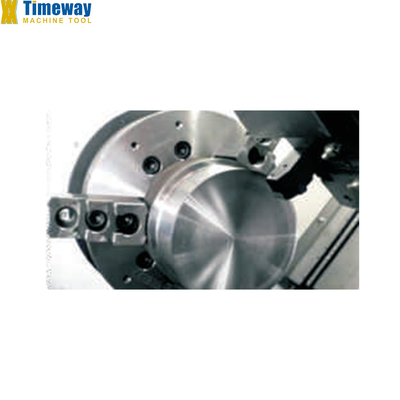

Hydraulic chuck
8/12-station tool turret
Hydraulic tool postElectronic handwheel
Lubrication system
Cooling system
Work lamp
Pilot lamp
Protection guard
Protection guard
Heat exchanger
Leveling blocks & bolts
Tools & tool-box
Operation manuals(English)
OPTIONAL ACCESSORIES:
GSK
SIEMENS CNC system
Air conditioner
Tool setter
Chain type chip conveyor
Specification
SPECIFICATION | UNIT | CK-80 |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 640 |
Standard turning diameter | mm | 460 |
Max. turning diameter | mm | 660 |
Max. turning length | mm | 750/1500/3000 |
Max. diameter of bar | mm | 90 |
Spindle speed | rpm | 1500 |
Spindle nose | - | A2-11 |
Spindle bore | mm | 112 |
Chuck size | mm | 380 |
Cross travel (X) | mm | 400 |
Longitudinal travel (Z) | mm | 860/1640/3200 |
X/Z-axis rapid feed speed | m/min | 12/16 (sliding: 12/12) |
Hydraulic cool post type | - | 125-12T |
Tool section size | mm | 25x25/Φ40 |
Tailstock quill diameter | mm | 150 |
Tailstock quill travel | mm | 150 |
Tailstock quill taper | - | MT5, rotary |

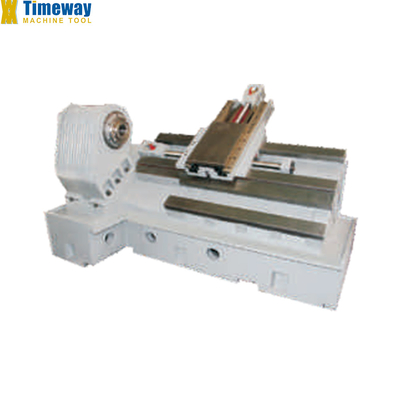

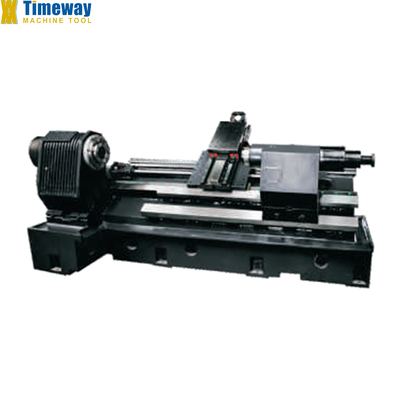

Bed structure | - | 30° Integral bed |
Guideway type | - | Linear/Sliding |
Working accuracy | mm | IT6 |
X-axis repositioning accuracy | mm | 0.008 |
Z-axis repositioning accuracy | mm | 0.01/0.013 |
Roughness | um | Ra1.6 |
Main motor power | kw | 22 |
Power supply | kva | 50 |
Machine dimensions (LxWxH) | mm | 3800/4400/5900x2200x2200 |
Machine weight | kg | 5800/6500/7800 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
