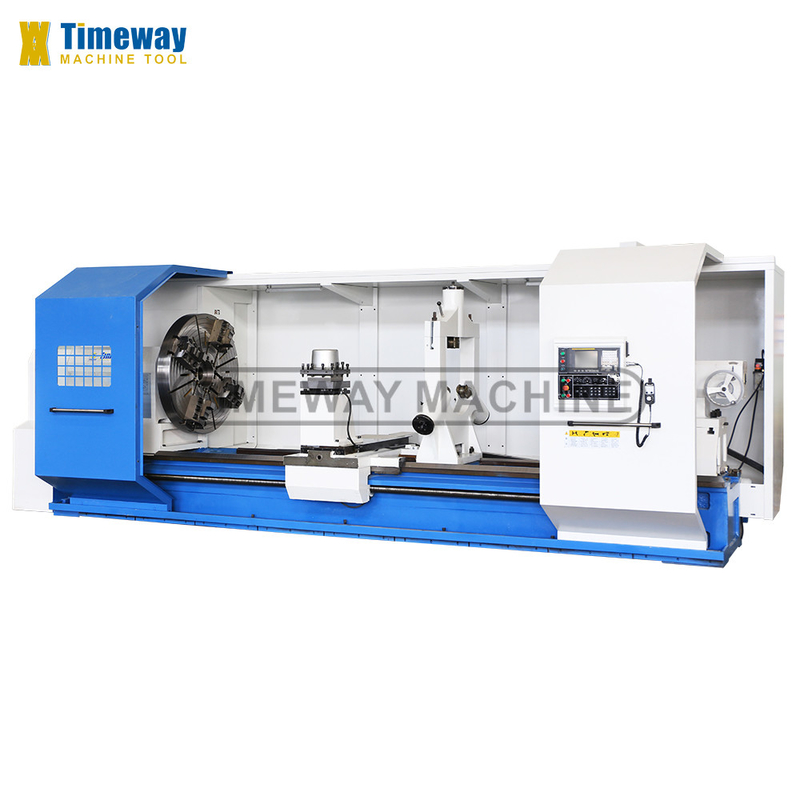

Easy-to-Operate AK-1250C CNC Turning Center Torno with 5 320 r.p.m Spindle Speed
Product Details:
| Place of Origin: | China |
| Model Number: | AK-1250C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2800 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 10000 | Width Of Bed (mm): | 970 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 700 Mm | Travel (Z Axis)(mm): | 1000 Mm |
| Positioning Accuracy (mm): | ±0.006 | Repeatability (X/Y/Z) (mm): | ±0.008 |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 13500 | Warranty: | 1 Year, One Year Guarantee |
| Key Selling Points: | High Safety Level, High-accuracy, Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 5 - 320 R.p.m | Travel (Y Axis)(mm): | 666 Mm |
| Spindle Taper: | Metric 140 | Cutting Torque: | 66 N.m |
| Rapid Feed Speed(mm/min): | 3000 - 6000 Mm/min | Feed Speed(mm/min): | 3000 - 6000 Mm/min |
| Min. Time Of Tool Change(s): | 6 | CNC Or Not: | CNC Lathe Machine |
| Machine Type: | Lathe Machine CNC | Product Name: | CNC Lathe Mechine |
| Keyword: | Cnc Metal Lathe Machine | Function: | Machining Metal |
| After-sales Service Provided: | Online Support | Product Type: | Cnc Horizontal Turning Lathe Machine |
| Precision: | High Precision Machine | Max. Swing Diameter: | 1250mm |
Product Description
Product Description
Specification
Specification | AK-1250C | |
Max. swing over bed | mm | 1250 |
Max.. swing over cross slide | mm | 880 |
Distance between centers | mm | 3000/4000/5000/6000/8000/10000/12000/- |
Max. turning length | mm | 2800/3800/4800/5800/7800/9800/11800/- |
Bed width | mm | 970 |
Loading capacity | kg | 10000 (opt: 12000) |
Spindle nose | - | A2-15 |
Spindle bore | mm | 130 |
Spindle taper | - | Metric 140 |

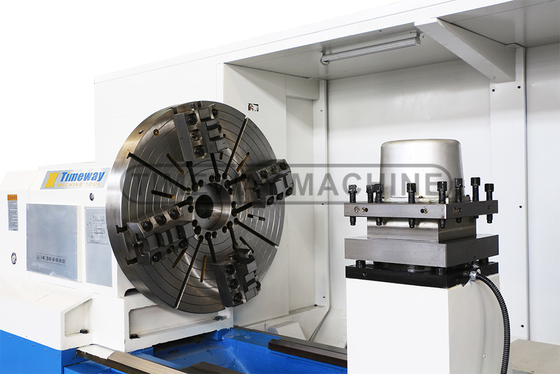

Chuck size (4-jaw) | - | 1250 |
Spindle speed (Hydraulic 4steps, stepless) | rpm | 5-320 |
Max. cutting force | N | 29400 |
X/Z-axis min. feed unit | mm | 0.001/0.001 |
X/Z-axis rapid feed speed | mm/min | 3000/6000 |
Cross travel (X) | mm | 700 |
Tool post type | - | V4 |
Tool post size | mm | 350x350 |
Tool section size | mm | 40x40 |

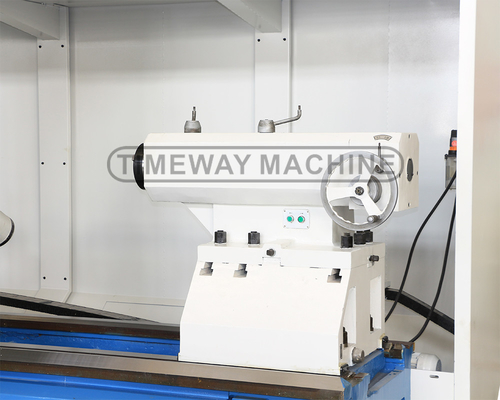

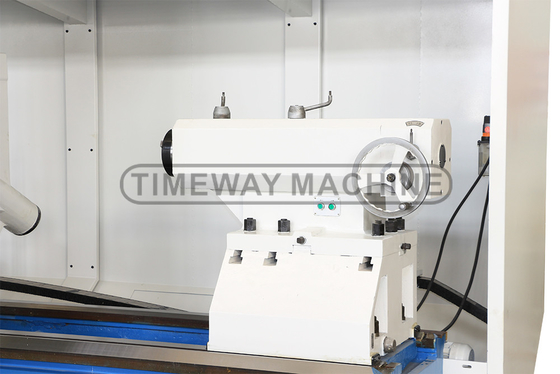

Tailstock quill diameter | mm | 220 |
Tailstock quill travel | mm | 300 |
Tailstock quill taper | - | MT6 |
Working accuracy | - | IT6-IT7 |
Surface roughness | um | Ra1.6 |
Main motor power | kw | 30 |
Machine weight | kg | 13500/16500/18000/20000/22500/25000/28000/- |
Machine length | mm | 6520/7520/8520/9520/11520/13520/15520/- |
Machine width | mm | 2665 |
Machine height | mm | 2680 |
STANDARD ACCESSORIES:

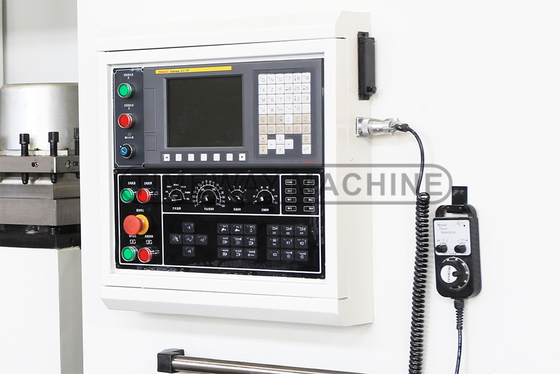

FANUC/GSK/SIEMENS CNC system, 4-jaw chuck, 4-station electric tool-post, Work lamp, Cooling system, Manual pulse generator (MPG), Dead centers, Oil gun, Pilot lamp, Automatic lubrication pump, Electric moving tailstock, Tools & tool-box, Leveling wedge & bolts, Operation manual (English).
OPTIONAL ACCESSORIES:
6/8-station tool-post, Steady rest, Follow rest, Semi-closed guard, Live centers, Air conditioner, Chip conveyor.
