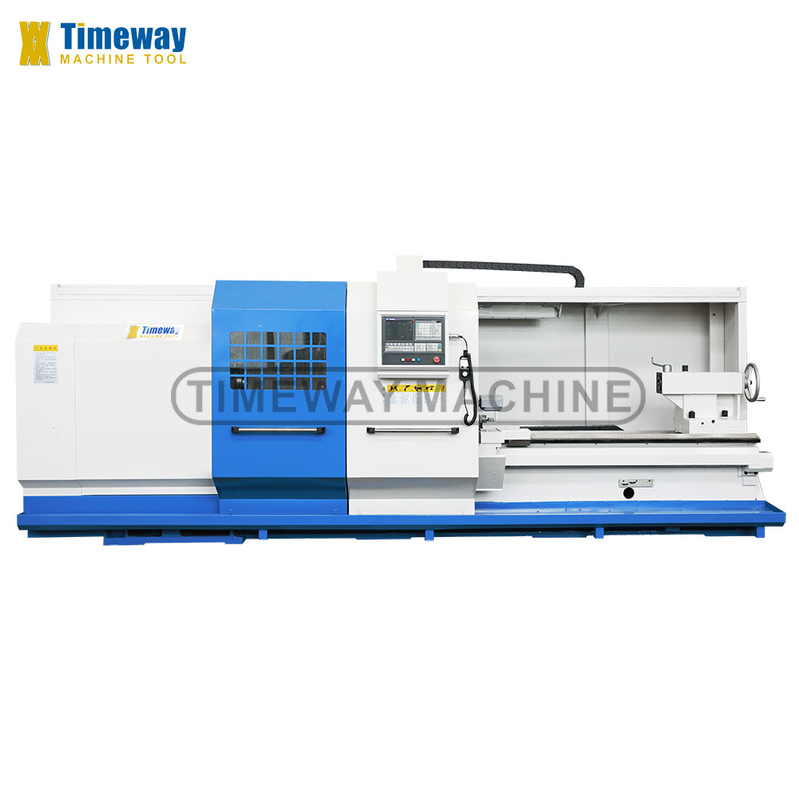

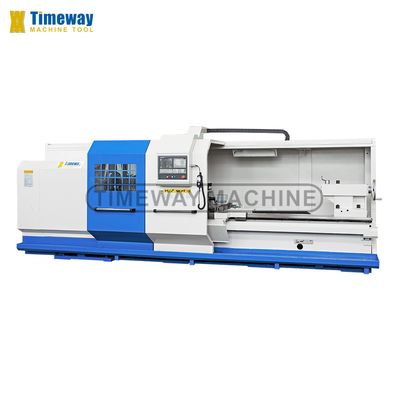

420 mm Travel High Precision Horizontal Turning Tornos AK800 CNC Heavy Duty Machining Capability
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | AK 800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000, 1500, 2000, 3000, 4000, 5000, 6000, 8000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 3000 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 420 Mm |
| Travel (Z Axis)(mm): | 420 Mm | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 3605 2219 1830 |
| Tool Post Stations: | 4 | Weight (KG): | 4800 |
| Warranty: | 1 Year, 1-year | Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, High Productivity, Long Service Life, Other, Easy To Operate, Digital |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 8 - 800 R.p.m |
| Travel (Y Axis)(mm): | 0 Mm | Spindle Taper: | Metric120, Metric150 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 0 - 4000 Mm/min |
| Feed Speed(mm/min): | 0 - 4000 Mm/min | Min. Time Of Tool Change(s): | 6 |
| CNC Or Not: | CNC Lathe Machine | Machine Type: | Flat Bed CNC Lathe |
| Product Name: | CNC Lathe Mechine | Keyword: | Automatic CNC Lathe Machine |
| Name: | Metal Turning Machine | Function: | Machining Metal |
| After-sales Service Provided: | Online Support | Product Type: | Economical CNC Lathe |
| Precision: | High Precision Machine | ||
Product Description
Product Description
Specification
Max. swing over bed | 800 |
Max.. swing over cross slide | 480 |
Distance between centers | 1000 |
Max. turning length | 850 |
Bed width | 600 |
Loading capacity | 3000 |
Spindle nose | C11 (C15 optional) |
Spindle bore | 100 (140 optional) |
Spindle taper | Metric 120 (Metric 150 optional) |
Spindle speed (Manual steps) | 6-750 (18) |
Spindle speed (Manual 4steps stepless) | 8-800 |
Spindle speed (Hydraulic 4steps, stepless) | 8-800 |
Center height | 400 |
Chuck size | 400 |
X/Z-axis min. feed unit | 0.001/0.001 |
X/Z-axis rapid feed speed | 4000/5000 |
Cross travel (X) | 420 |

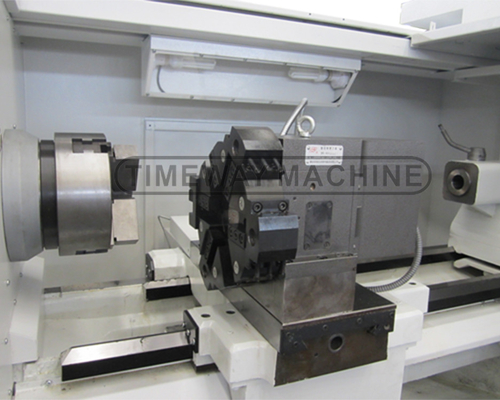

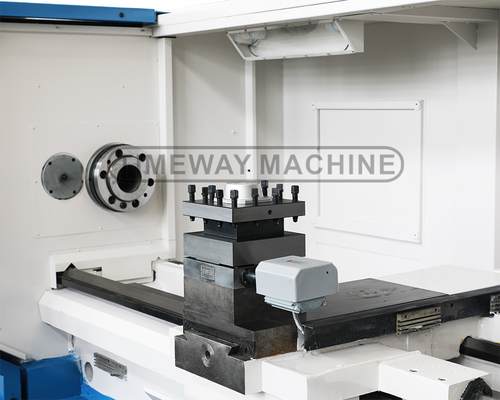

Tool post type | V4 (V6/H6/H8 optional) |
Tool change time | 2.4 |
Turret repeat positioning accuracy | 0.008 |
Tool section size | 40x40 |
Tailstock quill diameter | 100 |
Tailstock quill travel | 250 |
Tailstock quill taper | MT6 (MT5 optional) |
Working accuracy | IT6 |
Surface roughness | Ra1.6 |
Main motor power | 15 |
Machine weight | 4800 |
Machine length | 3605 |
Machine width | 2219 |
Machine height | 1830 |

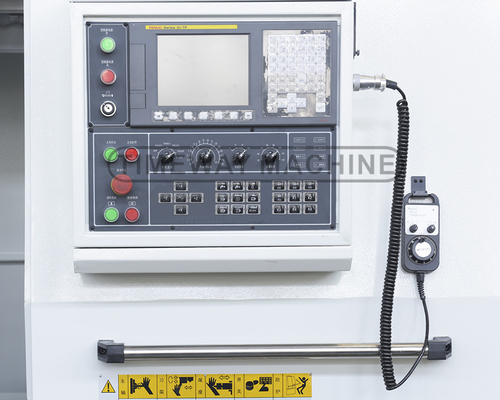

CNC system | FANUC/GSK/SIEMENS |
STANDARD ACCESSORIES:
FANUC/GSK/SIEMENS CNC system, 3-jaw chuck, 4-station electric tool-post, Work lamp, Cooling system, Semi-closed guard, Manual pulse generator (MPG), Dead centers, Oil gun, Pilot lamp, Automatic lubrication pump, Manual moving tailstock, Tools & tool-box, Leveling wedge & bolts, Operation manual (English).
OPTIONAL ACCESSORIES:
4-jaw chuck, Steady rest, Follow rest, Hydraulic chuck, Penumatic chuck, Hydraulic tailstock, 6-station tool-post, Live centers, Air conditioner, Chip conveyor, Full guard.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
