* The machine is suitable for processing large and thin and heavy irregular workpiece; No the workpiece roundness error due to inertia weight, ensure that the roundness precision of the workpiece. Due to the weight of workpiece, so workpiece and fixture can ensure that closed, short workpiece loading and unloading time and stability.
* The column,beam, and ram guideway adopt grinding after quenching, have super wear resistance and prolong the service life; Unique whole enclosed shield prevent scraps and coolant splash, achieve environmental protection purposes.
 |

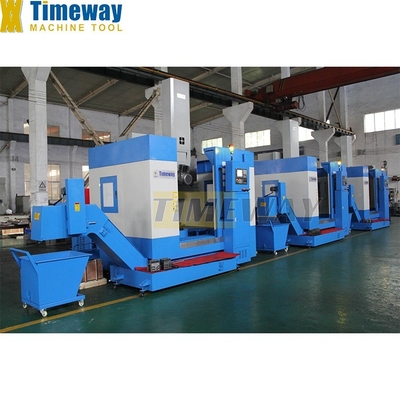

VLK Series CNC Single Column Vertical Turning Lathe Machine for Precise 2-Axis Machining
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac/Timeway |
| Model Number: | VLK800E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/pieces 1-2 pieces |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 800 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 2000 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 550 Mm | Travel (Z Axis)(mm): | 650 Mm |
| Positioning Accuracy (mm): | ±0.005 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| Dimension(L*W*H): | 4020*3150*3700mm | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 8000 |
| Warranty: | 1 Year, 1-year | Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, Long Service Life, Easy To Operate, Flexible Manufacturing |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 2 - 315 R.p.m |
| Travel (Y Axis)(mm): | 800 Mm | Spindle Taper: | ISO40, BT40, BT50 |
| Cutting Torque: | 6 N.m | Rapid Feed Speed(mm/min): | 0.1 - 2000 Mm/min |
| Feed Speed(mm/min): | 0.1 - 500 Mm/min | Min. Time Of Tool Change(s): | 0.7 |
| CNC Or Not: | CNC Lathe Machine | Product Name: | Single Column CNC Vertical Lathe Mechine |
| Product Type: | Vertical CNC Machine | Model: | VLK800E |
| Max.swing Diameter: | 950mm | Max. Turning Diameter: | 800mm |
| Max. Height: | 800mm | Loading Capacity: | 2000kg |
| Main Motor Power: | 22kw | ||
Product Description
Products Description

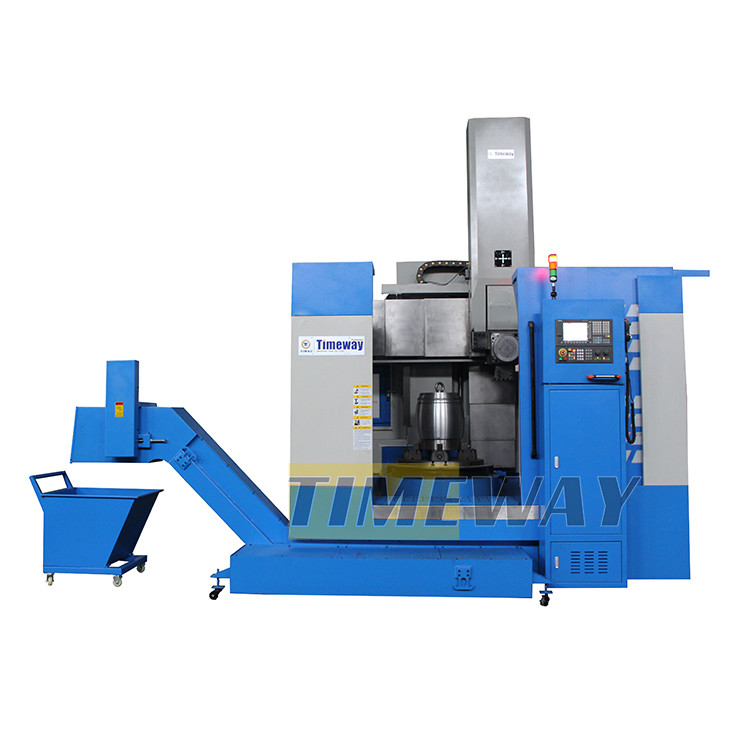

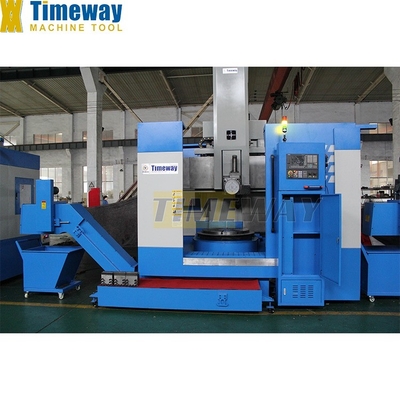

Single Column CNC Vertical Lathe
VLK800E VLK1250E VLK1600E VLK2000E
Machine Summary
* Automatic lubrication system * Full eclosed shield * Electrical cabinet with air condition * Precise oil cooler * SIEMENS 808D * Automatic chip removal(side removal) | * SIEMENS 828D * FANUC 0i-TF * special fixture |
Specifications | Unit | VLK800E | VLK1250E | VLK1600E | VLK2000E | |||
Max. swing diameter | mm | 950 | 1250 | 1600 | 2000 | |||
Max. turning diameter | mm | 800 | 1250 | 1600 | 2000 | |||
Max. height of workpiece | mm | 800 | 1000 | 1000 | 1250 | |||
Max. weight of workpiece | kg | 2000 | 5000 | 8000 | 12000 | |||
Main motor power | kw | 22 | 22 | 30 | 37 | |||
Worktable diameter | mm | 800 | 1010 | 1400 | 1800 | |||
Max. torque of worktable | KN.m | 10 | 17.5 | 25 | 32 | |||
Worktable speed range | rpm | 2-320 | 1.25-200 | 1-160 | 4-125 | |||
Number of tool station | pcs | 4 | 4 | 4 | 4 | |||
Tool shank section of external turning tool | mm | 32x40 | 32x40 | 32x40 | 32x40 | |||
Drive type | - | Electric | Electric | Electric | Electric | |||
X-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 | |||
Z-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 | |||
X-axis travel | mm | -20~550 | -20~800 | -20~1030 | -20~1150 | |||
Z-axis travel | mm | 650 | 650 | 800 | 800 | |||
Feed range(X/Z) | mm | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 | |||
Rapid feed speed | mm/min | 2000 | 2000 | 2000 | 2000 | |||
CNC system | - | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | |||
Servo motor torque(X/Z) | N.m | 11/11 | 11/11 | 15/11 | 15/11 | |||
Power capacity | Kva | 30 | 37 | 45 | 52 | |||
Machine net weight | kg | 8500 | 11000 | 14500 | 18500 | |||
Machine dimension (LxWxH) | cm | 430x238x429 | 478x257x440 | 563x301x466 | 580x368x494 | |||
Chip conveyor | - | Chain type | Chain type | Chain type | Chain type | |||
Standard | - | Automatic lubrication system, Full closed guard, air conditioner, Oil cooler | ||||||
Optional | - | SIEMENS 828D, FANUC 0i-TF, special fixture | ||||||
Machine Details
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features. 2. Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency. 3. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials. 4. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving. 5. The machine is mainly composed of column, worktable, beam, vertical tool post, main drive gearbox, beam lifting mechanism, vertical tool post feeding mechanism, beam guide protection device, complete machine full enclosure, electrical system, hydraulic system, cooling system, etc.
===================================

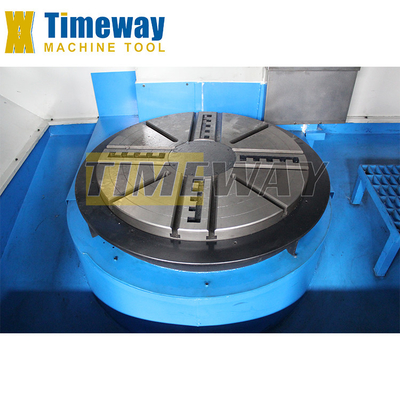

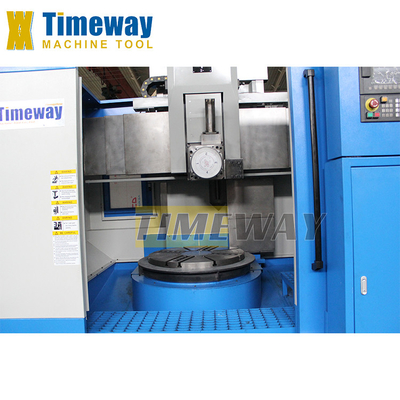

>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
===================================

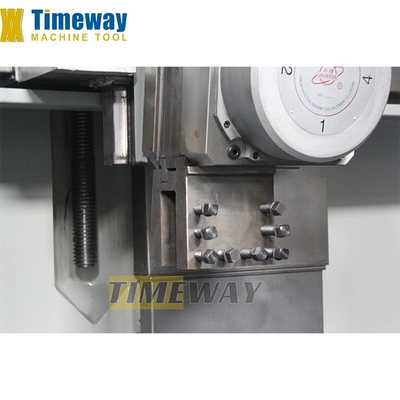

>> Four station electrical tool-post: high positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder, more accurate positioning, greater clamping force.
===================================
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
===================================
>> According to special requirements, the whole machine cover, chip conveyor.
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
