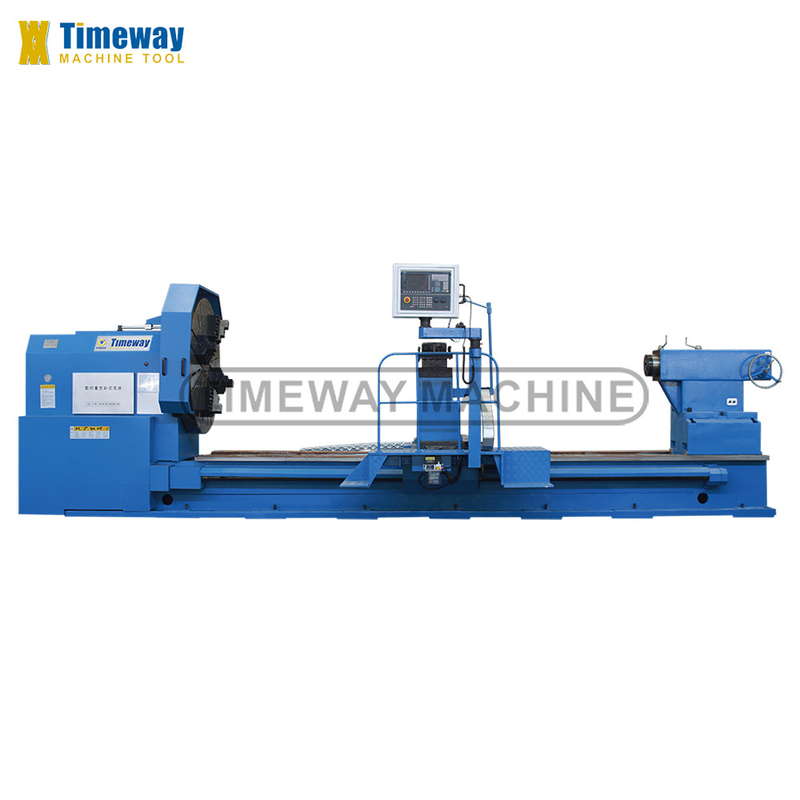

15000 KG Weight CNC Heavy Duty Horizontal Tornos with 850 mm Travel X Axis
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | AK2000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $140,000.00/sets 1-1 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2800 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 16000 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 850 Mm |
| Travel (Z Axis)(mm): | 800 Mm | Positioning Accuracy (mm): | ±0.01 |
| Repeatability (X/Y/Z) (mm): | ±0.008 | Dimension(L*W*H): | 6400 3200 2950 |
| Tool Post Stations: | 8, 6, 4 | Weight (KG): | 15000 |
| Warranty: | 1 Year, 1-year | Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, High Productivity, Long Service Life, Easy To Operate, High Rigidity, Digital, Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 3 - 250 R.p.m |
| Travel (Y Axis)(mm): | 800 Mm | Spindle Taper: | Metric140 |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 0 - 8000 Mm/min |
| Feed Speed(mm/min): | 0 - 6000 Mm/min | Min. Time Of Tool Change(s): | 6 |
| CNC Or Not: | CNC Lathe Machine | Keyword: | Automatic CNC Lathe Machine |
| Product Name: | CNC Lathe Mechine | Machine Type: | Lathe Machine CNC |
| Function: | Machining Metal | After-sales Service Provided: | 1 Year |
| Application: | Metal Turning Milling Drilling | Model: | AK2000 |
| Processing Type: | Metal Processing Machine | ||
Product Description
Product Description
Specification
Max. swing over bed | 2000mm |
Max.. swing over cross slide | 1600mm |
Distance between centers | 3000mm |
Max. turning length | 2800mm |
Bed width | 1100mm |

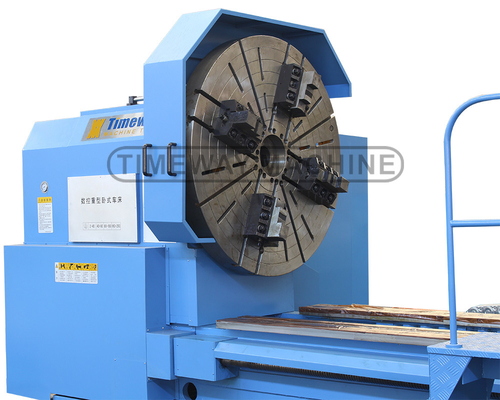

Chuck size (4-jaw) | 1600mm |
Loading capacity | 16 (opt: 20)tons |
Spindle nose | A2-15mm |
Spindle bore | 100mm |
Spindle taper | Metric 140 |
Spindle speed (Hydraulic 4steps, stepless) | 3-250rpm |
Spindle speed (manual) | Forward: 3.15-315(21); Reverse: 3.5-291(12)rpm |
Max. cutting force | 39200N |
X/Z-axis rapid feed speed | 4000/6000mm/min |
Cross travel (X) | 850mm |

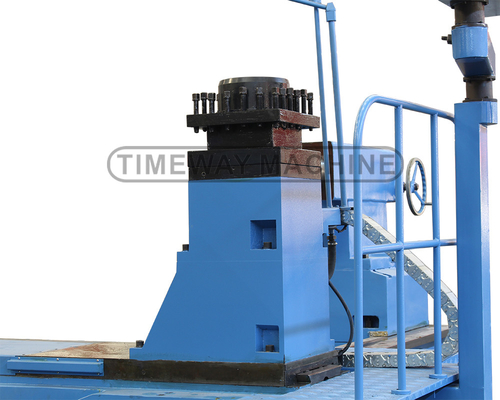

Tool post type | V4 |
Tool post size | 380x380mm |
Max. feed force (X) | 10875N |
Tool section size | 50x50mm |

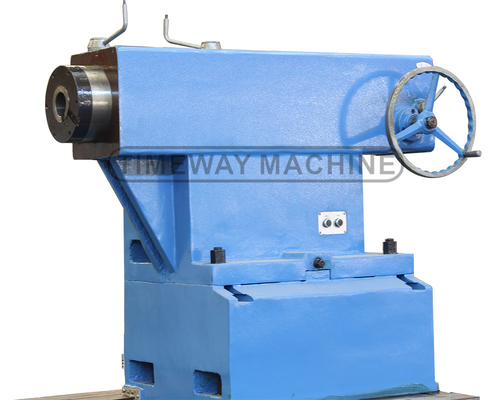

Tailstock quill diameter | 260mm |
Tailstock quill travel | 300mm |
Tailstock quill taper | Metric 80 |
Working accuracy | IT7 |
Surface roughness | Ra2.5-3.2µm |
Main motor power | 30kw |
Machine weight | 15000kg |
Machine length | 6400mm |
Machine width | 3200mm |
Machine height | 2950mm |
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
