* The machine is suitable for processing large and thin and heavy irregular workpiece; No the workpiece roundness error due to inertia weight, ensure that the roundness precision of the workpiece. Due to the weight of workpiece, so workpiece and fixture can ensure that closed, short workpiece loading and unloading time and stability.
* The column,beam, and ram guideway adopt grinding after quenching, have super wear resistance and prolong the service life; Unique whole enclosed shield prevent scraps and coolant splash, achieve environmental protection purposes.
 |

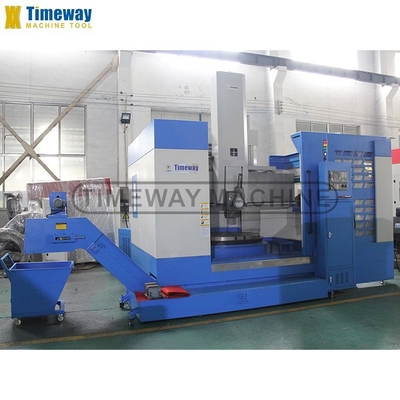

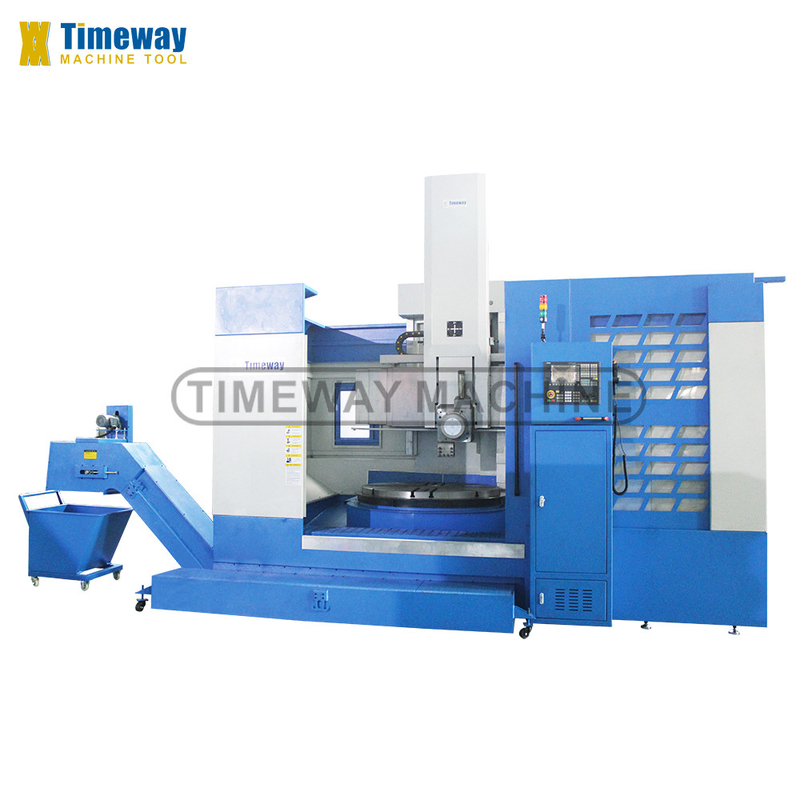

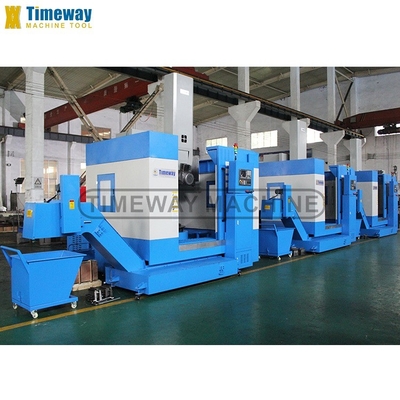

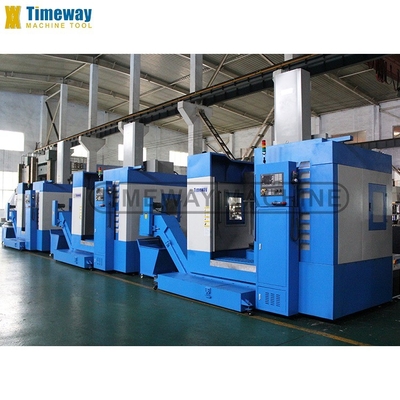

High Precision Single Column Vertical Lathe Machine with FANUC Siemens CNC Controller
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac/Timeway |
| Model Number: | VLK1600E |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/pieces 1-2 pieces |
|
Detail Information |
|||
| Type: | VERTICAL | Max. Length Of Workpiece (mm): | 1600 |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Max. Weight Of Workpiece(kg): | 8000 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 1030 Mm | Travel (Z Axis)(mm): | 1000 Mm |
| Positioning Accuracy (mm): | ±0.002 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 5510*3925*4600mm | Voltage: | 380V/420V/440V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 15000 | Warranty: | 1 Year, 1-year |
| Key Selling Points: | Automatic, Competitive Price, High Safety Level, High-accuracy, Energy Saving, Sustainable, Long Service Life, Easy To Operate, Flexible Manufacturing, Digital | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 2 - 200 R.p.m | Travel (Y Axis)(mm): | 1600 Mm |
| Spindle Taper: | ISO40, BT40, BT50 | Cutting Torque: | 17.5 N.m |
| Rapid Feed Speed(mm/min): | 0.1 - 2000 Mm/min | Feed Speed(mm/min): | 0.1 - 500 Mm/min |
| Min. Time Of Tool Change(s): | 0.7 | CNC Or Not: | CNC Lathe Machine |
| Product Name: | Single Column CNC Vertical Lathe Mechine | Product Type: | Vertical CNC Machine |
| Model: | VLK1600E | Max.swing Diameter: | 1600mm |
| Max. Turning Diameter: | 1600mm | Max. Height: | 1400mm |
| Loading Capacity: | 8000kg | Main Motor Power: | 37kw |
Product Description
Products Description

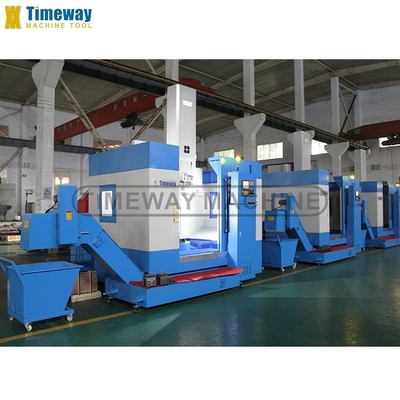

Single Column CNC Vertical Lathe
VLK800E VLK1250E VLK1600E VLK2000E
Machine Summary
Accessories
* Automatic lubrication system * Full eclosed shield * Electrical cabinet with air condition * Precise oil cooler * SIEMENS 808D * Automatic chip removal(side removal) | * SIEMENS 828D * FANUC 0i-TF * special fixture |
Specification
Specifications | Unit | VLK800E | VLK1250E | VLK1600E | VLK2000E | |||
Max. swing diameter | mm | 950 | 1250 | 1600 | 2000 | |||
Max. turning diameter | mm | 800 | 1250 | 1600 | 2000 | |||
Max. height of workpiece | mm | 800 | 1000 | 1000 | 1250 | |||
Max. weight of workpiece | kg | 2000 | 5000 | 8000 | 12000 | |||
Main motor power | kw | 22 | 22 | 30 | 37 | |||
Worktable diameter | mm | 800 | 1010 | 1400 | 1800 | |||
Max. torque of worktable | KN.m | 10 | 17.5 | 25 | 32 | |||
Worktable speed range | rpm | 2-320 | 1.25-200 | 1-160 | 4-125 | |||
Number of tool station | pcs | 4 | 4 | 4 | 4 | |||
Tool shank section of external turning tool | mm | 32x40 | 32x40 | 32x40 | 32x40 | |||
Drive type | - | Electric | Electric | Electric | Electric | |||
X-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 | |||
Z-axis ball screw size (dia. x screw pitch) | mm | 50x10 | 50x10 | 50x10 | 50x10 | |||
X-axis travel | mm | -20~550 | -20~800 | -20~1030 | -20~1150 | |||
Z-axis travel | mm | 650 | 650 | 800 | 800 | |||
Feed range(X/Z) | mm | 0.1-500 | 0.1-500 | 0.1-500 | 0.1-500 | |||
Rapid feed speed | mm/min | 2000 | 2000 | 2000 | 2000 | |||
CNC system | - | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | SIEMENS 808D | |||
Servo motor torque(X/Z) | N.m | 11/11 | 11/11 | 15/11 | 15/11 | |||
Power capacity | Kva | 30 | 37 | 45 | 52 | |||
Machine net weight | kg | 8500 | 11000 | 14500 | 18500 | |||
Machine dimension (LxWxH) | cm | 430x238x429 | 478x257x440 | 563x301x466 | 580x368x494 | |||
Chip conveyor | - | Chain type | Chain type | Chain type | Chain type | |||
Standard | - | Automatic lubrication system, Full closed guard, air conditioner, Oil cooler | ||||||
Optional | - | SIEMENS 828D, FANUC 0i-TF, special fixture | ||||||
Machine Details
1. The series CNC single column vertical lathe is designed by absorbing modern advanced design and manufacturing techniques and using CAD optimization design method, using the latest design concept and equipping with domestic and foreign advanced features. 2. Realize strong cutting on the structure performance, the worktable overweight load, machine high dynamic and static stiffness, all movement safety and stability, long service life and high processing efficiency. 3. The machine is suitable for high speed steel and carbide cutting tools, processing workpieces of all ferrous and non-ferrous metals and some nonmetal materials. 4. The machine can complete the process of rough and finish turning inside and outside cylinder, inside and outside cone surface, plane surface, the circular arc surface and grooving. 5. The machine is mainly composed of column, worktable, beam, vertical tool post, main drive gearbox, beam lifting mechanism, vertical tool post feeding mechanism, beam guide protection device, complete machine full enclosure, electrical system, hydraulic system, cooling system, etc.
Column
The column adopts the optimization design of
box-type structure and reasonable layout stiffener,
so as to realize the good thermal stability, high
strength and high rigidity. The column guideway
adopts grinding after quenching, to improve wear
resistance and prolong service life. The guideways
adopt stainless steel sealing cover for protection
and reduce the corrosion rate.
box-type structure and reasonable layout stiffener,
so as to realize the good thermal stability, high
strength and high rigidity. The column guideway
adopts grinding after quenching, to improve wear
resistance and prolong service life. The guideways
adopt stainless steel sealing cover for protection
and reduce the corrosion rate.
Worktable Base
The worktable base adopts high strength and high
rigid cast iron material, to improve stability and
absorb vibration. Unique thermal symmetric
structure, overcome the spindle temperature rise
effect on machining accuracy.
The spindle is equipped with spindle encoder, to
realize constant linear speed cutting.
rigid cast iron material, to improve stability and
absorb vibration. Unique thermal symmetric
structure, overcome the spindle temperature rise
effect on machining accuracy.
The spindle is equipped with spindle encoder, to
realize constant linear speed cutting.
Worktable
The worktable adopts high strength and high rigid cast iron material, to improve stability and absorb vibration.
Worktable and worktable base and motor separation,
relying on the V-type belt drive, max. limit reduces
the vibration of the motor heat directly affect the
machining accuracy.
relying on the V-type belt drive, max. limit reduces
the vibration of the motor heat directly affect the
machining accuracy.
Electrical Cabinet
Electrical cabinet placed directly within the column, so the structure is more compact, save space. Beautiful appearance, wire marking clear and complete, wiring and tidy; The connection of the electrical cabinet to bed adopt the special cable connection.
Electrical cabinet is equipped with air condition, safety and standard, to ensure controller constant temperature, the stability of the controller.
Electrical cabinet is equipped with air condition, safety and standard, to ensure controller constant temperature, the stability of the controller.
Beam
The beam guideway has very high wear resistance after
quenching and grinding, so as to guarantee long-term stability and high processing accuracy.
Horizontal guideway width large with wide guide structure, ball screw in the middle of the guide rail thoroughly solve the problem of drive torque, the guideway adopts the paster guide rail, good seismic performance, large loading capacity, decrease friction coefficient.
Beam lifting adopts two clamping points, to ensure the accuracy of the lifting beam.
quenching and grinding, so as to guarantee long-term stability and high processing accuracy.
Horizontal guideway width large with wide guide structure, ball screw in the middle of the guide rail thoroughly solve the problem of drive torque, the guideway adopts the paster guide rail, good seismic performance, large loading capacity, decrease friction coefficient.
Beam lifting adopts two clamping points, to ensure the accuracy of the lifting beam.
Spindle Unit
Worktable uses integrated, high rigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
Four station electrical tool-post
High positioning accuracy, large clamping force, large loading capacity, stable and reliable. The unique dovetail cutter holder,more accurate positioning, greater clamping force.
Feed Unit
Tool-post horizontal feed(X-axis) and ram vertical feed(Z-axis) are driven by AC servo motor through the gear reducer driving ball screw, the reducer and screw through the flexible coupling connection, high transmission efficiency, small transmission error, high transmission precision.
===================================
>> Worktable uses integrated, highrigidity, high precision and short fixed-type spindle structure, the spindle is equipped with a set high precision thrust ball bearing and a set double row short cylindrical roller bearing. Compact structure, at the same time bear radial load, the axial load and tilting moment, and under the overloading elastic deformation is small, improved the precision of the rotation of the worktable and carrying capacity.
===================================
>> Customers can choose FANUC, SIEMENS, or KND, other CNC systems.
===================================
>> According to special requirements, the whole machine cover, chip conveyor.
