6mm Max. Cutting Thickness Metal Power Shearing Machine PS-6x2500 with 1
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $9,900.00/sets >=1 sets |
| Packaging Details: | Iron pallet |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Max. Cutting Width (mm): | 2500 | Max. Cutting Thickness (mm): | 6 Mm |
|---|---|---|---|
| Automatic Level: | Fully Automatic | Shearing Angle: | 2 |
| Blade Length (mm): | 2500 Mm | Backgauge Travel (mm): | 0 - 550 Mm |
| Throat Depth (mm): | 6 Mm | Condition: | New |
| Power (kW): | 7.5 KW | Weight (KG): | 5000 KG |
| Voltage: | 220/380V | Dimension(L*W*H): | 4450x2165x1520 |
| Year: | 2022 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Peru, Russia, Romania, South Africa | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Motor, Gear |
| Power Shearing Machine: | Power Shearing Machine | Shearing Thickness: | 3-8mm |
| Shearing Width: | 1200-4000mm | Back Gauge Range: | 350-700mm |
| Motor Power: | 2.2-11kw | Warranty Period: | 1 Year |
| Name: | Metal Table Shear Cutting Machine | Product Name: | Metal Shearing Machine |
| Color: | Customer Requirement | Key Selling Point: | Competitive Price |
| Port: | China Port | ||
Product Description
Product Description

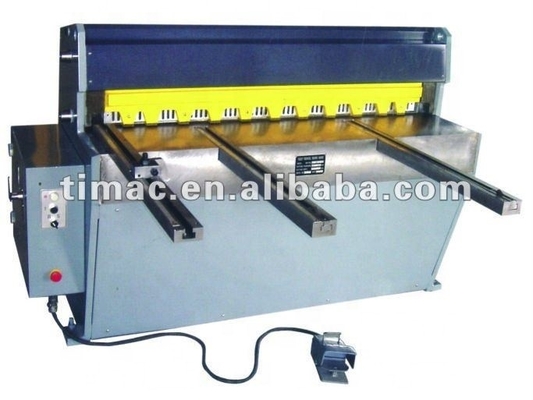

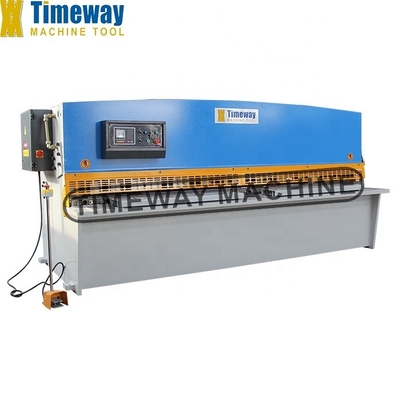

Metal Power Shearing Machine
Feature：
* A brakemotor driving through a shaft mounted speed reduction unit and controlled by as delector swith for single or continuous strokes provide quiet instantamum. * Blade clearance is easily set device, is an ideal true cut machining equipment of sheet metal and mon-ferrous sheet metal.
Specification
Model | Shearing thickness (mm) | Shearing width (mm) | Shearing angle (°) | Number of stroke (time/min) | Motor power (kw) | Overall dimensions (LxWxH) (mm) |
PS-3x1200 | 3 | 1200 | 2°25′ | 54 | 2.2 | 1980x1550x1245 |
PS-3x1300 | 3 | 1300 | 2°14′ | 54 | 2.2 | 2080x1505x1245 |
PS-3x1500 | 3 | 1500 | 2°25′ | 54 | 2.2 | 2280x1505x1245 |
PS-3.5x1300 | 3.5 | 1300 | 2°14′ | 65 | 3 | 2000x1600x1300 |
PS-4x2000 | 4 | 2000 | 1°30′ | 55 | 4 | 3000x1970x1250 |
PS-4x2500 | 4 | 2500 | 1°30′ | 55 | 5.5 | 3500x1970x1250 |
PS-4x3200 | 4 | 3200 | 1°14′ | 50 | 7.5 | 4200x1970x1250 |
PS-4x4000 | 4 | 4000 | 1°14′ | 50 | 11 | 5000x1970x1350 |
PS-6.3x2000 | 6.3 | 2000 | 2° | 40 | 7.5 | 3175x1765x1530 |
PS-6x2500 | 6 | 2500 | 1°45′ | 40 | 7.5 | 3675x1765x1530 |
PS-6x3200 | 6 | 3200 | 1°30′ | 40 | 7.5 | 4450x2165x1520 |
PS-8x2500 | 8 | 2500 | 1°57′ | 45 | 11 | 3690x2165x1520 |
PSD-2.5x2500 | 2.5 | 2500 | 1° | 47 | 5.5 | 3214x2210x1180 |
PSD-3.2x2000 | 3.2 | 2000 | 1°45′ | 47 | 7.5 | 2624x2210x1180 |
PSD-3.2x2500 | 3.2 | 2500 | 1°18′ | 47 | 7.5 | 3214x2210x1180 |
PSD-3.5x1250 | 3.5 | 1250 | 1°30′ | 47 | 5.5 | 1860x2210x1180 |
PSD-3.5x3050 | 3.5 | 3050 | 1°30′ | 47 | 9 | 3599x2448x1290 |
PSD-2x3660 | 2 | 3660 | 1°30′ | 47 | 9 | 4200x2448x1240 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
