Product Details:

Place of Origin: China
Brand Name: TIMEWAY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $16,980.00/sets 1-2 sets
Packaging Details: Wooden cases(can be fumigated)
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information
Condition: New Machine Type: Universal Bender
Video Outgoing-inspection: Provided Machinery Test Report: Provided
Marketing Type: Hot Product 2021 Warranty Of Core Components: 1 Year
Core Components: Motor Raw Material: PIPE
Material / Metal Processed: Stainless Steel Power: Hydraulic, 5.5kw
Automation: Manual Extra Services: Machining
Year: 2023 Weight (KG): 1500
Key Selling Points: High-accuracy Warranty: 1 Year, 1-year
Applicable Industries: Building Material Shops, Manufacturing Plant, Construction Works  Showroom Location: Canada, Turkey, United Kingdom, United States, Italy, France, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Russia, Thailand, Morocco, Kenya, South Korea, Chile, UAE, South Africa, Ukraine, Nigeria, Uzbekistan, Australia
After-sales Service Provided: One Year Color: Customer Requirements
Shearing Width: 2500mm Shearing Thickness: 4mm
Shearing Angle: 1°30' Name: Shearing Machine
Processing Material: Alu-alloy Quality: Excellent
Port: China Port

Product Description

Products Description

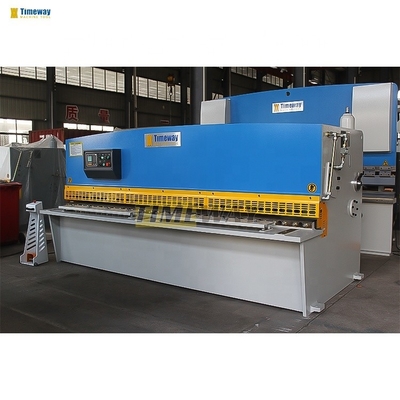

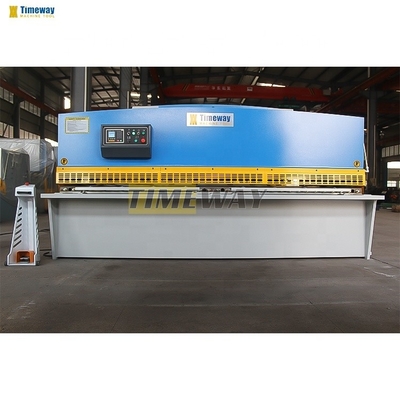

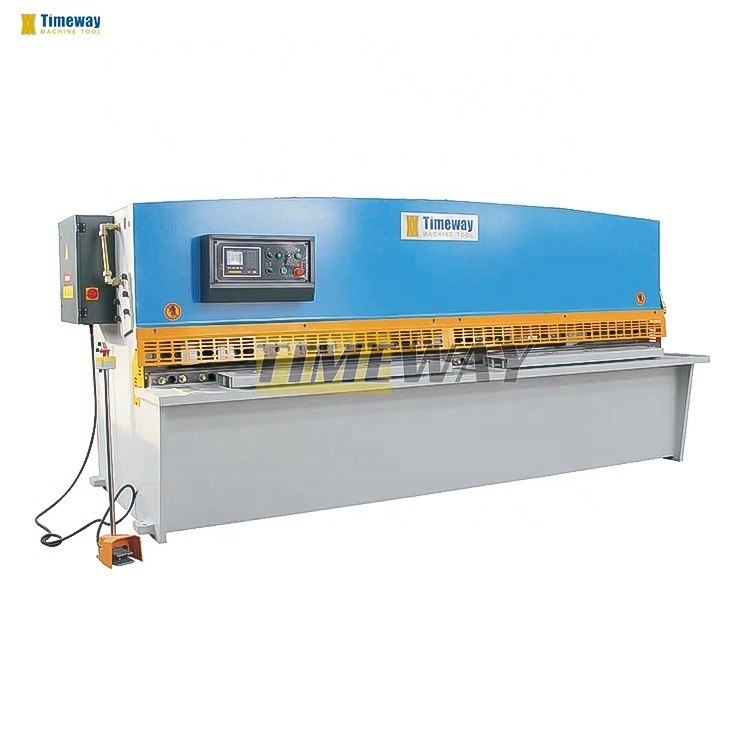

Hydraulic Shearing Machine
Features:

- Steel plate welded structure, hydraulic drive, nitrogen cylinder return.

- Easy to operate, reliable performance, beautiful appearance.

- Indicating signs are available for blade clearance adjustment, convenient and fast.

- Light alignment illumination device, and can adjust the amount of travel of the upper tool rest in a stepless way.

- Fence personal safety protection device adopted at the workspace.

- The sizes of rear stoppers are controlled by a micro gear motor, with low noise and accurate positioning, to achieve the best satisfactory results.
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 0
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 1

Model
Shearing thickness
(mm)
Shearing width
(mm)
Shearing angle
(°)
Number of stroke
(/mm)
Backgauge range
(mm)
Motor power
(kw)
QC12Y/K-4x2500
4
2500
1°30'
18
20-600
4
QC12Y/K-4x6000
4
4000
1°30'
12
20-600
5.5
QC12Y/K-6x2500
6
2500
1°30'
18
20-600
7.5
QC12Y/K-6x6000
6
4000
1°30'
12
20-600
7.5
QC12Y/K-8x2500
8
2500
1°30'
14
20-600
7.5
QC12Y/K-8x6000
8
4000
1°30'
8
20-600
11
Machine Details
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 2

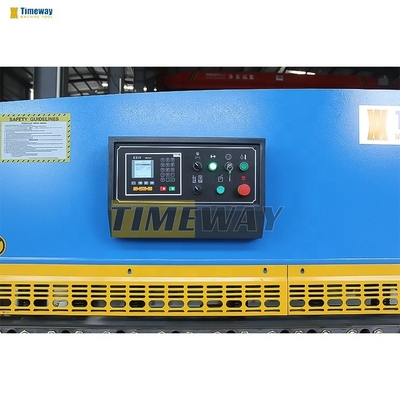

ESTUN E21S
- Back gauge can be controlled.
- Cut-angle can be controlled.
- Cut-gap can be controlled.
- Stroke time can be controlled.
- Intelligent positioning control.
- Unilateral and bidirectional positioning which eliminates spindle clearance effectively.
- Retract functions.
- Automatic reference searching.
- One-key parameter backup and restore.
- Fast position indexing.
- 40 programs storage space, each program has 25 steps.
- Power-off protection.

ESTUN E200PS
- Servo control, can realize the backgauge and high accuracy of control block.
- The gap (G-axis) is controllable.
- Unilateral and bilateral location, to improve the positioning precision and reduce screw clearance.
- The action CUT and EOS is controllable.
- Pneumatic feeding causes to convey the material to be nimble.
- Backgauge can automatic homing.
- Backgauge can be adjusted through the manual keys.
- The pages of SYSTEM PARAMETER and DIAGNOSIS are hidden, requires a specific password can enter into. esolution: 01 mm or 0.001 inch.
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 3
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 4

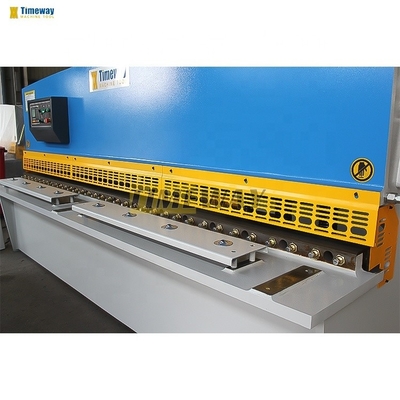

Front safety cover

2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 5

Ball transfer table

2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 6

Backgauge motor

Positive Comments From Customers
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 7
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 8
Text Introduction：
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 9
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Factory Display：
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 10
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Export Case：
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 11
Exporting Country：
At present, it has been exported to more than 60 countries such as the United States, Russia, the Philippines, and India, Peru, and Pakistan.
Customer Visiting：
2022 QC12Y Series Swing Beam Hydraulic Shearing Machine with Extra Machining Services 12
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
