GHM500 Automatic Shaping Hobbing Machine for 160mm Worktable Diameter Processing Needs
Product Details:
| Place of Origin: | Shanghai, China |
| Brand Name: | Timac, Timeway |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $14,900.00/sets 1-2 sets |
| Packaging Details: | Wooden case(fumigated) |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Type: | Gear Hobbing Machine | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Ordinary Product |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Gear |
| Voltage: | As Require | Dimension(L*W*H): | 2450x1272x1790 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Weight (KG): | 4500 | Power (kW): | 5.5 |
| Applicable Industries: | Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Construction Works , Energy & Mining, Advertising Company | Showroom Location: | United States, France, Brazil, Indonesia, UAE, Colombia, Uzbekistan |
| After-sales Service Provided: | Online Support | Max. Workpiece Modulus: | 500 |
| Max. Processing Width: | 8 | Hob Diameter/length: | 250 |
| Worktable Diameter: | 160 | Hobbing Spindle Speed Range: | Hobbing Spindle Speed Range |
| Gross Weight/Net Weight: | 5300/4500 | Port: | China Port |
Product Description
Products Description

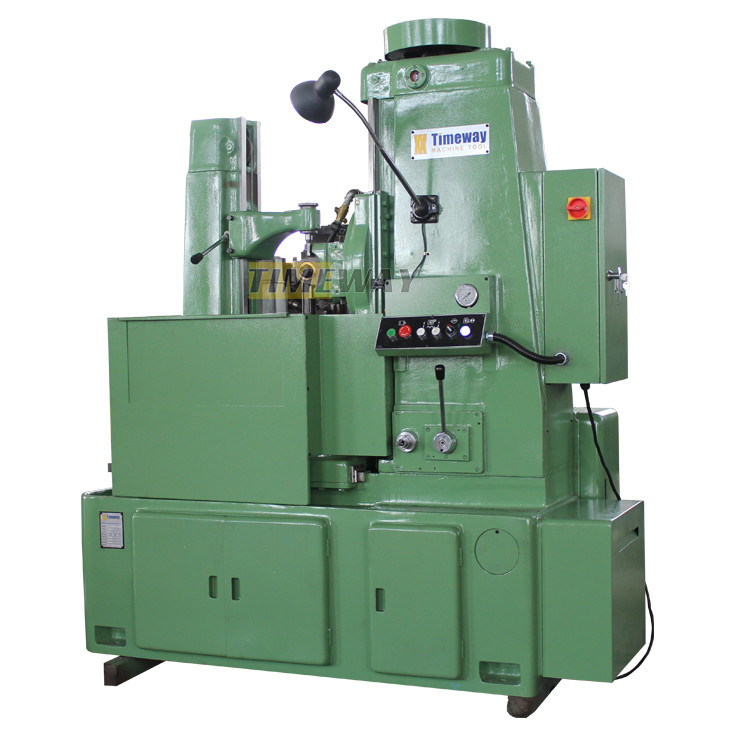

Hobbing Machine GHM-500
Specification | Unit | GHM500 | GHM800 | GHM1000 |
Max. cutting modulus (steel) | mm | 5 | 6 | 8 |
Max. cutting modulus (cast iron) | mm | 6 | 8 | 10 |
Max. diameter of spur gear (with rear column) | mm | 350 | 450 | 450 |
Max. diameter of spur gear (without rear column) | mm | 500 | 800 | 1000 |
Max. diameter of cylindrical helical gear (30°) | mm | 370 | 500 | 500 |
Max. diameter of cylindrical helical gear (45°) | mm | 250 | - | - |
Max.diameter of cylindrical helical gear (60°) | mm | - | 190 | 190 |
Max. vertical stroke length of hob | mm | 260 | 275 (375) | 275 |
Max. hobbing length | mm | 240 | 255 (355) | 255 |
Distance from hobbing spindle to worktable Max. | mm | 320 | 500 | 500 |
Distance between center lines Min. | mm | 25 | 30 | 30 |
Distance from worktable to hobbing spindle Min. | mm | 170 | 195 | 195 |
Diameter of interchangeable hob spindle | mm | 22, 27, 32 | 22, 27, 32 | 22, 27, 32 |
Max. diameter of hob | mm | 120 | 120 (220) | 120 |
Table hole diameter | mm | 60 | 80 | 80 |
Diameter of worktable spindle | mm | 30 | 35 | 35 |
Hobbing spindle speed steps | steps | 8 | - | - |
Hobbing spindle speed range | rpm | 50-275 | 48-192 | 48-192 |
Vertical hobbing feed per revolution | mm/r | 0.24-4.25 | 0.25-3 | 0.25-3 |
Main motor power | kw | 3 | 3 | 5.5 |
Main motor rotation speed | rpm | 1430 | 1430 | 1430 |
Pump motor power | kw | 0.125 | 0.04 | 0.04 |
Pump motor rotation speed | rpm | 2790 | - | - |
Machine weight | kg | 2400 | 3300 | 4300 |
Machine size (LxWxH) | mm | 1825×935×1730 | 2290x1100x1910 | 2290x1100x1910 |
Standard accessories
Φ22 Hob spindle
Φ27 Hob spindle
Φ32 Hob spindle
Φ35 Workpiece spindle
Work lamp
Coolant system
small claw clutch
Big claw clutch
Protection guard
General tools
Foundation bolts
Operation manual
Φ27 Hob spindle
Φ32 Hob spindle
Φ35 Workpiece spindle
Work lamp
Coolant system
small claw clutch
Big claw clutch
Protection guard
General tools
Foundation bolts
Operation manual

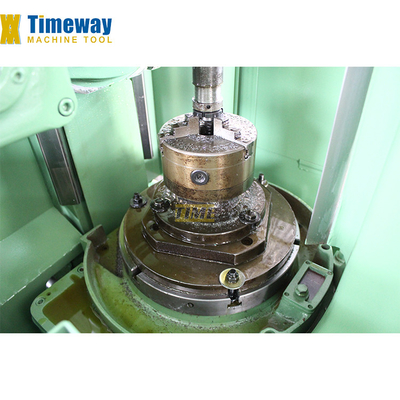

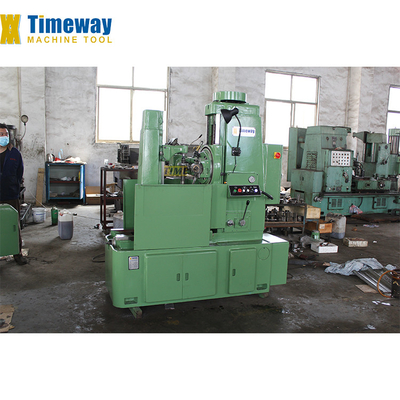

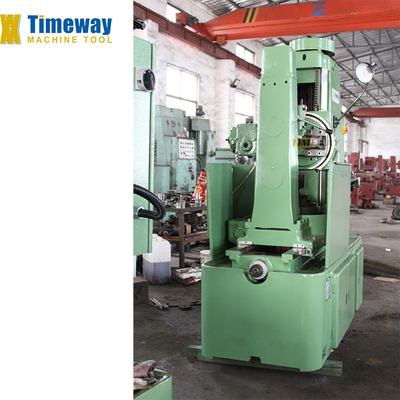

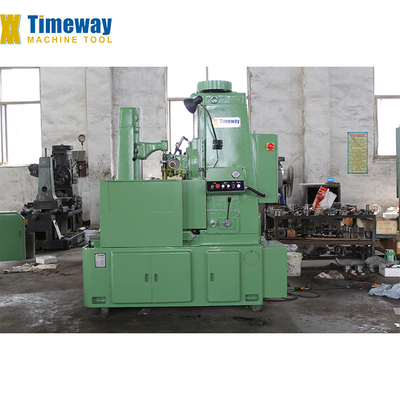

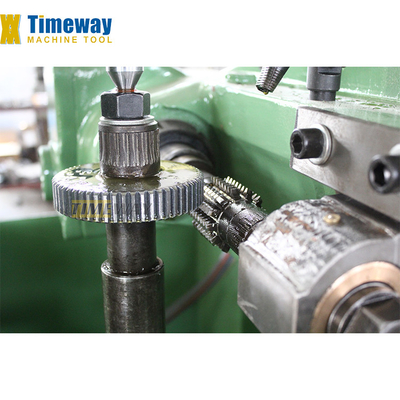

Machine Details
Positive Comments From Customers
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
