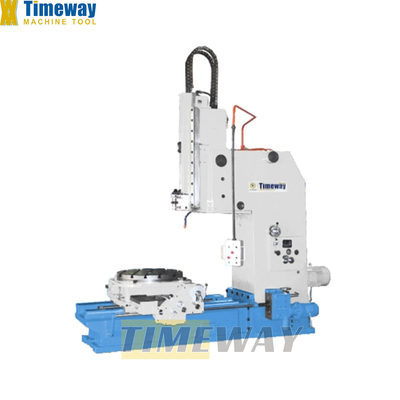

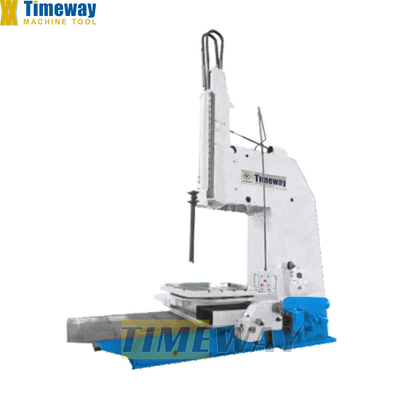

Customizable BH-1600 Hydraulic Slotting Machine for Metal Manufacturing Line
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | Hot Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Motor |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Power (kW): | 11 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, United States, Italy, Germany, Indonesia, India, Spain, Thailand, South Korea, Colombia, Bangladesh, Kyrgyzstan, Nigeria | Weight (KG): | 28000 KG |
| Product Name: | Mechanical Slotting Machine | Model: | BH-1600 |
| After-sales Service Provided: | Provide | Material: | Metal |
| COLOR: | Support Customized | Key Word: | Slotting Machine |
| Max. Slotting Length: | 1600mm | Table Longitudinal Travel: | 1645mm |
| Table Cross Travel: | 1340mm | Table Diameter: | 1400mm |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Specification
SPECIFICATION | UNIT | BH-1600 |
Max. stroke length of ram | mm | 1680 |
Min. stroke length of ram | mm | 350 |
Max. slotting length | mm | 1600 |
Ram vertical adjustable stroke | mm | 1200 |
Ram slotting speed | m/min | 5-17 |
Ratio of slotting speed and return speed | - | 1:1.3 |
Ram slotting speed steps | steps | stepless |
Max. slotting force | KN | 27 |
Distance from tool holder to column | mm | 1600 |
Distance from ram nose to table | mm | 1800 |
Table longitudinal travel | mm | 1645 |
Table cross travel | mm | 1340 |
Table diameter | mm | Φ1400 |
Inclination of ram | ° | 0-11° |
Vertical feed rate (stepless) | mm | 0-0.6 |
Range of horizontal feed(stepless) | mm | 0-1.36 |
Range of rotary feed(stepless) | ° | 0-1.25° |
Loading capacity | kg | 6000 |
T-slots width | mm | 28H8 |
Main motor power | kw | 11 |
Main motor rotation speed | rpm | 960 |
Rapid feed motor power | kw | 2.2 |
Rapid feed motor rotation speed | rpm | 940 |
Cooling pump motor power | kw | 0.04 |
Machine weight | kg | 28000 |
Machine dimensions (LxWxH) | mm | 5090x2970x7500 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

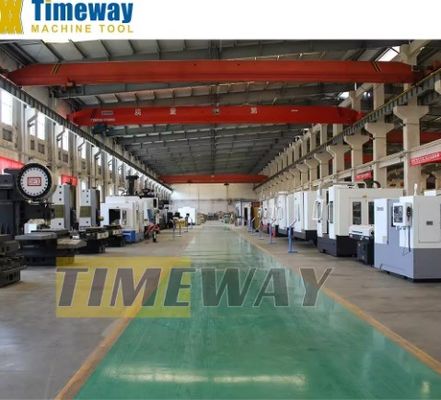

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
