Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine

Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine

Product Details:

Place of Origin: Henan, China
Brand Name: TIMAC

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $980.00/sets >=1 sets
Packaging Details: WOODEN CASE/PLYWOOD CASE
Supply Ability: 500 Set/Sets per Month
Get Best Price Contact Now

Detail Information

Warranty: 12 Months Product Name: QY-6 Model Auto Brake Shoe Plate Hydraulic Riveter
Brand: Timac Type: New
Adaptive Model: Fiat Year: 1984-1995
Car Fitment: Fiat Model: 100-90
Port: CHINA PORT

Product Description

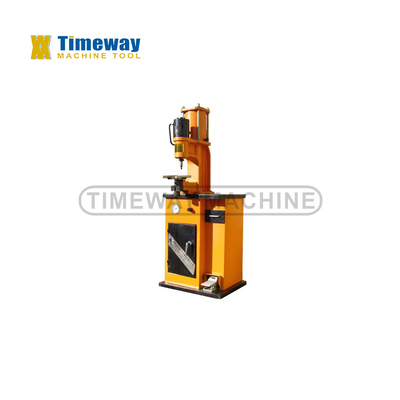

QY-6 Model pneumatic Hydraulic Brake Shoe  Rivet Machine

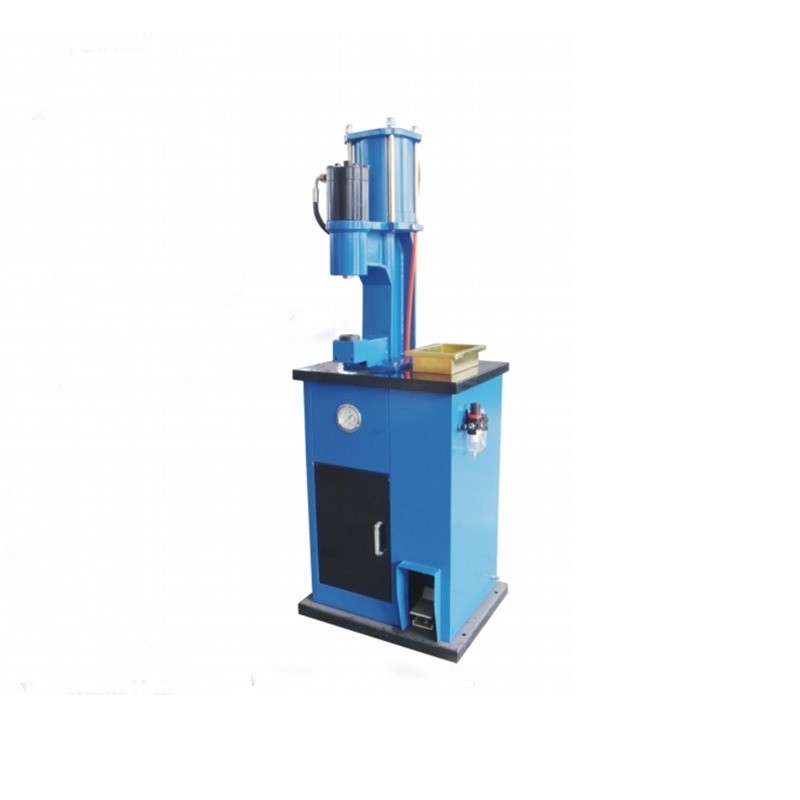

 Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine 0



Function Introduction:

QY-6 Model Auto Brake Shoe Plate Hydraulic Riveteris the latest special maintenance equipment developed by our company. It uses compressed air as its power source and makes the riveting by hydraulic pressure. It features novel structure, easy operation, stable center alignment and adjustable riveting force etc. Therefore it is suitable for riveting and punching of all kinds of truck braking shoe plate rivet, being copper or aluminum and also can used for riveting of other auto parts like clutch friction plate.





Technical Parameter:

Max riveting force: 60KN

Rated working pressure: 0.5—0.9MPA

Diameter of allowable rivet: 10mm

Effective travel distance of the traveler: 40mm

Height adjusting distance of the shoe iron bracket: 20mm.

Overall dimension (LXWXH): 580×540×1440mm




Conversion between pressure gauge value and riveting force

Value of the pressure gauge (MPa) Punch riveting force (KN)
0.5 30.1
0.6 37
0.7 43.1
0.8 49.3
0.9 55.4
1 61.6

Note:1000kg.f=9.8KN



Packaging & Shipping

 Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine 1

Company Introduction

 Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine 2

Export Cases

 Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine 3

Exhibitions

 Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine 4

Customers Visited

 Upgrade Your Fiat 100-90 with QY-6 Model Pneumatic Hydraulic Brake Shoe Rivet Machine 5

FAQ



Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;

Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.

Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )

Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.

Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
