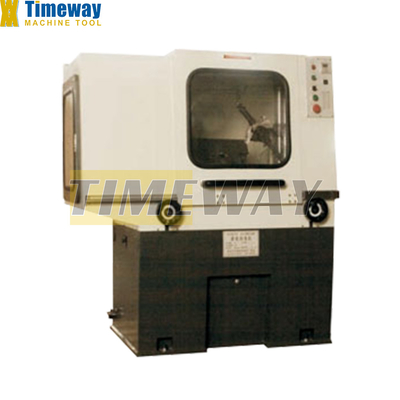

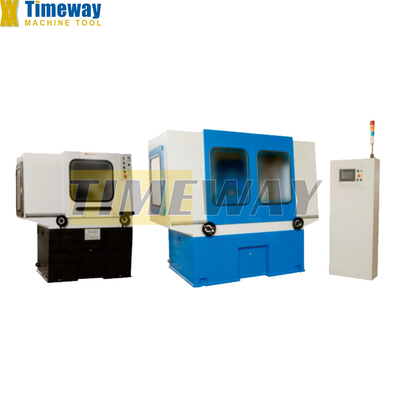

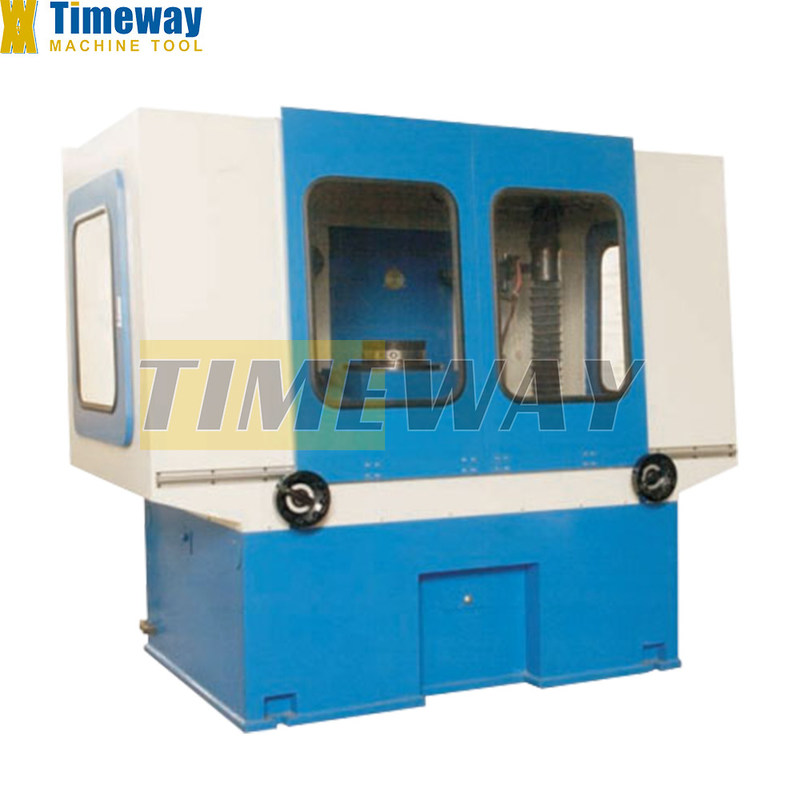

Double Grinding Head Semi-Automatic Control Chamfering Machine for Heavy Workpieces
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $31,886.00/sets 1-2 sets |
|
Detail Information |
|||
| Condition: | New | Video Outgoing-inspection: | Provided |
|---|---|---|---|
| Machinery Test Report: | Provided | Marketing Type: | New Product 2024 |
| Warranty Of Core Components: | 1 Year | Core Components: | Engine, Bearing, Gearbox, Gear |
| Application: | Metal Workpiece, Metal | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Weight (KG): | 12000 KG |
| Applicable Industries: | Energy & Mining, Hotels, Farms, Construction Works , Building Material Shops, Machinery Repair Shops, Other | Showroom Location: | Egypt, Turkey, United States, Philippines, Saudi Arabia, Indonesia, Pakistan, India, Thailand, Argentina, South Korea, Colombia, Bangladesh, Ukraine, Kyrgyzstan, Nigeria, Tajikistan |
| Product Name: | CNC Chamfering Machine | After-sales Service Provided: | Online Support |
| Workpiece Diameter: | ≤25-800mm | Color: | Customer Requirement |
| Machine Type: | Auotomatic | Suitable Material: | Metal |
| Workpiece Module: | Cylindrical Gear 1.25-10mm | Chamfer Angle: | 15°-55° |
| Whamfer Width: | 0.3-1.5mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Features:
1. Adopt fully enclosed cover, safe and reliable.

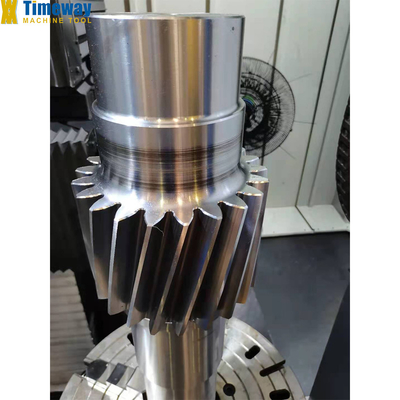

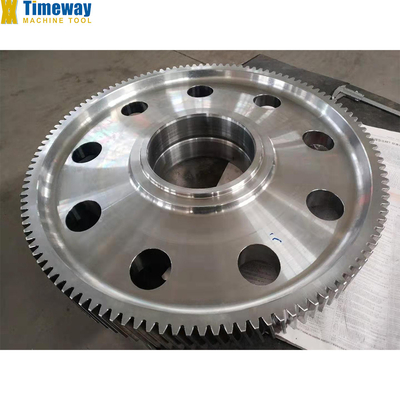

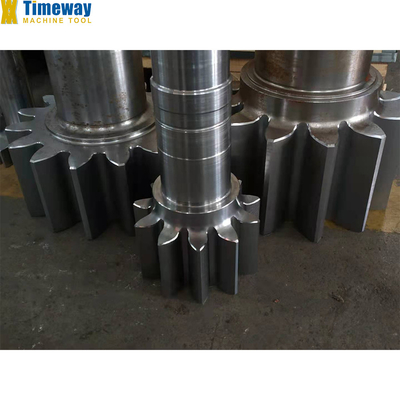

2. Grinding method is used to chamfer the full tooth profile of both sections of the gear.
3. Double grinding head semi-automatic control.
4. No need for gear separation mechanism, tooth-shaped back plate and tool setting device, wide application range.
5. Simple operation and adjustment, convenient product replacement, high production efficiency and low production cost.
6. Available in both mechanical transmission and variable frequency transmission models.
Specification
SPECIFICATION | UNIT | TYM50/80 |
Workpiece diameter | mm | ≤25-800 |
Workpiece module | mm | Cylindrical gear 1.25-10 |
Workpiece module | mm | Spiral bevel gear 3-14 |
Max helix angle of workpiece | - | ≤55° |
Chamfer angle | - | 15°-55° |
Chamfer width | mm | 0.3-1.5 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
