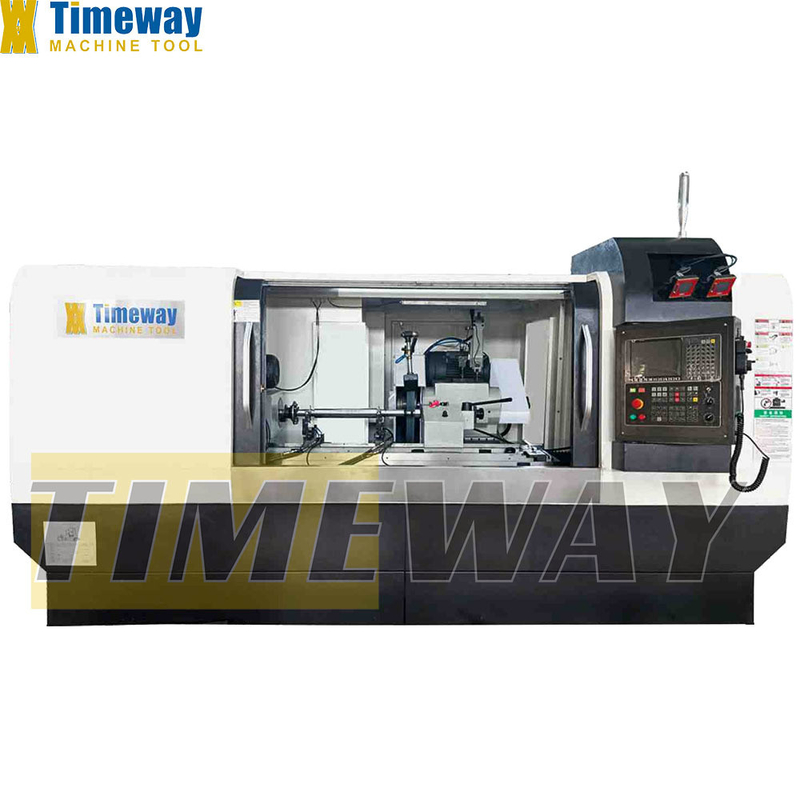

GK-320 CNC Cylindrical Grinder Machine Straight Plunge Grinding Type Customized Options
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $31,880.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Other, Cylindrical Grinding Machine | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Dimension(L*W*H): | 4250/5450x2250x2200mm | Weight (KG): | 4600 |
| Power (kW): | 11 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Spain, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, Brazil, United Kingdom, Indonesia |
| Applicable Industries: | Farms, Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops, Hotels | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Product Name: | CNC Cylindrical Grinder | Function: | Grinding Material |
| Machine Type: | Cnc Control | Precision: | High Precision Machine |
| Application: | Metal Processing | Advantage: | High Efficiency Easy Operate |
| Color: | Customized Optional | Distance Between Centers: | 1000/1500mm |
| Center Height: | 180mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
GK Series Grinding Application GK-320
1. This series of machine tool is a two-axis linkage CNC numerical control cylindrical grinder.

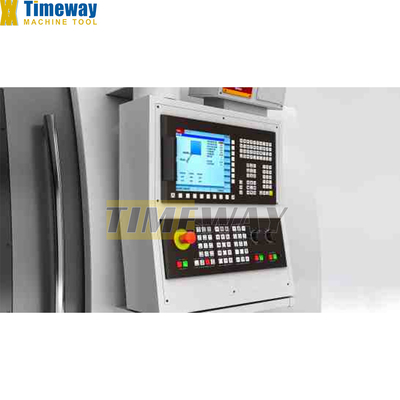

2. SIEMENS, FANUC or other numerical control systems are selected.
2. SIEMENS, FANUC or other numerical control systems are selected.
3. The movement of the worktable and the wheel carrier is completed by the AC servo motors on the Z-axis and X-axis to drive the ball screw. X, Z axis linkage realizes linear and circular interpolation, and completes the grinding of inclined surface and circular arc.
4. Through reasonable programming, the machine can complete the grinding of single or combined surfaces such as cylindrical, conical, and shoulders of various small and medium-sized parts.

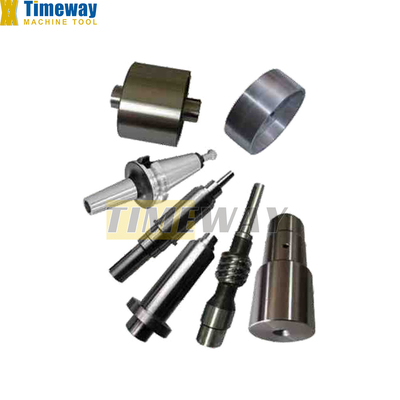

5. The grinding wheel can be shaped and trimmed to achieve the shape grinding. In addition to satisfying the external cylindrical surface grinding of traditional industries such as automobiles, motorcycles, compressors, automotive gearboxes, oil pump nozzles, and valve stems, it is also suitable for rollers, ceramics, and semiconductors such as stereo printing Grinding of outer cylindrical surfaces in emerging industries.
Specification
SPECIFICATION | UNIT | GK-320 |
Distance between centers | mm | 1000/1500 |
Center height | mm | 180 |
Dia. ground (O.D) | mm | 8-320 |
Max. weight of workpiece | kg | 150 |
Workhead spindle taper | - | MT5 |
Workhead spindle speed (stepless) | r/min | 26-190 |
Max. dimension of wheel (O.DxWxI.D) | mm | 600x75x305 |
Wheel peripheral velocity | m/s | 35 |
Min. set unit | mm | 0.0001 |
Max. swiveling angle of table (Clockwise) | ° | 3° |
Max. swiveling angle of table (Anticlockwise) | ° | 7° (1000), 6° (1500) |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 30 |
CNC system | - | HNC-808DG, SIMENS 828D, FANUC 0i-TF |
Wheelhead motor power | kw | 11 |
Workhead motor power | kw | 1.5 |
Roundness | um | 3 |
Cylindricity | um | 8 |
Roughness | um | Ra0.2 |
Gross weight | tons | 4.6/5.1 |
Packing size (LxWxH) | cm | 425/545x225x220 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
