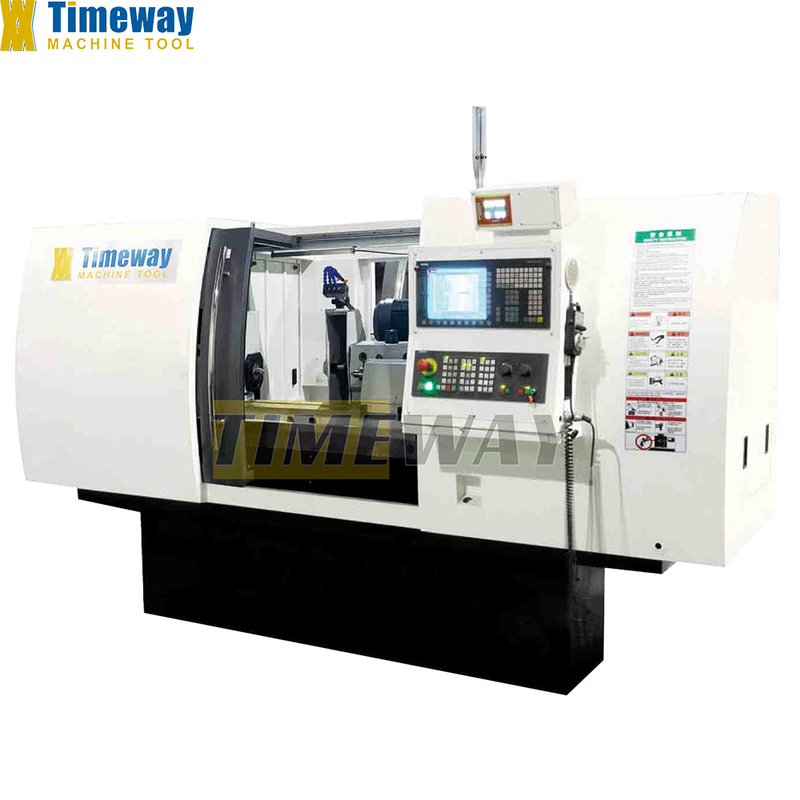

CNC Cylindrical Grinder Machine Angular Grinding Type GDK-200 Timeway High Precision
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,980.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Other, Cylindrical Grinding Machine | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Year: | 2024 |
| Dimension(L*W*H): | 3400/3900x2250x2200mm | Weight (KG): | 4300 |
| Power (kW): | 7.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | India, Romania, Viet Nam, Kenya, Australia, Japan, South Africa, Malaysia, Canada, Kyrgyzstan, Italy, Thailand, Philippines, Ukraine, United Kingdom, Indonesia |
| Applicable Industries: | Farms, Construction Works , Energy & Mining, Machinery Repair Shops, Building Material Shops | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Engine |
| Product Name: | CNC Cylindrical Grinder | Function: | Grinding Material |
| Machine Type: | Cnc Control | Precision: | High Precision Machine |
| Application: | Metal Processing | Advantage: | High Efficiency Easy Operate |
| Color: | Customized Optional | Distance Between Centers: | 500/750mm |
| Dia. Ground (O.D): | 8-200mm | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
GK Series Grinding Application GDK-200
1. This series of machine tool is a two-axis linkage CNC numerical control cylindrical grinder.

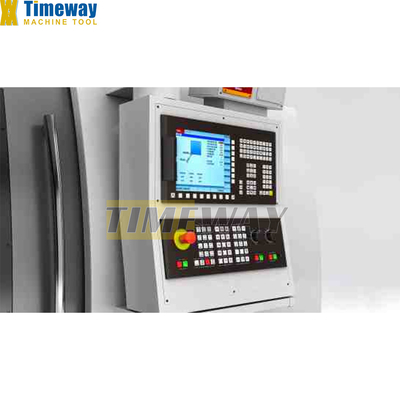

2. SIEMENS, FANUC or other numerical control systems are selected.
2. SIEMENS, FANUC or other numerical control systems are selected.

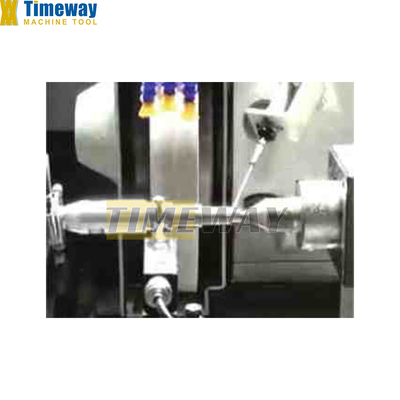

3. The movement of the worktable and the wheel carrier is completed by the AC servo motors on the Z-axis and X-axis to drive the ball screw. X, Z axis linkage realizes linear and circular interpolation, and completes the grinding of inclined surface and circular arc.

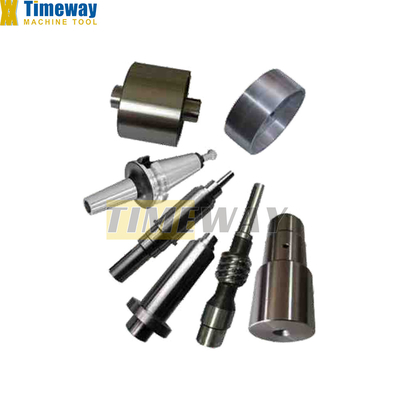

4. Through reasonable programming, the machine can complete the grinding of single or combined surfaces such as cylindrical, conical, and shoulders of various small and medium-sized parts.
5. The grinding wheel can be shaped and trimmed to achieve the shape grinding. In addition to satisfying the external cylindrical surface grinding of traditional industries such as automobiles, motorcycles, compressors, automotive gearboxes, oil pump nozzles, and valve stems, it is also suitable for rollers, ceramics, and semiconductors such as stereo printing Grinding of outer cylindrical surfaces in emerging industries.
Specification
SPECIFICATION | UNIT | GDK-200 |
Distance between centers | mm | 500/750 |
Center height | mm | 135 |
Dia. ground (O.D) | mm | 8-200 |
Max. weight of workpiece | kg | 50 |
Workhead spindle taper | - | MT4 |
Workhead spindle speed (stepless) | r/min | 25-260 |
Max. dimension of wheel (O.DxWxI.D) | mm | 500x75x203 |
Wheel peripheral velocity | m/s | 35 |
Min. set unit | mm | 0.0001 |
Max. swiveling angle of table (Clockwise) | ° | 5° (500), 3° (750) |
Max. swiveling angle of table (Anticlockwise) | ° | 9° |
Tailstock quill taper | - | MT4 |
Tailstock quill travel | mm | 30 |
CNC system | - | HNC-808DG, SIMENS 828D, FANUC 0i-TF |
Wheelhead motor power | kw | 7.5 |
Workhead motor power | kw | 1.1 |
Roundness | um | 2 |
Cylindricity | um | 5 |
Roughness | um | Ra0.2 |
Gross weight | tons | 4.3/4.6 |
Packing size (LxWxH) | cm | 340/390x225x220 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
