High Precision G-200H UG-200H Cylindrical Grinding Machine for Workpieces up to 50kg
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $21,900.00/acres >=1 acres |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 800 | Max. Length Of Workpiece (mm): | 800 |
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 135 |
| Wheel Size(mm): | 400*50*203mm | Wheel Speed (rpm): | 380 |
| Surface Roughness(μm): | 0.32 | Year: | 2023 |
| Voltage: | 380V/220V | Dimension(L*W*H): | 2500 (3000) X1600x1500mm |
| Weight (KG): | 2500 | Power (kW): | 5.625 |
| Key Selling Points: | High Productivity | Warranty: | 1 Year |
| Showroom Location: | Germany, Mexico, Russia | Applicable Industries: | Manufacturing Plant, Energy & Mining, Construction Works , Machinery Repair Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gear, Pump | Condition: | New |
| CNC Or Not: | Normal | Dia. Ground (O.D): | 8~200mm |
| Center Height: | 13-100mm | Dia. Ground (I.D): | 13-100mm |
| Workhead Spindle Speed: | 25~380rpm | Internal Grinding Spindle Speed: | 16000rpm |
| Machine Dimemsions (LxWxH): | 2500 (3000) X1600x1500mm | Machine Weight: | 2500 (3000)kg |
| Machine Motor Power: | 5.625kw | ||
Product Description
Product Description

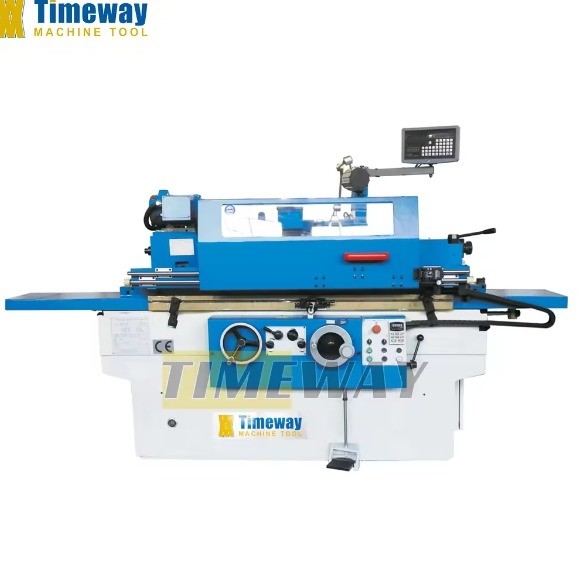

Cylindrical Grinder G-200H, UG-200H
G-200H and UG-200H cylindrical grinding machine is suitable for outside grinding operations up to 200 mm in diameter. UG-200H comes complete with an inside grinding device to increase the application range significantly. Most commonly this model is used in machine construction, tool and mould shaping and in the production of small series.
Specification
SPECIFICATION | UNIT | G-200H | UG-200H |
Dia. ground (O.D) | mm | 8-200 | 8-200 |
Dia. ground (I.D) | mm | - | 13-100 |
Center height | mm | 135 | 135 |
Workhead spindle speed | rpm | 25-380 | 25-380 |
Max. table travel | mm | 650（950） | 650（950） |
Table hydraulic feed speed | m/min | 0.1-4 | 0.1-4 |
Loading capacity | kg | 50 | 50 |
Grinding length (O.D/I.D) | mm | 500/-(800/-) | 500/125-(800/-) |
Table swivel angle | ° | -5~+9° (-3~+7°) | -5~+9° (-3~+7°) |
Max. peripheral speed of grinding wheel | m/s | 38 | 38 |
External wheel size | mm | Max: Ф400x50xФ203 | Min: Ф280x50xФ203 |
Internal grinding spindle speed | rpm | - | 16000 |

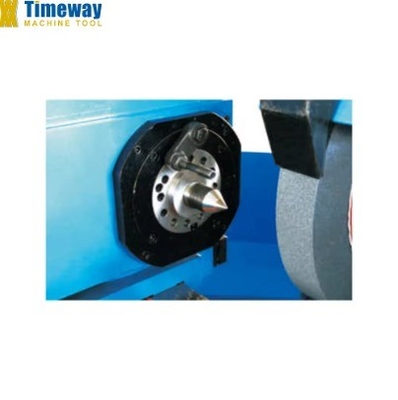

Workhead and tailstock center | - | MT4 | MT4 |
Machine motor power | kw | 5.625 | 5.625 |
Machine dimemsions (LxWxH) | mm | 2500 (3000) x1600x1500 | 2500 (3000) x1600x1500 |
Machine weight | kg | 2500 (3000) | 2500 (3000) |
STANDARD ACCESSORIES:
Grinding wheel, Grinding wheel flange,
Three jaw chuck (UG),
Driving dog,

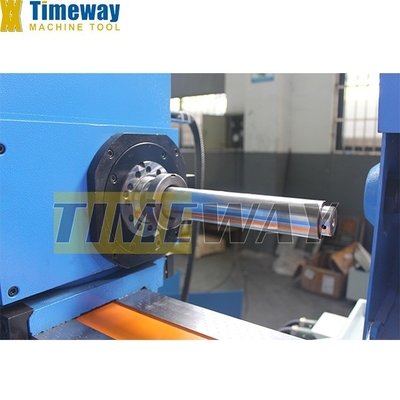

Arbor for internal grinding (UG),
Grinding wheel dresser,
Wheel balancing arbor,
Open type steady rest,
Dead centers,
Frequency inverter,
Coolant system,
Work lamp,
Leveling wedge,
Operation manual (English edition).
Three jaw chuck (UG),
Driving dog,
Arbor for internal grinding (UG),
Grinding wheel dresser,
Wheel balancing arbor,
Open type steady rest,
Dead centers,
Frequency inverter,
Coolant system,
Work lamp,
Leveling wedge,
Operation manual (English edition).
OPTIONAL ACCESSORIES:
Wheel balancing stand, Radius dresser,
Close type center rest,
Digital readout,
Paper filter,
Magnetic separator.
Close type center rest,
Digital readout,
Paper filter,
Magnetic separator.
