Customized Voltage CNC Universal Cylindrical Grinding Machine for Precision Grinding
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO ,CE, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $120,000.00/sets 1-2 sets |
| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Voltage: | As Customers' Request | Dimension(L*W*H): | As Model |
| Type: | Cylindrical Grinding Machine | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| CNC Cylindrical Grinding Machine: | CNC External Grinding Machine | Max. Grinding Length: | 500/750mm, 1000/1500mm |
| Max. Grinding Diameter: | 200mm, 320mm | Power: | As Table |
| Weight: | As Table | Port: | China Port |
Product Description

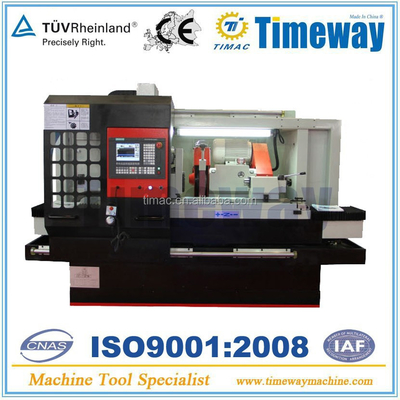

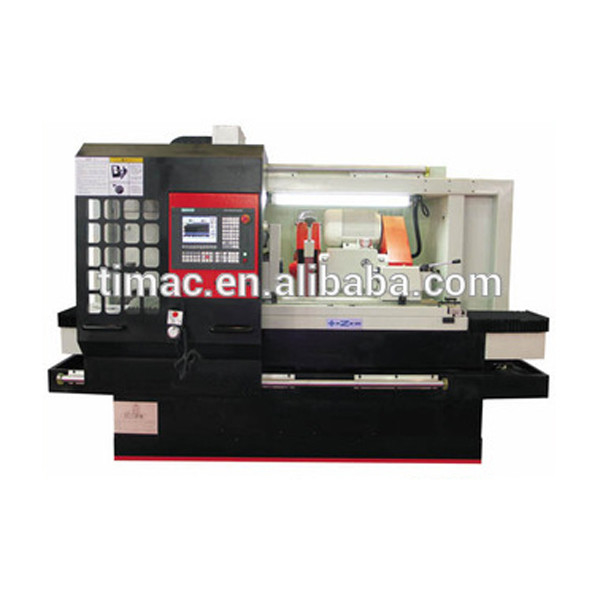

CNC Universal Cylindrical Grinding Machine
Models:
* CNC External Grinding: GK-200 x 500, GK-200 x 750;
GK-320 x 1000, GK-320 x 1500;
* CNC External & Internal Grinding: UGK-200 x 500, UGK-200 x 750;
UGK-320 x 1000, UGK-320 x 1500;
Application:
1.IT6-IT7 grade cylinder or cone revolution body, for batch production of automobile, motorcycle, weave and printing industry.
2.Highlights: special system made in china, easy to program, low cost, besides manual loading and unloading operation, can automatically finish automatic grinding procedure, especially for big batch of shaft grinding requirement, with extreme high performance cost.
Features:
1.This CNC exteral cylindrical grinding machine is economic one, perfect overview, high performance -cost, suitable for medium batch of simple workpiece.
2.The machine layout is: table moving T-type, table longitudinal movement as Z-axis, grinding wheel cross movement as X-axis, the above two axes adopts servo motor and ball-screw.
3. Lubrication system adopts intermittent and central lubricating method, the control system can control the oil supply, the lubricant can renew after precipitation. work-head adopts dead center, use manual way to clamp and loosen workpiece, the clamping pressure can be adjusted according to spring compress, four-sheet shell hydro-dynamic spindle is with high rigidity and accuracy.
4.The machine bed casting is with a cam for semi-closed cover, put an end for water seepage and leakage, use CNC program to realize automatic grinding to meet most of medium and small workpiece processing requirement, and it is better way to replace traditional manual operating one, reduce requirement for operator, and one operator can operate more than one machine, improve working efficiency.
