Well designed control panel with two-way rotate structure, make the operator getting suitable working position very easy, improve work efficiency.
 |

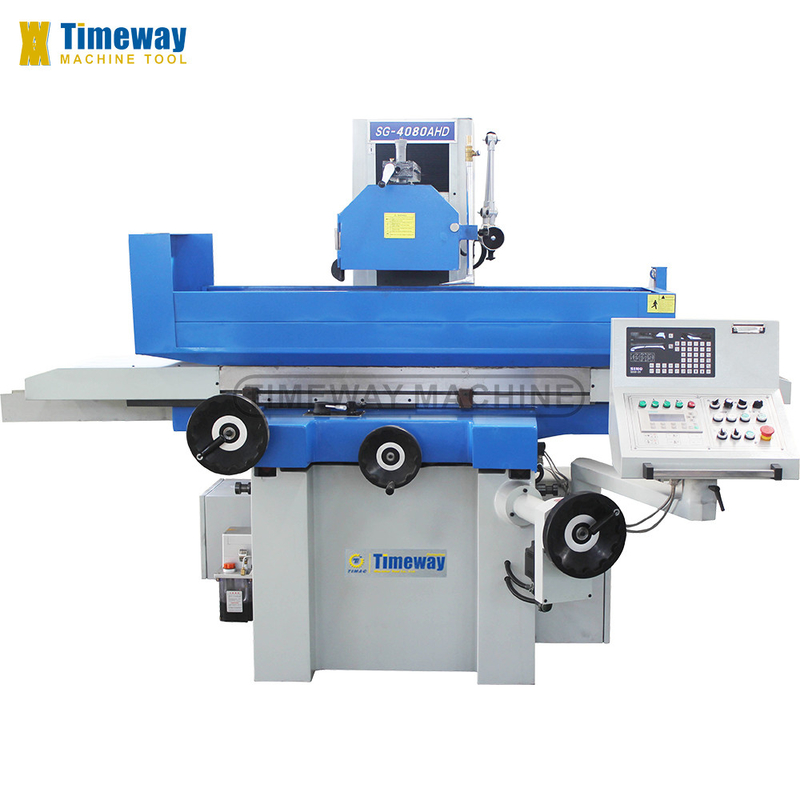

Hydraulic Surface Grinder Retifica Plana Hidraulica SG-40800AHD in Blue and White
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | CE; ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,565.00/sets 1-2 sets |

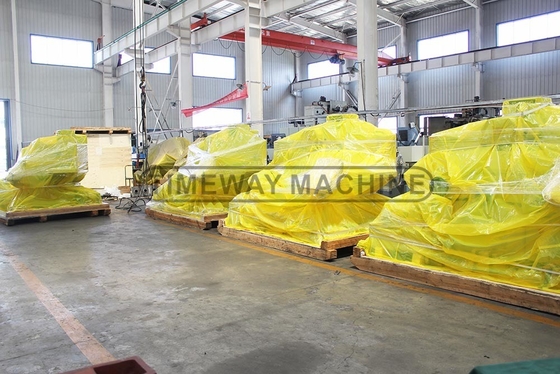

| Packaging Details: | Wooden pallets & plastic cover |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Surface Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Wheel Size(mm): | 350x40x127 |
| Year: | 2021 | Voltage: | As Per Customer's Request |
| Dimension(L*W*H): | 2850*2270*2180mm | Weight (KG): | 3400 |
| Power (kW): | 4 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | UAE, France, Mexico, Russia, Malaysia, United States, United Kingdom |
| Applicable Industries: | Manufacturing Plant | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Free Spare Parts | Retifica Plana Hidraulica: | Blue And White |
| After Warranty Service: | Online Support | Local Service Location: | South Korea, India, Pakistan, Indonesia, United States |
| Port: | Qingdao Port | ||
Product Description
Products Description
* SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement
driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by
manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement
driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by
manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
Specification | Unit | SG-30100AH SG-30100AHR SG-30100AHD | SG-4080AH SG-4080AHR SG-4080AHD | SG-40100AH SG-40100AHR SG-40100AHD |
Table size | mm | 305x1020 | 406x813 | 406x1020 |
Electro magnetic chuck size | mm | 300x1000 | 400x800 | 400x1000 |
Distance from spindle to table | mm | 580 | 580 | 580 |
Table cross travel | mm | 340 | 450 | 450 |
Table longitudinal travel | mm | 1130 | 910 | 1130 |
Loading capacity (include chuck) | kg | 400 | 500 | 600 |
Longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 | 0.1-8 | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 | 990 | 990 |
Table cross feed of handwheel | mm/gra | 0.02 | 0.02 | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; | AH: -; AHR: -; AHD: 0.005-0.5; | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; | AH: -; AHR: 650; AHD: 480; | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 1450/1750 | 1450/1750 | 1450/1750 |
Grinding wheel size | mm | 350x40x127 | 350x40x127 | 350x40x127 |
Main motor power | kw | 4 | 4 | 4 |
Machine dimensions (LxWxH) | cm | 440x220x190 | 360x240x190 | 440x240x190 |
Package dimensions (LxWxH) | cm | 295x222x221 | 285x227x221 | 295x227x221 |
Machine weight | kg | 3200 | 3400 | 3700 |
· Electronic handwheel · Closed safe guard · Working lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication systemTool box&tools | · Diamond pen · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter |
High rigidity one-piece stand adopts high quality casting iron for ensuring stability and performance of whole machine.
The AHD series grinder is standard equipped with auto down feed servo motor, and controlled by PLC, HMI and touch screen with built-in
program. It is so easy to realize auto grinding.
program. It is so easy to realize auto grinding.
Double walled column construction, provide high rigid support to the grinding spindle.
Closed steel guard is equipped for protecting spindle motor and guideway, which make the column safe and beautiful.The guideway is coated with
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
The worktable is driven by
imported hydraulic valve unit,
realize smoothly motion without
shocking.
imported hydraulic valve unit,
realize smoothly motion without
shocking.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
