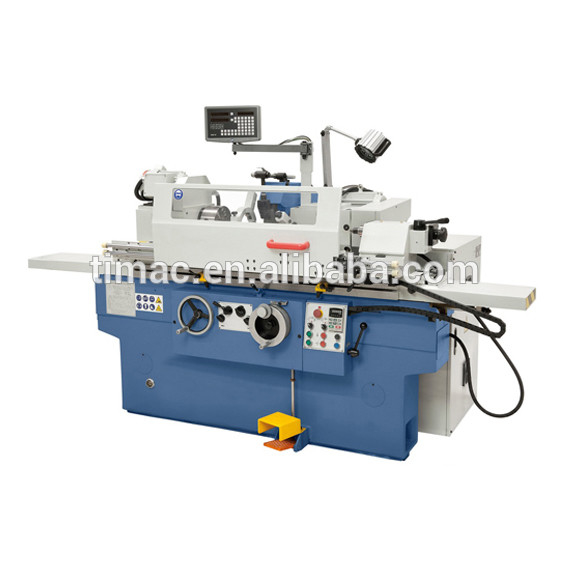

5.625kW Power UG-200H Cylindrical Grinder for Precision Grinding of Machine Tools
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO9001, CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |
| Packaging Details: | Veneer pallets & plastic cover (fumigated) |
| Supply Ability: | 75 Set/Sets per Month |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 200 | Grinding Diameter(Inner)(mm): | 100 |
|---|---|---|---|
| Grinding Length(mm): | 500 | Max. Length Of Workpiece (mm): | 950 |
| Max. Weight Of Workpiece(kg): | 50 | Center Height (mm): | 135 |
| Surface Roughness(μm): | 0.63 | Year: | Latest Day |
| Voltage: | As Per Customer's Request | Dimension(L*W*H): | 2500*1600*1500mm |
| Weight (KG): | 2500 | Power (kW): | 5.625 |
| Key Selling Points: | High Productivity | Warranty: | 1 Year |
| Showroom Location: | Indonesia, Argentina, Germany, Australia, South Africa, Russia, Malaysia, Turkey, Uzbekistan, Chile | Applicable Industries: | Farms, Manufacturing Plant, Construction Works , Machinery Repair Shops, Building Material Shops, Advertising Company |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Gear, Other | Condition: | New |
| CNC Or Not: | Normal | Type: | Cylindrical Grinding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Cylindrical Grinding Machine: | Machine Tools |
| Max. Grinding Length: | 500/800mm | External Grinding Diameters: | 8~200 |
| Power: | 5.5kw | Weight: | 2500KG |
| Warranty Period: | 1 Year | Internal Grinding Diameters: | 13-100 |
| Port: | Shanghai Port | ||
Product Description
Product Description
Specification
Model | unit | UG-200H/500 | UG-200H/800 | |||
External grinding diameters | mm | φ8~200 | φ8~200 | |||

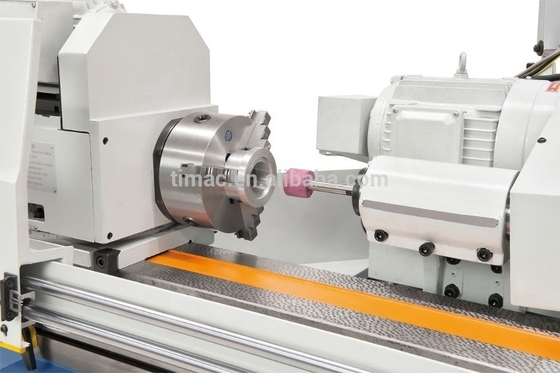

Internal grinding diameters | mm | φ13~100 | φ13~100 | |||
Center height | mm | 135 | 135 | |||
Headstock spindle rotation speed | r/min | 50HZ:25~380stepless | 50HZ:25~380stepless | |||
Max. worktable traverse | mm | 650 | 950 | |||
Hydraulic travel speed | m/min | 0.1~4 | 0.1~4 | |||
Max.workpiece weight | kg | 50 | 50 | |||
Grinding length External/Internal | mm | 500/125 | 800/125 | |||

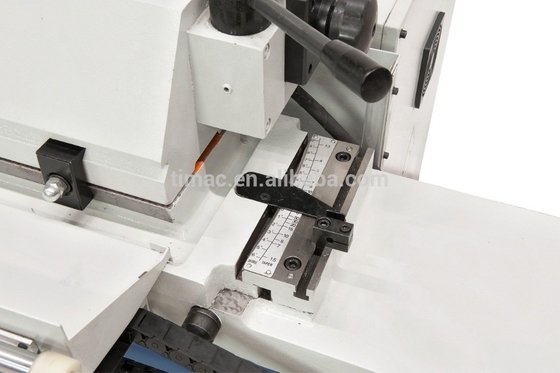

Swivel range of worktable | ° | -5~+9° | -3~+7° | |||
Max.wheel peripheral speed | m/s | 38 | 38 | |||
External wheel size | mm | Max.φ400x50xφ203 Minφ280x50xφ203 | ||||
Internal wheel spindle rotating-speed | r/min | 20000 | 20000 | |||

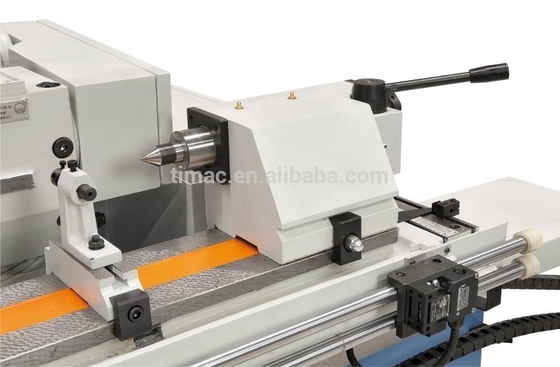

Headstock and tailstock center | morse | NO.4 | NO.4 | |||
Total motor power | kw | 5.625 | 5.625 | |||
Machine overall dimension(LxWxH) | mm | 2500x1600x1500 | 3000x1600x1500 | |||
Machine weight | kg | 2500 | 3000 | |||
Working Accuracy | ||||||
Roundness(O.D/I.D) | 1.5/2.5μm(O.D/I.D) | |||||
Uniformity of dia.in longitudinal section(O.D/I.D) | 5/8μm(O.D/I.D) | |||||
Surface roughness(O.D/I.D) | Ra0.32/0.63μm(O.D/I.D) | |||||
Packing & Delivery
Company Video
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
