Hydraulic Surface Grinding Machine Saddle Moving Type for 560mm Max. Grinding Length
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ce |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,000.00/sets 1-2 sets |

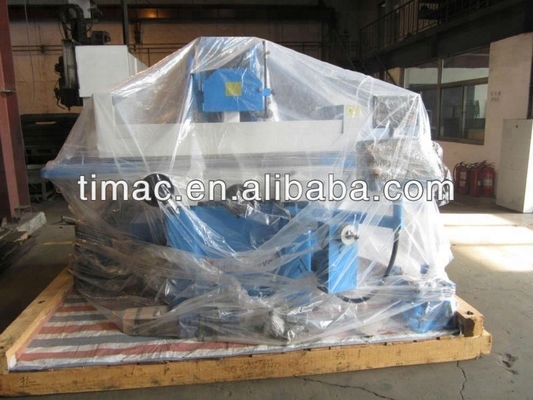

| Packaging Details: | wooden case / pallet |
| Supply Ability: | 1000 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | Normal | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 508 | Wheel Size(mm): | 200 |
| Surface Roughness(μm): | 0.4 μm | Table Size(mm): | 200X508 |
| Table Travel (X) (mm): | 508 | Year: | 2021 |
| Voltage: | According To Customer Requirements | Dimension(L*W*H): | 2300x1600x1680mm |
| Weight (KG): | 1650 | Power (kW): | 2.2 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Indonesia, Japan, Australia, Morocco, United Kingdom, United States | Marketing Type: | Hot Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing |
| Applicable Industries: | Manufacturing Plant | Type: | Surface Grinding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas, Online Support, Video Technical Support | Hydraulic Surface Grinding Machine: | High Precision Surface Grinding Machine |
| Max. Grinding Length: | 560mm | Max. Grinding Diameter: | 400mm |
| Weight: | 1650kg | After Warranty Service: | Online Support |
| Local Service Location: | Malaysia, United Kingdom, United States, Canada | Port: | China Port |
Product Description
Products Description
* SG series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement
driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by
manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).
* SG-AH: auto feed on cross, hydraulic transmission on longitudinal, manual on vertical.
* SG-AHR: auto feed on cross, hydraulic transmission on longitudinal, rapid movement on vertical.
* SG-AHD: auto feed on cross, hydraulic transmission on longitudinal, auto feed on vertical.
* Well designed perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement
driven by AC motor, work table make reversing movement driven by hydraulic, and spindle make elevating movement and is driven by
manual (AH series), AC motor (AHR series), or AC servo motor (AHD series).

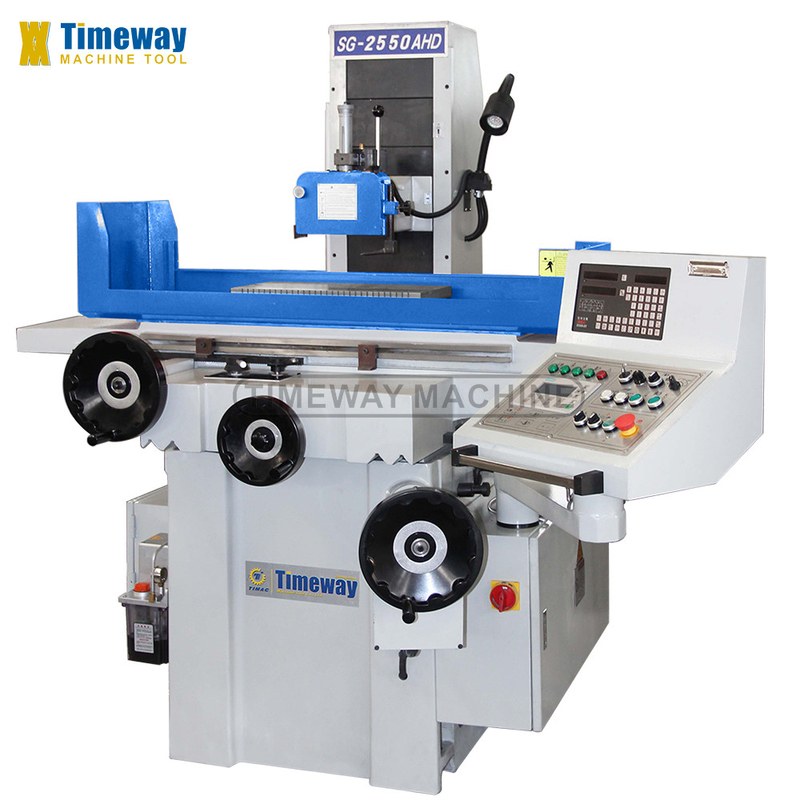

Specification | Unit | SG-2050AH SG-2050AHR SG-2050AHD | SG-2550AH SG-2550AHR SG-2550AHD |
Table size | mm | 200x508 | 254x508 |
Electro magnetic chuck size | mm | 200x460 | 250x500 |
Distance from spindle to table | mm | 450 | 450 |
Table cross travel | mm | 240 | 275 |
Table longitudinal travel | mm | 560 | 560 |
Loading capacity (include chuck) | kg | 180 | 180 |
Longitudinal feed speed | m/min | 5-25 | 5-25 |
Table cross intermittent feed rate | mm/str | 0.1-8 | 0.1-8 |
Table cross rapid feed speed | mm/min | 990 | 990 |
Table cross feed of handwheel | mm/gra | 0.02 | 0.02 |
Wheelhead vertical intermittent feed rate | mm/str | AH: -; AHR: -; AHD: 0.005-0.5; | AH: -; AHR: -; AHD: 0.005-0.5; |
Wheelhead vertical rapid feed speed | mm/min | AH: -; AHR: 650; AHD: 480; | AH: -; AHR: 650; AHD: 480; |
Wheelhead vertical feed of handwheel | mm/gra | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 2850/3450 | 2850/3450 |
Grinding wheel size | mm | 200x20x31.75 | 200x20x31.75 |
Main motor power | kw | 2.2 | 2.2 |
Machine dimensions (LxWxH) | cm | 230x160x168 | 230x160x168 |
Package dimensions (LxWxH) | cm | 200x210x215 | 200x210x215 |
Machine weight | kg | 1650 | 1800 |
· Electronic handwheel · Closed safe guard · Working lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication systemTool box&tools | · Diamond pen · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter |
The guideway is coated with
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
Turcite and precision hand
scraped, move smoothly and
keep the accuracy long life.
The worktable is driven by
imported hydraulic valve unit,
realize smoothly motion without
shocking.
imported hydraulic valve unit,
realize smoothly motion without
shocking.
Safe and reliable electrical control, safety interlocking protection system, be designed according to CE tension electric requirement.
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
