Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
15kw Universal Cylindrical Grinding Machine for Versatile Applications
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO, CE, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $76,000.00/sets 1-1 sets |
| Packaging Details: | wooden case / pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Universal, Cylindrical Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2022 |
| Voltage: | 220/380V | Dimension(L*W*H): | As Table |
| Weight (KG): | 10000 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Mexico, South Korea, Canada, United States, United Kingdom |
| Applicable Industries: | Manufacturing Plant | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, Other, Pump |
| After-sales Service Provided: | Online Support | Universal Grinding Machine: | External And Internal Grinding Machine |
| Max. Grinding Length: | 1500/2000/3000/4000mm | Max. Grinding Diameter: | 500mm |
| Power: | 15kw | Warranty Period: | 1 Year |
| Function: | Grinding Material | Color: | Customized Optional |
| Port: | China Seaport | ||
Product Description
Product Description

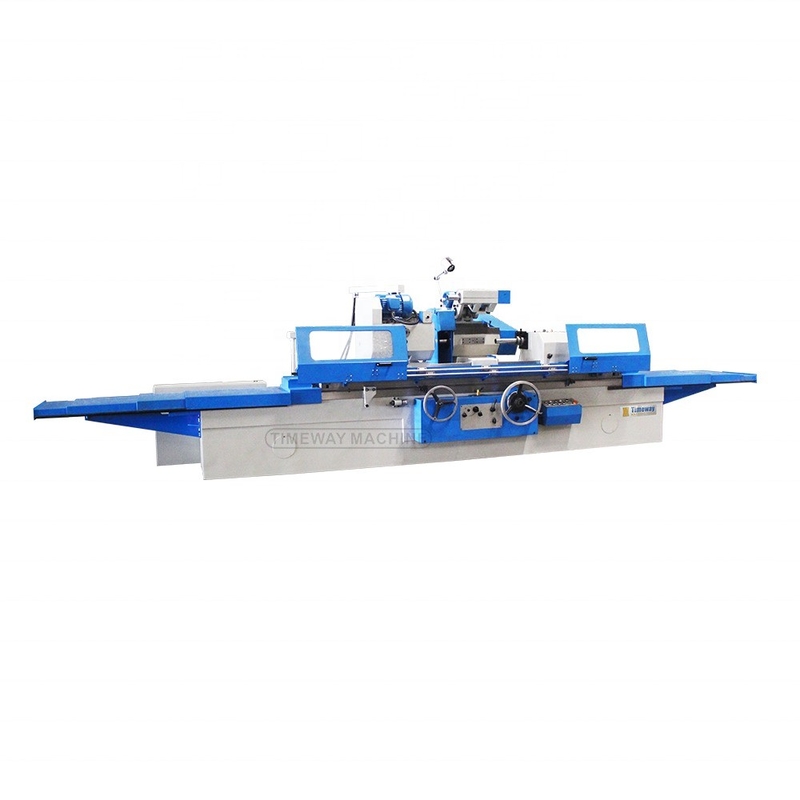

Universal Cylindrical Grinding Machine
Specification
Specification | Unit | G-500 | UG-500 | ||
General capacity | Distance between centers | mm | 1500, 2000, 3000, 4000 | ||
Centre heigh | mm | 270 | |||
Dia.Ground(O.D) | mm | 25~500 | |||
Dia.Ground(I.D) | mm | - | 30~200 | ||
Max.length ground(O.D) | mm | 1500, 2000, 3000, 4000 | |||
Max.length ground(I.D) | mm | - | 320 | ||
Max weight of work piece | kg | 1000 | |||
Motor | Wheel-head motor power | Kw | 15 | 5/7.5 | |
Internal grinding | Kw | - | 1.5 | ||
Power of work-head motor | Kw | 4 | |||
Machine | Gross weight | Kg | 11200, 13000, 17400, 20000 | ||
Packing dimension | cm | 510x228x210, 585x228x210, 7850x228x210, 1000x228x210 | |||
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
