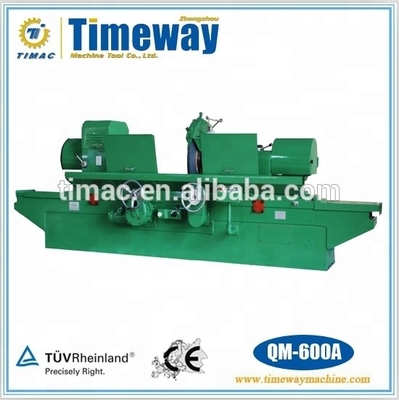

CE Approved 2020 6000 kg Crankshaft Grinding Machine / Crankshaft Grinder QM-600A
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE & ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets 1-2 sets |
| Packaging Details: | wooden case (can be fumigated) , in plywood case or pallet |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Crankshaft Grinding Machine | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Year: | 2020 |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 4166*2037*1584mm |
| Weight (KG): | 6000 | Power (kW): | 9.82 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | Kenya, Australia, South Africa, Egypt, Canada, Colombia, Peru, Thailand, Tajikistan, Pakistan, Philippines | Applicable Industries: | Farms, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops, Garment Shops |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump | Machine Name: | Small Crankshaft Grinding Machine |
| Max. Grinding Length: | 1600/1800/2000 | Power(W): | 9.82 Kw |
| Max. Grinding Diameter: | 580 Mm | Weight: | 6000 Kg |
| After-sales Service Provided: | Online Support | Port: | China Port |
Product Description

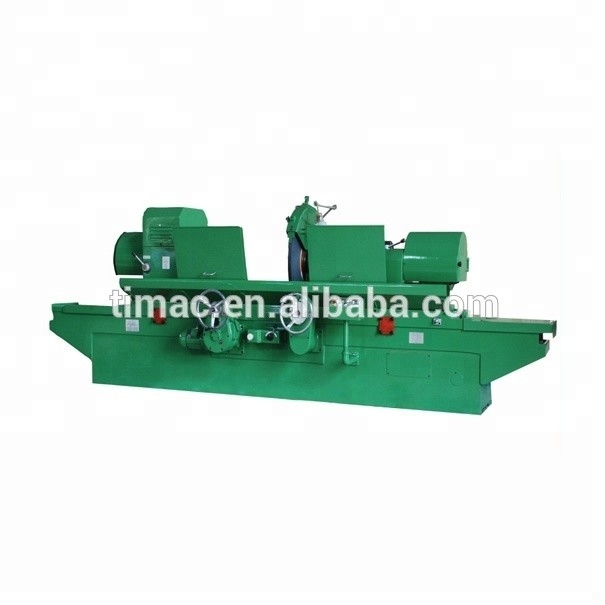

QM series Small Crankshaft Grinding Machine / Crankshaft
Grinder ( QM-600A )
Features:
This machine is used in the automobile, tractor, diesel engine works and their repairing shops to grind
both crankshaft journals and crankshaft arms.
1. Flexible belt drive for speed change - 3 speeds of work spindle obtainable;
2. Two types of chucks on headstock and tailstock - called union chuck and cross chuck, provided for users to
select according to their own preference;
3. Friction clutch used in the headstock transmission chain for easy adjustment;
4. Table traverse operated both by hand and by power;
5. Rapid approach & withdrawal of wheel carriage effected by hydraulic means;
6. The wheel spindle being 80mm in diameter has good rigidity and strength;
7. Rolling guideways employed for movement of wheel carriage;
8. Table and wheel carriage lubricated automatically by oil pump circulation;
9. A digital device for cross feed display, and a hydrostatic & dynamic wheel spindle available as optional elements
Parameter:
| Specification | Unit | QM-600Ax16 | QM-600Ax18 | QM-600Ax20 |
| Max. work swing dia. × Max. length | mm | φ580×1600 | φ580×1800 | φ580×2000 |
| Max. swing over table | mm | 580 | 580 | 580 |
| Work dia. ground with steady rest | mm | φ30~φ100 | φ30~φ100 | φ50~φ120 |
| Throw of crankshaft | mm | 110 | 110 | 120 |
| Max. work length ground: in 3-jaw chuck | mm | 1400 | 1600 | 1800 |
| between centers | mm | 1600 | 1800 | 2000 |
| Max. work weight | kg | 120 | 120 | 150 |
| Center height | mm | 300 | 300 | 300 |
| Work speed | r/min | 25, 45, 95 | 25, 45, 95 | 30, 45, 65, 100 |
| Max. cross movement | mm | 185 | 185 | 185 |
| Wheel-head rapid approach & withdrawal | mm | 100 | 100 | 100 |
| per grad of cross feed handwheel | mm | - | - | - |
| Wheel feed per turn of cross feed handwheel | mm | 0.005 | 0.005 | 0.005 |
| Wheel spindle speed | r/min | 740, 890 | 740, 890 | 740, 890 |
| Wheel peripheral speed | m/sec | 25.6~35 | 25.6~35 | 25.6~35 |
| Wheel size | mm | φ900×32×φ305 | φ900×32×φ305 | φ900x32xφ305 |
| Table travel per turn of handwheel coarse | mm | 5.88 | 5.88 | 5.88 |
| fine | mm | 1.68 | 1.68 | 1.68 |
| Table swivel(taper 18/100) | degree | 5°, taper 9/100 | 5°, taper 9/100 | 5°, taper 9/100 |
| Table swivel per grad of scale(taper 1:50) | 1°, taper 1/100 | 1°, taper 1/100 | 1°, taper 1/100 | |
| Overall capacity of motors | kw | 9.82 | 9.82 | 11.12 |
| Overall dimensions(LxWxH) | mm | 4166x2037x1584 | 4166x2037x1584 | 4900x2037x1584 |
| Weight | kg | 6000 | 6200 | 7000 |
| Ovality(new standard) | mm | 0.005 | 0.005 | 0.005 |
| Cylindricity | mm | 0.01 | 0.01 | 0.01 |
| Roughness Ra | um | 0.32 | 0.32 | 0.32 |
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: 1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
2) Irrevocable LC at sight;
3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
