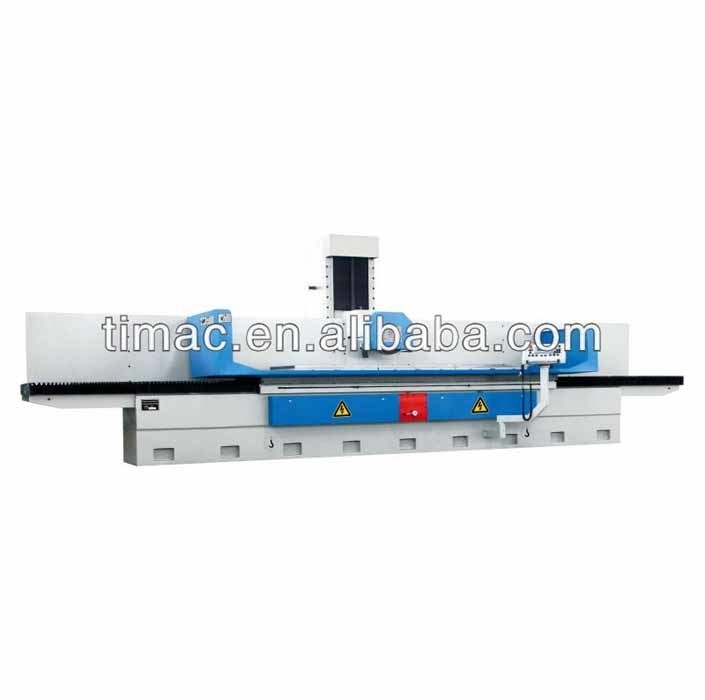

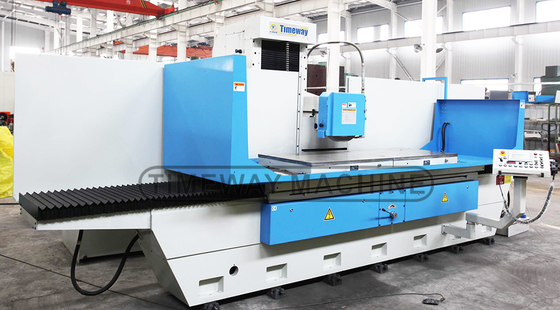

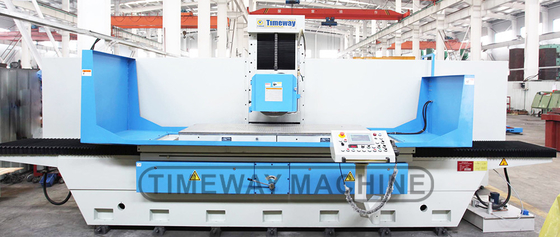

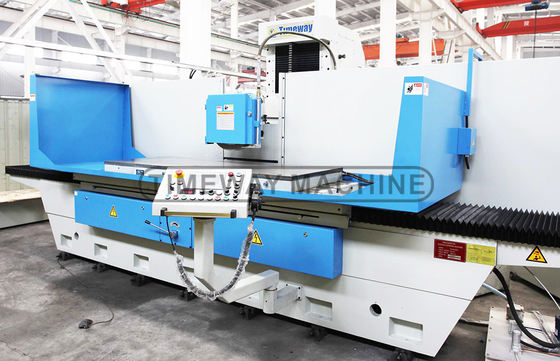

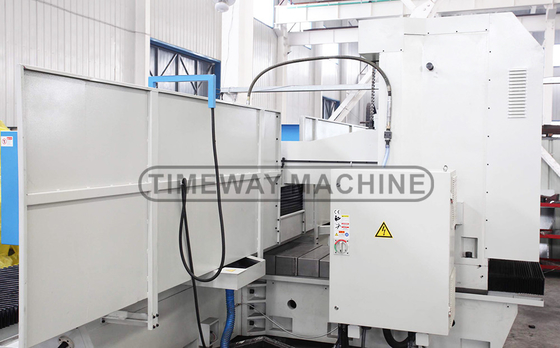

11500KG Capacity CNC Surface Grinding Machine with Special Design and 810x2200mm Size
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-2 sets |

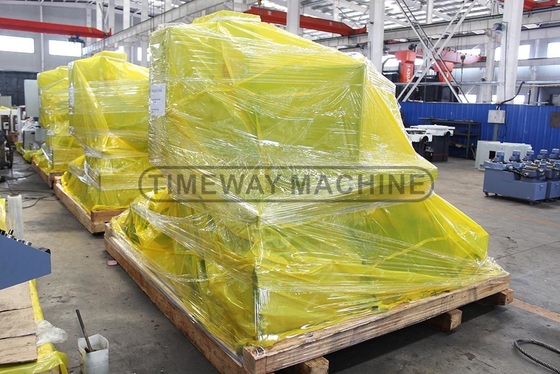

| Packaging Details: | wooden case or plywood case |
| Supply Ability: | 100 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 2200 | Surface Roughness(μm): | 0.16 μm |
| Table Size(mm): | 810X2200 | Year: | 2021 |
| Dimension(L*W*H): | 6000x3500x2700mm | Weight (KG): | 12500 |
| Power (kW): | 34 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Australia, South Africa, Russia, Philippines |
| Marketing Type: | Hot Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Motor, Bearing, Gearbox, Engine, PLC | Applicable Industries: | Manufacturing Plant, Retail, Machinery Repair Shops |
| Type: | Surface Grinding Machine | PLC Column Moving Surface Grinder: | Large Sized Surface Grinding Machine |
| Max. Grinding Length: | 2200mm | Max. Grinding Diameter: | 810mm |
| Power: | 28.5KW | Weight: | 11500KG |
| After-sales Service Provided: | Online Support | After Warranty Service: | Online Support |
| Port: | China Port | ||
Product Description
Products Description
* Double walled column construction, providing high rigid support. Adopt counterweight balance, making the machine moving stably, and reducing the load of the ball screw, keeping the accuracy for long time.
* High rigidity rectangular guideway is designed on vertical motion, and coat with Turcite-B belt, to get low fricion coefficien.
* Adopt the Flat-V type guideway on longitudinal and transverse to set good guidance quality, precision scraping to keep stable work accuracy by hand.
* The independent and large capacity integrated hydraulic station equipped with air cooling and pressurizer, isolate heat and vibroseis, to provide excellent power for precision grinding.
* The transverse and vertical movement are driven by AC servo motor, and the electronic hand
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation. * The wheelhead spindle use the hydrostatic bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear, ensure the high precision and long life span.
wheel(MPG) instead of the tradition mechanical hand wheel, to get high accuracy and easy operation. * The wheelhead spindle use the hydrostatic bearing with high rigidity(high precision ball bearing for export), which can provide the power force together with 18.5kw motor, suitable for the heavy machining. The spindle rotary is supported by rigidity oil layer without wear, ensure the high precision and long life span.
* Adopt SIEMENS 7 inch LCD-TFT colourful touch screen, built in program of our engineer's genius
designation to make the operation very simple and convenient for the opeator.
designation to make the operation very simple and convenient for the opeator.
* Well designed machine bed is one high grade casting iron, which ensure heavy duty cutting.
* Strengthen ribs are set inside of the rear slide base, make sure great stability support for spindle.
* Super great power spindle unit is most important to the machine. It is really an elaboration under well designed, and our ultimate goal is to balance high rigidity and great accuracy.
* The machine bed and rear slide bed are assembled to one piece,to supply super strong base for efficient working.
Specification | Unit | SG-81160FR | SG-81220FR | SG-81300FR | SG-81400FR |
Table size | mm | 810x1600 | 810x2200 | 810x3000 | 810x4000 |
Grinding area | mm | 810x1600 | 810x2200 | 810x3000 | 810x4000 |
Grinding height | mm | 670(830/1000) | 670(830/1000) | 670(830/1000) | 670(830/1000) |
Electro magnetic chuck size (pcs.) | mm | 800x800x2 | 800x1000x2 | 800x1000x3 | 800x1000x4 |
Loading capacity (include chuck) | kg | 2000 | 2400 | 3500 | 4000 |
Table longitudinal feed speed | m/min | 5-25 | 5-25 | 5-25 | 5-25 |
Column cross intermittent feed rate | mm/str | 1-30 | 1-30 | 1-30 | 1-30 |
Column cross continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 | 50-2000 |
Column cross feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 | 0.005 |
Wheelhead vertical intermittent feed rate | mm/str | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 | 0.005-0.05 |
Wheelhead vertical continuous feed speed | mm/min | 50-2000 | 50-2000 | 50-2000 | 50-2000 |
Wheelhead vertical feed rate (MPG) | mm/gra | 0.005 | 0.005 | 0.005 | 0.005 |
Spindle speed (50/60HZ) | rpm | 960/1150 (OP: 1450) | 960/1150 (OP: 1450) | 960/1150 (OP: 1450) | 960/1150 (OP: 1450) |
Grinding wheel size | mm | Φ500x75xΦ203 | Φ500x75xΦ203 | Φ500x75xΦ203 | Φ500x75xΦ203 |
Main motor power | kw | 18.5 | 18.5 | 18.5 | 18.5 |
Hydraulic motor power | kw | 5.5 | 7.5 | 7.5 | 7.5 |
Y/Z-axis servo motor power | kw | 3 | 3 | 3 | 3 |
Total power | kw | 32 | 34 | 34 | 34 |
Machine dimensions (LxWxH) | mm | 4800x4000x2600 | 6000x4000x2600 | 8200x4000x2600 | 10200x4000x2600 |
Machine weight | kg | 10500 | 12500 | 14000 | 15000 |
- PLC+SMART auto. grinding controller - Coolant tank - Work lamp - Balancing arbor - Wheel flange and extractor - Wheel dresser stand - Y/Z axis electrical wheel(MPG) - Operation manual (English edition) - Splashing guard - Standard grinding wheel - Leveling wedge and boltd - Tools & tool-box - Operation manual(English edition) | - Balancing stand - Magnetic separator - Paper filter - Oil tank guard - Electrical magnetic chuck - Built-in magnetic chuck controller - Parallel wheel dresser - 2 axis digital readout - Extra wheel flange |
