Home CNC Grinder / Siemen CNC Cylindrical Grinding Machine for and Customized Voltage
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets >=1 sets |
| Packaging Details: | in wooden case (can be fumigated) or in plywood case |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal, Cylindrical Grinding Machine | CNC Or Not: | CNC |
|---|---|---|---|
| Condition: | New | Year: | Latest Day |
| Voltage: | As Customer's Request | Dimension(L*W*H): | 2600mm*2060mm*2050mm |
| Weight (KG): | 4000 | Warranty: | 1 Year |
| Key Selling Points: | High Productivity | Showroom Location: | France, Kenya, Spain, South Korea, Egypt, Malaysia, Canada, Kyrgyzstan, Colombia, Nigeria, Saudi Arabia, Bangladesh, Sri Lanka, Indonesia, Germany |
| Applicable Industries: | Farms, Manufacturing Plant, Home Use, Construction Works , Energy & Mining, Retail, Machinery Repair Shops, Building Material Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Engine, Gear, Pressure Vessel, Gearbox, PLC, Pump |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Name: | Siemen CNC Cylindrical Grinding Machine |
| Max. Grinding Length: | 1500mm | Power(W): | 5.5KW |
| Max. Grinding Diameter: | 320mm | Weight: | 4000kg |
| Product Name: | Cnc Cylindrical Grinder | Color: | Customized Optional |
| Key Selling Point: | Competitive Price | Port: | China Port |
Product Description

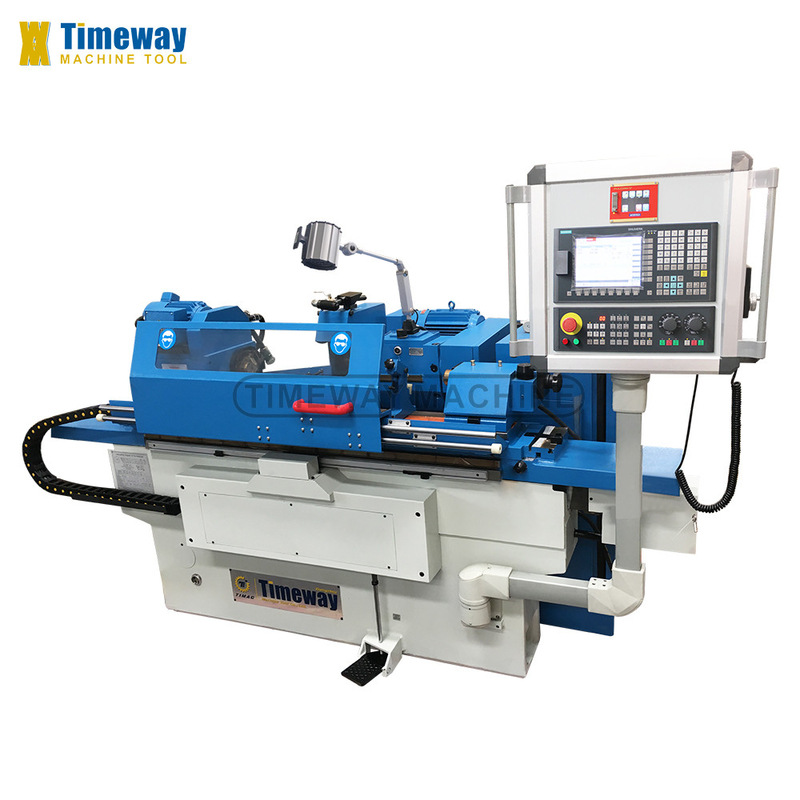

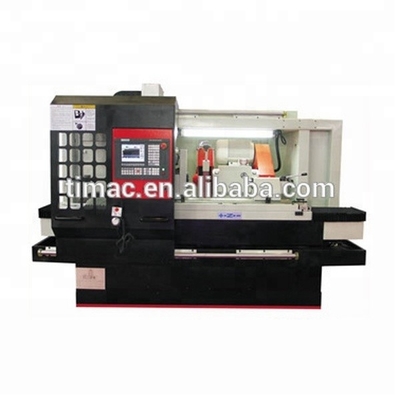

cnc cylindrical grinding machine
Standard Accessories:
Semi isolated table shield, Coolant tank, Wheel dresser, 2 points steady rest (Standard dimension), wheel flange
Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment &
delta transducer, Operation Manual (English edition).
Wheel, Wheel extractor, Wheel balancing arbor, Center points, 3-jaw chuck, Siemens electrical equipment &
delta transducer, Operation Manual (English edition).
Optional Accessories:
Full-closed safety cover, Coolant tank with magnetic separator, Coolant tank with paper filter, Machine safety
relay protection.
relay protection.
Specification

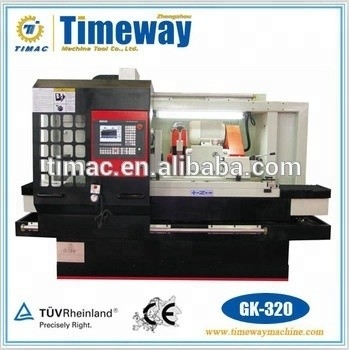

Specification | unit | GK-200 | GK-320 |
Distance between centers | mm | 500,750 | 1000 1500 |
Center height | mm | 135 | 180 |
Dia.ground(O.D) | mm | 5-200 | 8-320 |
Max.length to be ground(O.D) | mm | 500,750 | 1000 1500 |
Center taper(MT) | MT | 4 | 5 |
Spindle speed/stepless | r/min | 50HZ:25-380 | 50HZ:25-220 |
Wheel size(ODXWXID) | mm | 500×50×203 | 600×75×305 |
CNC system | Siemens SINUMERIK 808D | Siemens SINUMERIK 808D | |
Wheelhead motor power | kw | 5.5 | 11 |
Workhead motor power | kw | 1.1 | 5.5 |
Gross weight | 4(500), 4.2(750) | 5.3(1000), 6.1(1500) |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Profile
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
