Achieve Perfectly Ground Surfaces with Our Precision Cylindrical Grinding Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $49,500.00/sets >=1 sets |
| Packaging Details: | wooden case / pallet |
| Supply Ability: | 1000 Set/Sets per Year |
|
Detail Information |
|||
| Grinding Diameter(Outer)(mm): | 320 | Grinding Diameter(Inner)(mm): | 150 |
|---|---|---|---|
| Grinding Length(mm): | 3000 | Max. Length Of Workpiece (mm): | 3000 |
| Max. Weight Of Workpiece(kg): | 150 | Center Height (mm): | 180 |
| Wheel Size(mm): | 600X70x305 | Wheel Speed (rpm): | 1100 |
| Table Travel (X) (mm): | 50 | Table Travel (Y) (mm): | 235 |
| Roundness(mm): | 2/0.5 | Cylindricity (mm): | 0.01/0.0025 |
| Surface Roughness(μm): | 0.4 | Voltage: | 220/380v |
| Dimension(L*W*H): | 3220x2000x2050mm | Weight (KG): | 6000 |
| Power (kW): | 11 | Key Selling Points: | Competitive Price |
| Warranty: | 1 Year | Showroom Location: | Germany, Mexico, Russia, United States, United Kingdom |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops, Building Material Shops | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Bearing, Gearbox, Engine, Gear, Pressure Vessel, Pump, Other |
| Condition: | New | CNC Or Not: | Normal |
| Type: | Cylindrical Grinding Machine | After-sales Service Provided: | Online Support |
| Grinding Machine: | Cylindrical Grinding Machine | Universal Grinding Machine: | External Grinding Machine |
| Max. Grinding Length: | 500/750/1000/1500/2000/3000/4000/5000mm | Max.ground (O.D): | 320mm |
| Max.ground (I.D): | 150mm | Roughness Of The Surface: | 0.4μm |
| Warranty Period: | 1 Year | Port: | China Seaport |
Product Description

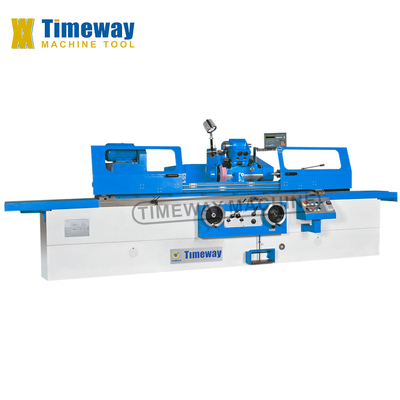

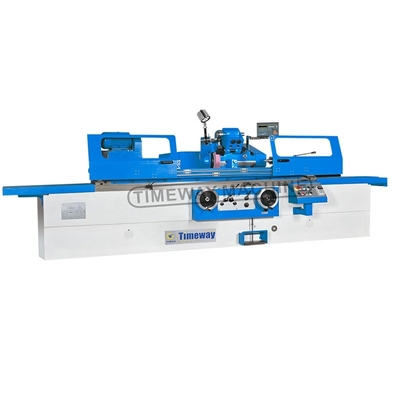

Cylindrical Grinding Machine
Model: G-200, G-320, G-500, G-630, G-800
* Grinding diameter x Grinding length:
- 200 x 500mm, 200 x 750mm;
- 320 x 1000mm, 320 x 1500mm, 320 x 2000mm, 320 x 3000mm;
- 500 x 1500mm, 500 x 2000mm, 500 x 3000mm, 500 x 4000mm;
- 630 x 2000mm, 630 x 3000mm, 630 x 4000mm, 630 x 5000mm;
- 800 x 3000mm, 800 x 4000mm, 800 x 5000mm;
Features:
* The table longitudinal traversal is actuated by hydraulic means at step lessly variable speed or operated by means of hand wheel.
* The wheel head rapid approach and withdrawal and intermittent feed are effected hydraulically,the wheel feed can also be operated by hand.
* The wheel head cross feed is driven by hydraulic, which realizes automatic periodical feed and rapid feed. It can also do rough and feed feed through hand wheel.
* The work table and wheel head guide way of the G-500, G-630 series adopt hydrostatic lubrication,its movement on low speed is smooth.
* The spindle of G-500, G-630 series is supported by hydrostatic and hydrodynamic bearings of high rigidity, it makes the spindle have high rotary accuracy and perfect rigidity.
