2-axis(Y/Z) or 3-axis(X/Y/Z) CNC control can be choosed for saddle moving grinder. SYNTEC,SIEMENS,FANUC controller are recommend.
 |

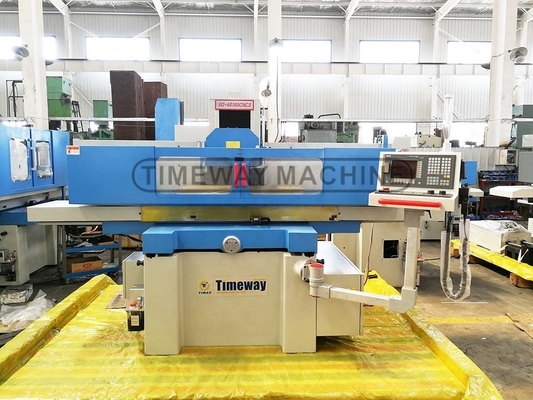

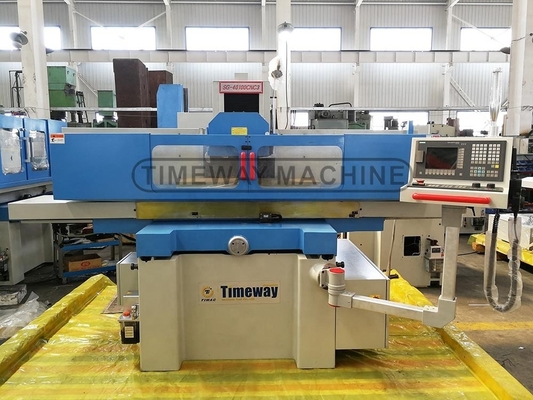

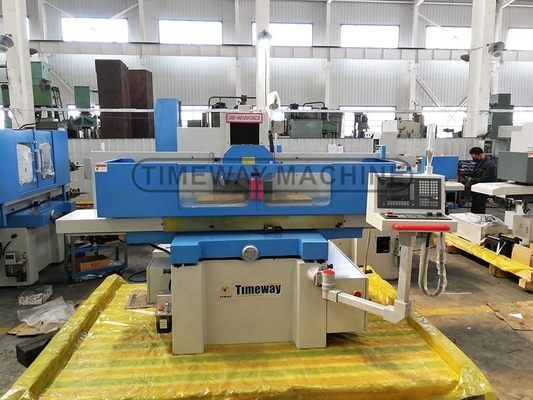

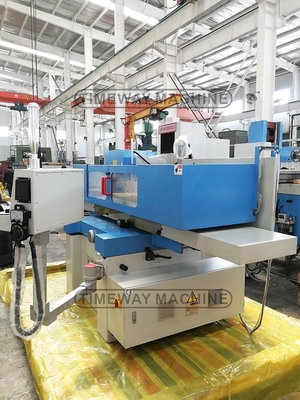

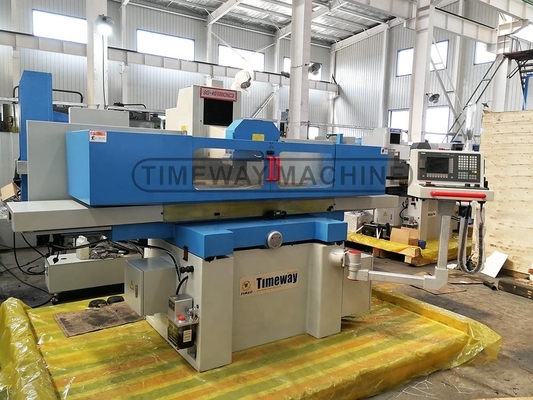

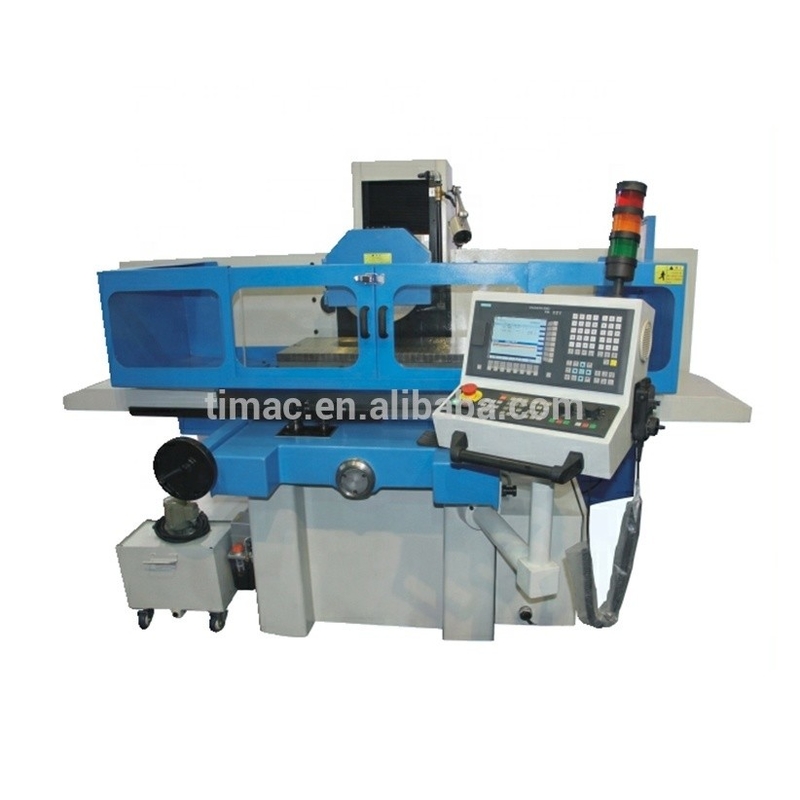

Y axis travel 238mm CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | ISO, CE, TUV |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $99,999.00/sets 1-2 sets |
| Packaging Details: | wooden case / pallet |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| CNC Or Not: | CNC | Condition: | New |
|---|---|---|---|
| Grinding Length(mm): | 460 | Surface Roughness(μm): | 0.02 μm |
| Table Size(mm): | 200x460 | Table Travel (X) (mm): | 510 |
| Table Travel (Y) (mm): | 238 | Year: | 2021 |
| Voltage: | 220/380v | Dimension(L*W*H): | 200x180x215mm |
| Weight (KG): | 1600 | Power (kW): | 1.5 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Showroom Location: | Australia, Turkey, Canada, Malaysia, Thailand, United Kingdom, Peru, Chile, United States | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, PLC |
| Applicable Industries: | Manufacturing Plant, Machinery Repair Shops | Type: | Surface Grinding Machine |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Grinding Machine: | CNC Surface Grinding Machine |
| Grinding Length: | 460mm | Power: | 1.5/2.2kw |
| Grind Wheel Size: | 200x20x31.75mm | Warranty Period: | 1 Year |
| Y Axis Travel: | 238mm | X Axis Travel: | 510mm |
| Port: | China Port | ||
Product Description
High Quality New CNC Grinding Machine Saddle Moving Type Surface Grinder Machine
Products Description
* SG-CNC series saddle moving surface grinder, the table size covers 200x500, 250x500, 300x630, 300x1000, 400x800, 400x1000.
* Welldesigned perfect symmetrical structure insure the machine is very suitable for precision grind. Saddle makes cross movement drivenby AC servo motor (Y-axis), worktable make reversing movement driven by hydraulic or servo motor (X-axis), and spindle make elevating movement (X-axis) and is driven by AC servo motor.
* SG-CNC2 model:
Y/Z-axis numberical control and linkage, drove by ACservo motor and ball screw; X-axis drove by hydraulic.
* SG-CNC3 model:
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
X/Y/Z-axis numberical control and linkage, drove by AC servo motor amd ball screw.
* Elaborately-designed closed safe guard with safety-switch, not only have good apperance but also safety operating field.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.
* Precision grind spindle with preload high precision angular ball bearing and drive V3 mtor, runs in maintenance-free, lowvibration, and no noise.
Specification | Unit | SG-2050CNC2 SG-2050CNC3 | SG-2550CNC2 SG-2550CNC3 |
Table size | mm | 200x460 | 250x500 |
Electro magnetic chuck size | mm | 200x460 | 250x500 |
Table longitudinal travel | mm | 510 | 570 |
Table cross travel | mm | 238 | 275 |
Distance from spindle to table | mm | 450 | 450 |
Loading capacity (include chuck) | kg | 120 | 200 |
Grinding wheel size | mm | 200x20x31.75 | 200x20x31.75 |
Main motor power | kw | 1.5 | 2.2 |
Floor space (LxW) | mm | 2600x1800 | 2800x2000 |
Gross weight | kg | 1600 | 1900 |
Packing size (LxWxH) | cm | 200x180x215 | 220x200x215 |
· Electronic handwheel · Closed safe guard · Working lamp · Balancing arbor · Standard grinding wheel · Electrical magnetic chuck · Built-in magnetic chuck controller · Coolant tank · Wheel flange and extractor · Wheel dresser stand · Operation manual (English) · Leveling wedge and screw · Lubrication systemTool box&tools | · Diamond pen · Extra wheel flange · Rear splashing guard · Oil tank guard · Dust exhaust · Parallel wheel dresser · Radius dresser · Angle dresser · Side dresser · Sinusoidal magnetic table · Electronic handwheel · Magnetic separator · Paper filter |
