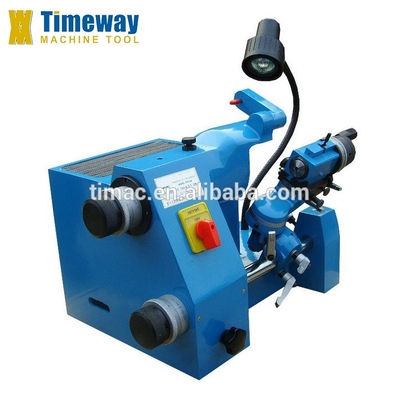

60kg Universal Tool Cutter Grinder U1 with 300w Power Output
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE, ISO9001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $400.00/sets >=1 sets |
| Packaging Details: | Canton case |
| Supply Ability: | 450 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Universal | CNC Or Not: | Normal |
|---|---|---|---|
| Condition: | New | Voltage: | 220V/110V |
| Dimension(L*W*H): | 480x390x365mm | Weight (KG): | 60 |
| Power (kW): | 0.5 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Showroom Location: | Argentina, Australia, South Africa, Russia, Malaysia, Peru, Thailand, Chile, Ukraine |
| Applicable Industries: | Farms, Construction Works , Machinery Repair Shops, Building Material Shops, Advertising Company, Garment Shops | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Motor, Gear, Other |
| Univeral Tool Grinder: | Tool Cutting Grinder | Max. Grinding Diameter: | 3-16mm |
| Power: | 300w | Weight: | 60kg |
| Warranty Period: | 1 Year | Port: | Shanghai |
Product Description

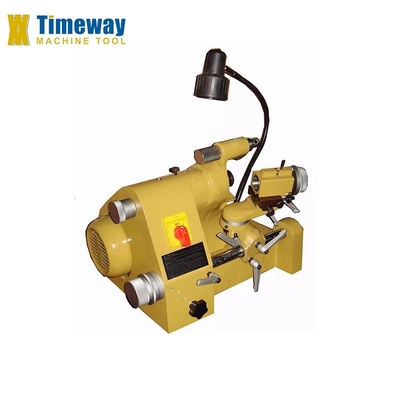

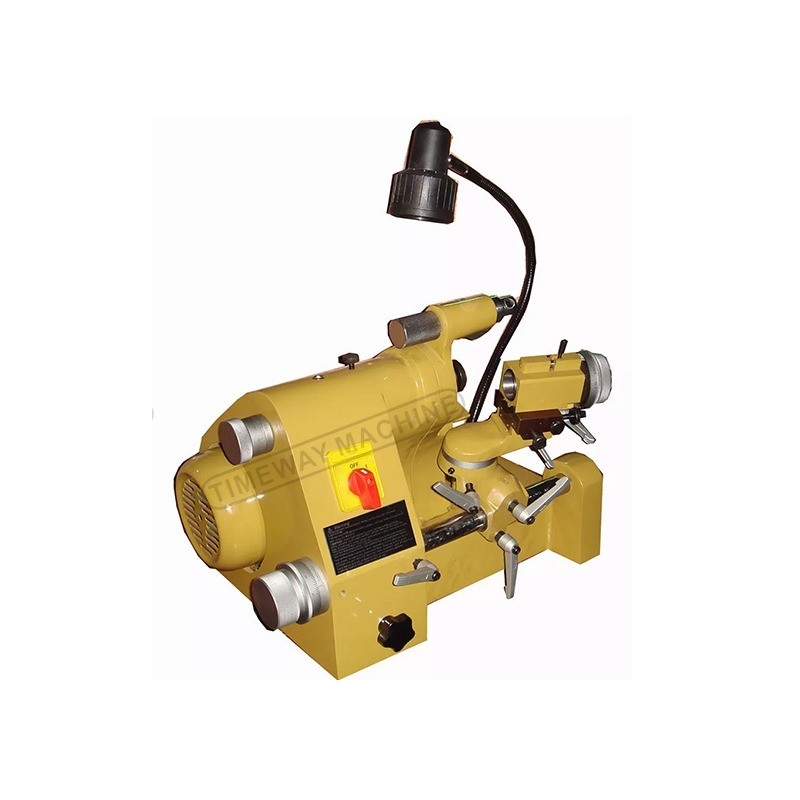

TM-20A (U1)
UNIVERSAL CUTTER GRINDER
The TM20A universal cutter grinder is a type cutter grinder which is designed for single lip engraving cutters. It can be used to grind all usual cutter shapes and angles.
| No. | Model | TM-20A (U1) | |
| 1 |
| Diameter | 100mm |
| Thickness | 50mm | ||
| Hole diameter | 20mm | ||
| 2 | Spindle speed | 5200r.p.m | |
| 3 | Collet capacity | 3-16mm | |
| 4 | Longitudinal traverse of index head carrier | 140mm | |
| 5 | Fine longitudinal adjustment travel of index head carrier | 18mm | |
| 6 | Grinding wheel move space | 6mm | |
| 7 | Taper Angle | 0-180º | |
| 8 | Negative Taper Angle | 0-52º | |
| 9 | Relief Angle | 0-44º | |
| 10 |
Motor | Power | 0.30kw |
| Speed | 2810r.p.m | ||
| Voltage Single-phase | 220V/110V, 50Hz | ||
| 11 | Gross weight | 60kg | |
| 12 | Packing size (L×W×H) | 480×390×365mm | |
Standard Accessories:
Wheel dresser with diamond 1pc
Diamond Wheel 320# 1pc
Diamond Pen 0.5 carat 1pc
Collet Φ 3,4,6mm 3pcs
Drive belt 1pc
Lamp 1pc
Magnifier 1pc
Operating Manual 1 Set
TM-30A (U2)
UNIVERSAL CUTTER GRINDER
Technical Data Standard Accessories 1
Max. Collet Capacity 25MM Wheel dresser with diamond 1pc
Max. Grinding Dia. 100MM Wheel flange(mounted) 1pc
Taper Angle 0°-180° Grinding wheel PA80#(20) 1pc
Relief Angle 0°-45° R8Collet 4,6,8,10,12 5pcs
Negative Angle 0°-26° Drive belt 1pc
Grinding Spindle 5200r.p.m. Lock pin 1pc
Cup grinding wheel 100x50x20mm Lamp 1pc
Motor Volt 220V/50Hz Tools 1set
Net Weight 45kgs Aligning finger 1pc
Machine dim. 45×40×35cm Operating Manual 1 Set
Packing dim. 55×45×47cm
| Standard Accessories 2 | ||
| | | |
| Twist Drill Grinding Attachment (1pc) | End Mill Grinding Attachment (1pc) | Lathe Tool Grinding Attachment (1pc) |
Application
This grinder is mainly use for grinding HSS and carbide engraving cutter as well as single lip or multiple lip cutters of various shapes such as radiuses cutters or negative taper angle of cutters. The universal index head is provided at 24 positions so that any particular angle of shape can be obtained, free 3600 or 100 rotation is allowed for grinding End Mills, Twist Drill, Lathe Tools, only replace the attachment to the index head without any complex setup.
